# clone ctf project
git clone https://github.com/jakespringer/angr_ctf.git

# install docker
curl -sSL https://get.docker.com/ | sudo sh

# pull the docker image
sudo docker pull angr/angr

# run it
sudo docker run -it angr/angr

# 掛在我們clolne下的ctf目錄
sudo docker run  -it    -v /root/angr_ctf/00_angr_find/:/home/angr/angr-dev/test/   angr/angr

root@HOME-X213212:~# tree angr_ctf/dist/
angr_ctf/dist/
├── 00_angr_find
├── 01_angr_avoid
├── 02_angr_find_condition
├── 03_angr_symbolic_registers
├── 04_angr_symbolic_stack
├── 05_angr_symbolic_memory
├── 06_angr_symbolic_dynamic_memory
├── 07_angr_symbolic_file
├── 08_angr_constraints
├── 09_angr_hooks
├── 10_angr_simprocedures
├── 11_angr_sim_scanf
├── 12_angr_veritesting
├── 13_angr_static_binary
├── 14_angr_shared_library
├── 15_angr_arbitrary_read
├── 16_angr_arbitrary_write
├── 17_angr_arbitrary_jump
├── lib14_angr_shared_library.so
├── scaffold00.py
├── scaffold01.py
├── scaffold02.py
├── scaffold03.py
├── scaffold04.py
├── scaffold05.py
├── scaffold06.py
├── scaffold07.py
├── scaffold08.py
├── scaffold09.py
├── scaffold10.py
├── scaffold11.py
├── scaffold12.py
├── scaffold13.py
├── scaffold14.py
├── scaffold15.py
├── scaffold16.py
└── scaffold17.py

0 directories, 37 files

-fno-pie -no-pie -fcf-protection=none

32位程序
開啟了Canary和NX，關閉了PIE ，那麼code段地址不會改變。

#!/usr/bin/env python3
import sys, random, os, tempfile, jinja2

def generate(argv):
  if len(argv) != 3:
    print('Usage: ./generate.py [seed] [output_file]')
    sys.exit()

  seed = argv[1]
  output_file = argv[2]

  random.seed(seed)
  userdef_charset = 'ABCDEFGHIJKLMNOPQRSTUVWXYZ'
  userdef = ''.join(random.choice(userdef_charset) for _ in range(8))

  template = open(os.path.join(os.path.dirname(os.path.realpath(__file__)), '00_angr_find.c.jinja'), 'r').read()
  t = jinja2.Template(template)
  c_code = t.render(userdef=userdef, len_userdef=len(userdef), description = '')

  with tempfile.NamedTemporaryFile(delete=False, suffix='.c', mode='w') as temp:
    temp.write(c_code)
    temp.seek(0)
    os.system('gcc -fno-pie -no-pie -fcf-protection=none -m32 -o ' + output_file + ' ' + temp.name)

if __name__ == '__main__':
    generate(sys.argv)

#include <stdio.h>
#include <stdlib.h>
#include <string.h>

#define USERDEF "{{ userdef }}"
#define LEN_USERDEF {{ len_userdef }}

char msg[] =
  "{{ description }}";

void print_msg() {
  printf("%s", msg);
}

int complex_function(int value, int i) {
#define LAMBDA 3
  if (!('A' <= value && value <= 'Z')) {
    printf("Try again.\n");
    exit(1);
  }
  return ((value - 'A' + (LAMBDA * i)) % ('Z' - 'A' + 1)) + 'A';
}

int main(int argc, char* argv[]) {
  char buffer[9];

  //print_msg();

  printf("Enter the password: ");
  scanf("%8s", buffer);

  for (int i=0; i<LEN_USERDEF; ++i) {
    buffer[i] = complex_function(buffer[i], i);
  }

  if (strcmp(buffer, USERDEF)) {
    printf("Try again.\n");
  } else {
    printf("Good Job.\n");
  }
}

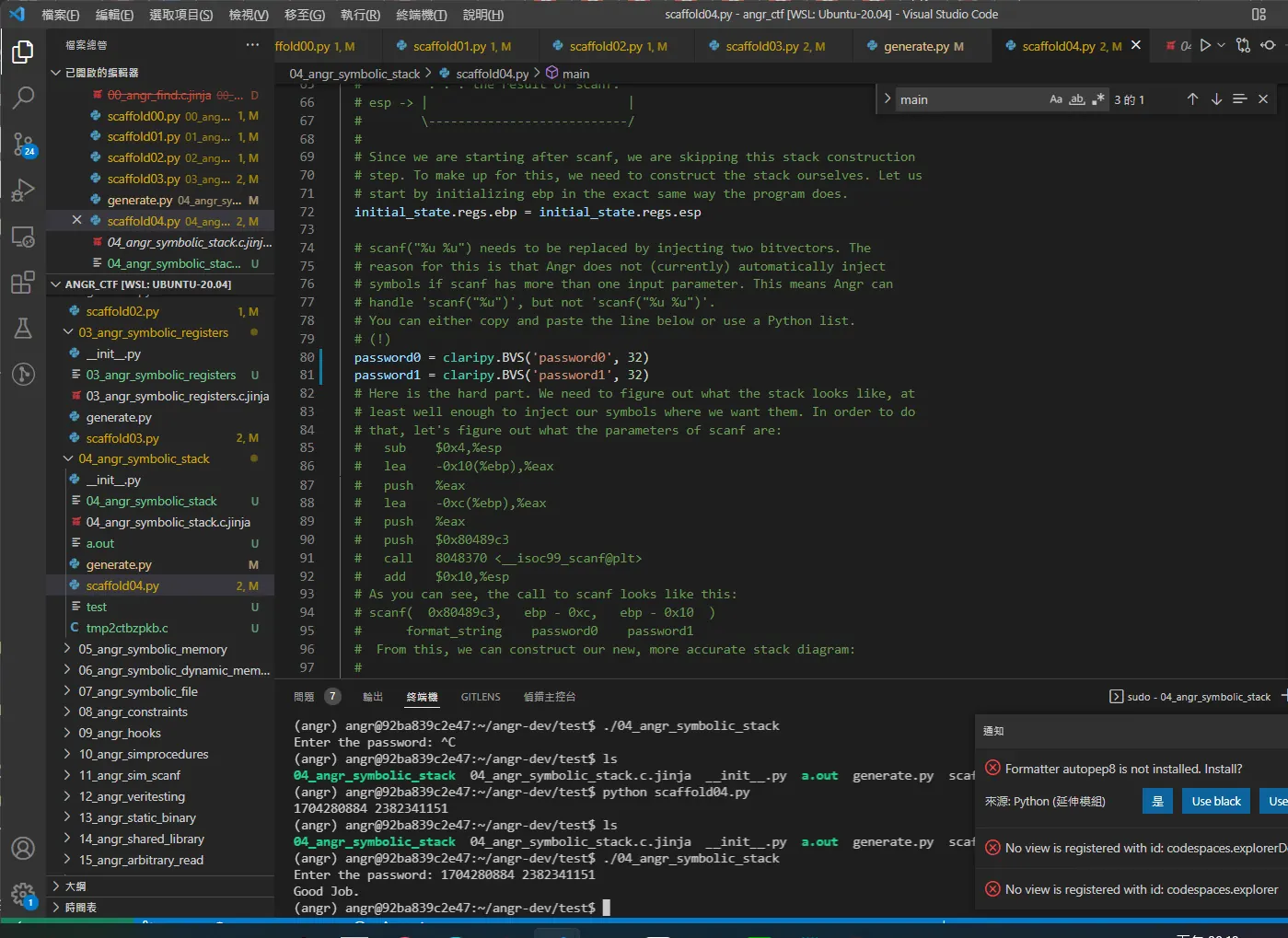

sudo python3 generate.py  04_angr_symbolic_stack.c.jinja  ./test

#include <stdio.h>
#include <stdlib.h>
#include <stdint.h>
#include <string.h>

#define USERDEF0 2997776385
#define USERDEF1 1966343970

char msg[] = "";

void print_msg() {
  printf("%s", msg);
}

uint32_t complex_function0(uint32_t value) {
  value ^= 2533711732;value ^= 2593354591;value ^= 2343946690;value ^= 995143788;value ^= 3918799375;value ^= 2793389223;value ^= 3760967890;value ^= 2831565273;value ^= 1820446797;value ^= 980611347;value ^= 3230278687;value ^= 209927687;value ^= 2280613315;value ^= 2051206487;value ^= 4004020839;value ^= 3859445670;value ^= 1872572178;value ^= 170950821;value ^= 3677808046;value ^= 1437212780;value ^= 2686921896;value ^= 3847214437;value ^= 1299307166;value ^= 2364791306;value ^= 510873734;value ^= 1470206620;value ^= 3165490505;value ^= 2564832072;value ^= 539405512;value ^= 1391856955;value ^= 616548599;value ^= 329054243;
  return value;
}

uint32_t complex_function1(uint32_t value) {
  value ^= 3719196317;value ^= 2979048246;value ^= 968728659;value ^= 56966325;value ^= 1635704867;value ^= 164594016;value ^= 248282231;value ^= 2222561507;value ^= 3793834468;value ^= 4251205034;value ^= 882375839;value ^= 1827536944;value ^= 1749698508;value ^= 782058120;value ^= 2883770482;value ^= 2928618623;value ^= 3039571705;value ^= 314028640;value ^= 3510754512;value ^= 515637315;value ^= 1799264849;value ^= 2338999872;value ^= 2550244840;value ^= 2329154939;value ^= 3310465120;value ^= 3371939078;value ^= 2989903830;value ^= 3679244865;value ^= 4244655143;value ^= 917105375;value ^= 2349674148;value ^= 2722154001;
  return value;
}

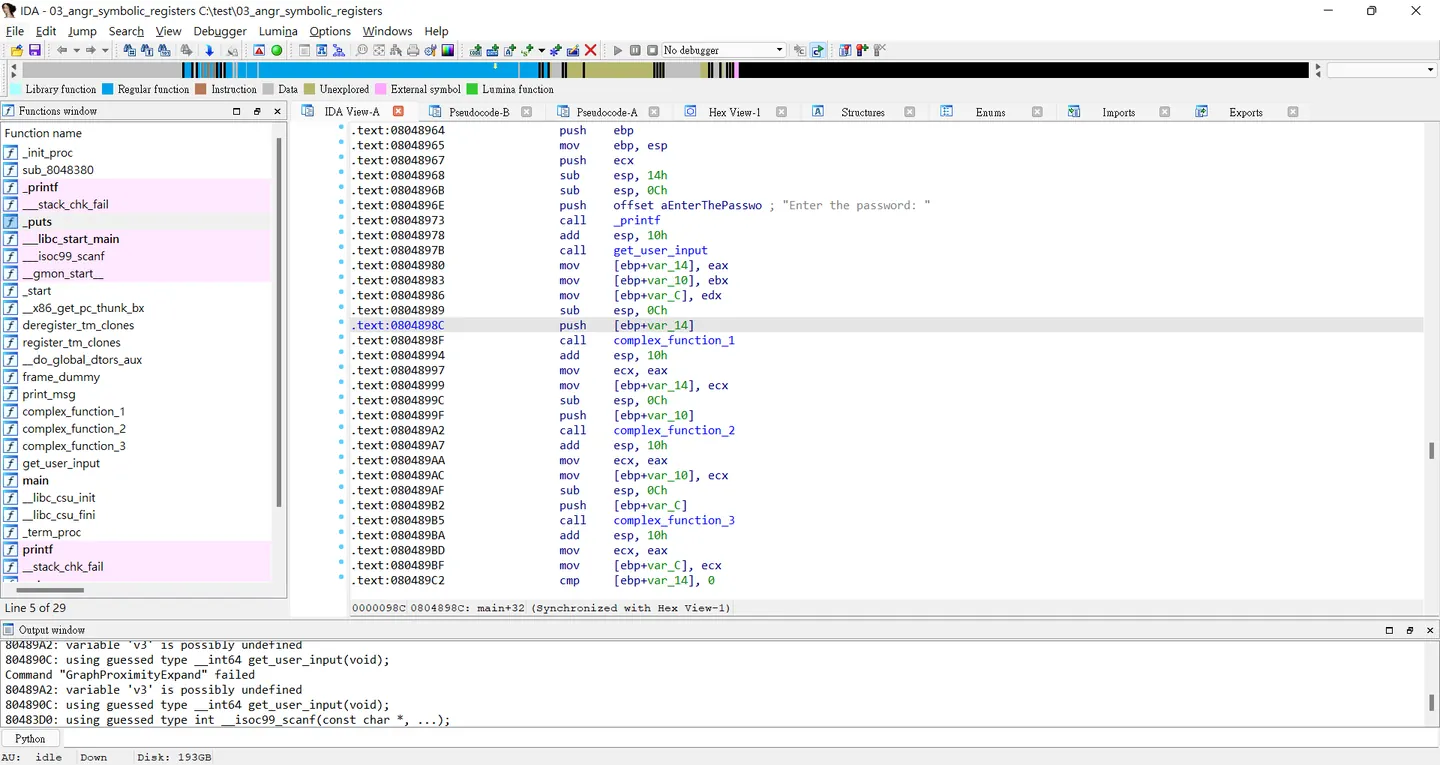

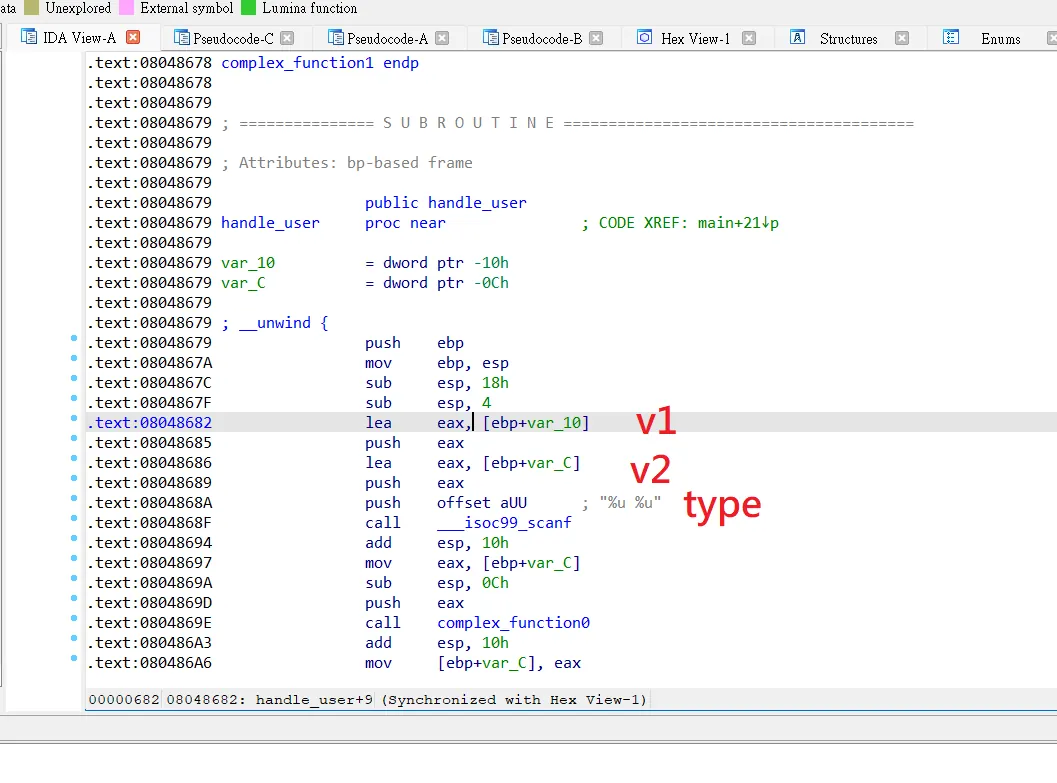

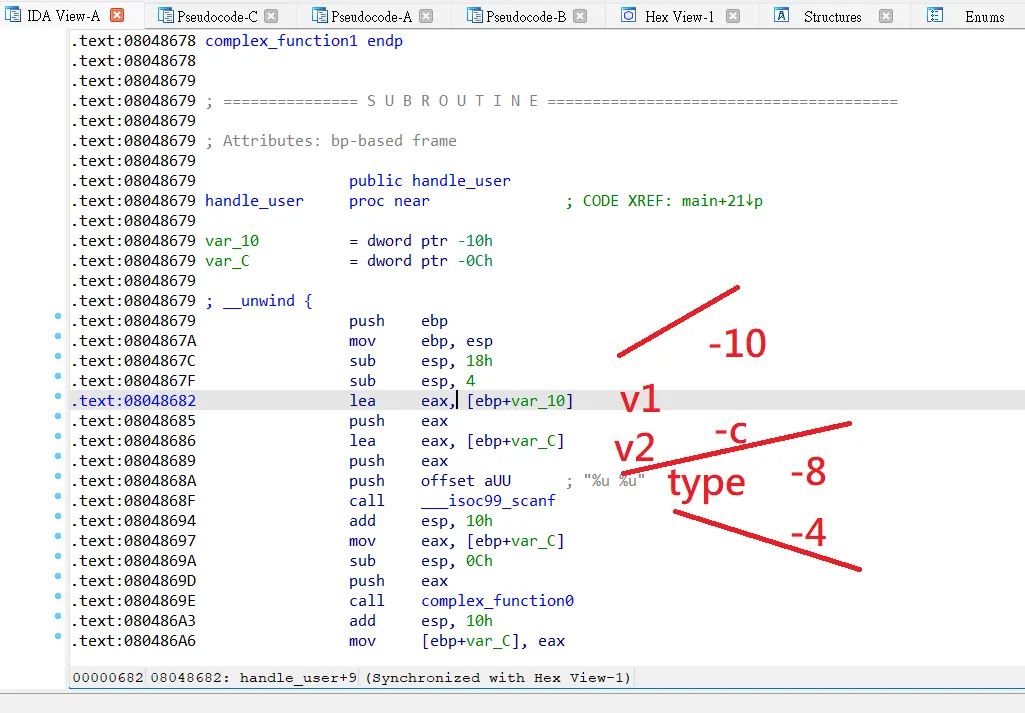

void handle_user() {
  uint32_t user_int0;
  uint32_t user_int1;
  scanf("%u %u", &user_int0, &user_int1);
  user_int0 = complex_function0(user_int0);
  user_int1 = complex_function1(user_int1);
  if ((user_int0 ^ USERDEF0) || (user_int1 ^ USERDEF1)) {
    printf("Try again.\n");
  } else {
    printf("Good Job.\n");
  }
}

int main(int argc, char* argv[]) {
  //print_msg();
  printf("Enter the password: ");
  handle_user();
}

print(solution_state.posix.dumps(sys.stdin.fileno()).decode())

# Before you begin, here are a few notes about these capture-the-flag
# challenges.
#
# Each binary, when run, will ask for a password, which can be entered via stdin
# (typing it into the console.) Many of the levels will accept many different
# passwords. Your goal is to find a single password that works for each binary.
#
# If you enter an incorrect password, the program will print "Try again." If you
# enter a correct password, the program will print "Good Job."
#
# Each challenge will be accompanied by a file like this one, named
# "scaffoldXX.py". It will offer guidance as well as the skeleton of a possible
# solution. You will have to edit each file. In some cases, you will have to
# edit it significantly. While use of these files is recommended, you can write
# a solution without them, if you find that they are too restrictive.
#
# Places in the scaffoldXX.py that require a simple substitution will be marked
# with three question marks (???). Places that require more code will be marked
# with an ellipsis (...). Comments will document any new concepts, but will be
# omitted for concepts that have already been covered (you will need to use
# previous scaffoldXX.py files as a reference to solve the challenges.) If a
# comment documents a part of the code that needs to be changed, it will be
# marked with an exclamation point at the end, on a separate line (!).

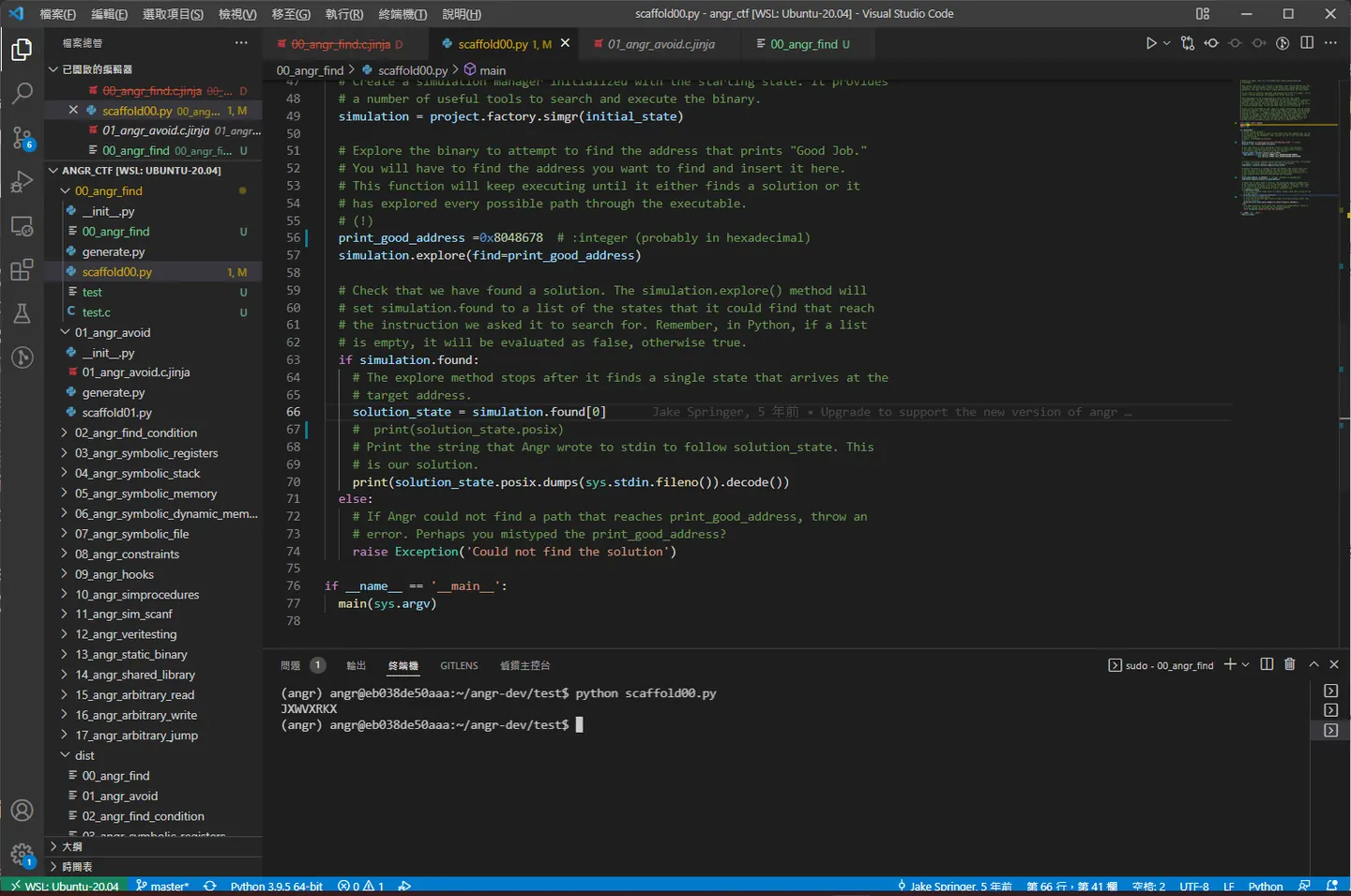

from ctypes import sizeof
import angr
import sys

def main(argv):
  # Create an Angr project.
  # If you want to be able to point to the binary from the command line, you can
  # use argv[1] as the parameter. Then, you can run the script from the command
  # line as follows:
  # python ./scaffold00.py [binary]
  # (!)
  path_to_binary ="/home/angr/angr-dev/test/00_angr_find"  # :string
  project = angr.Project(path_to_binary)

  # Tell Angr where to start executing (should it start from the main()
  # function or somewhere else?) For now, use the entry_state function
  # to instruct Angr to start from the main() function.
  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # Create a simulation manager initialized with the starting state. It provides
  # a number of useful tools to search and execute the binary.
  simulation = project.factory.simgr(initial_state)

  # Explore the binary to attempt to find the address that prints "Good Job."
  # You will have to find the address you want to find and insert it here.
  # This function will keep executing until it either finds a solution or it
  # has explored every possible path through the executable.
  # (!)
  print_good_address =0x8048678  # :integer (probably in hexadecimal)
  simulation.explore(find=print_good_address)

  # Check that we have found a solution. The simulation.explore() method will
  # set simulation.found to a list of the states that it could find that reach
  # the instruction we asked it to search for. Remember, in Python, if a list
  # is empty, it will be evaluated as false, otherwise true.
  if simulation.found:
    # The explore method stops after it finds a single state that arrives at the
    # target address.
    solution_state = simulation.found[0]
    print(len(simulation.found))
    #  print(solution_state.posix)
    # Print the string that Angr wrote to stdin to follow solution_state. This
    # is our solution.
    print(solution_state.posix.dumps(sys.stdin.fileno()).decode())
  else:
    # If Angr could not find a path that reaches print_good_address, throw an
    # error. Perhaps you mistyped the print_good_address?
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

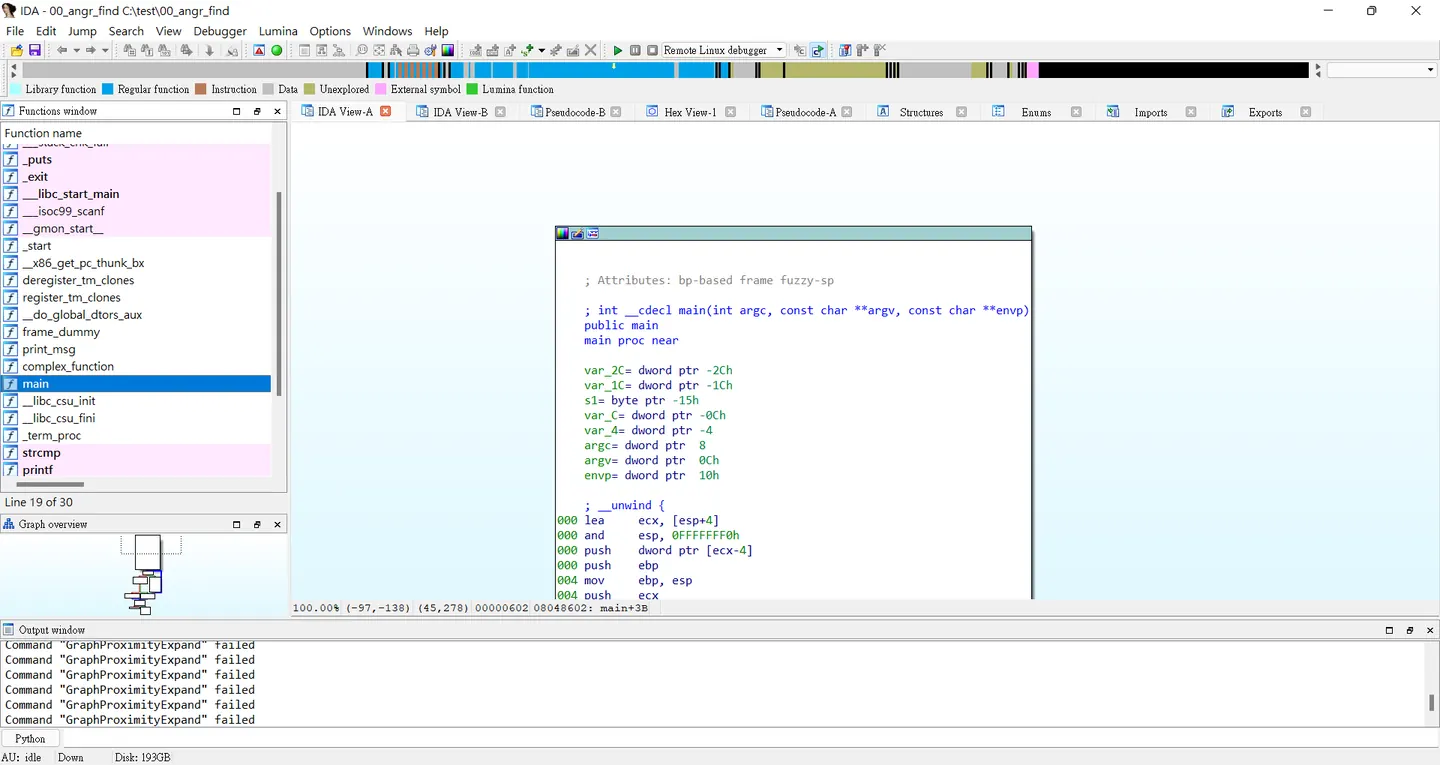

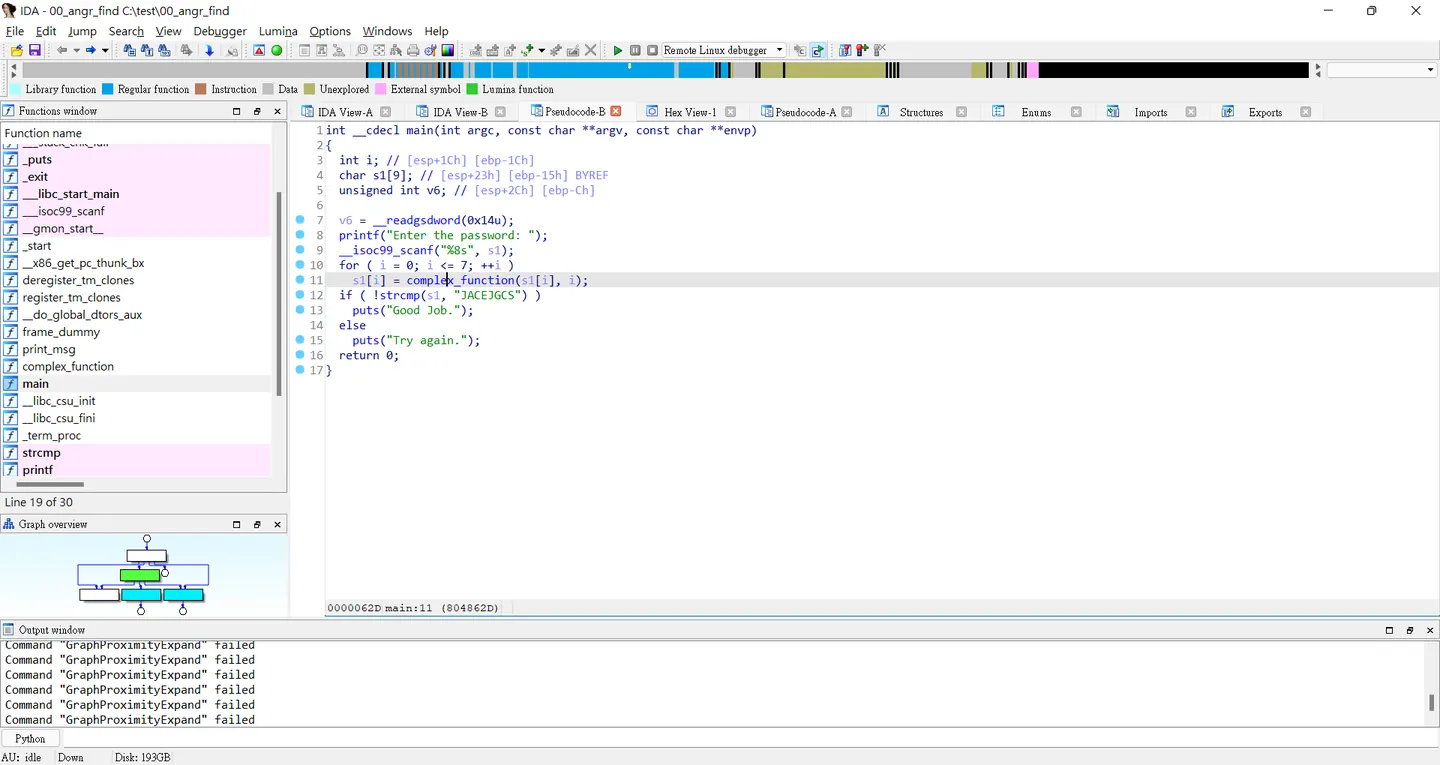

int __cdecl main(int argc, const char **argv, const char **envp)
{
  int i; // [esp+1Ch] [ebp-1Ch]
  char s1[9]; // [esp+23h] [ebp-15h] BYREF
  unsigned int v6; // [esp+2Ch] [ebp-Ch]

  v6 = __readgsdword(0x14u);
  printf("Enter the password: ");
  __isoc99_scanf("%8s", s1);
  for ( i = 0; i <= 7; ++i )
    s1[i] = complex_function(s1[i], i);
  if ( !strcmp(s1, "JACEJGCS") )
    puts("Good Job.");
  else
    puts("Try again.");
  return 0;
}

int __cdecl complex_function(int a1, int a2)
{
  if ( a1 <= 64 || a1 > 90 )
  {
    puts("Try again.");
    exit(1);
  }
  return (3 * a2 + a1 - 65) % 26 + 65;
}

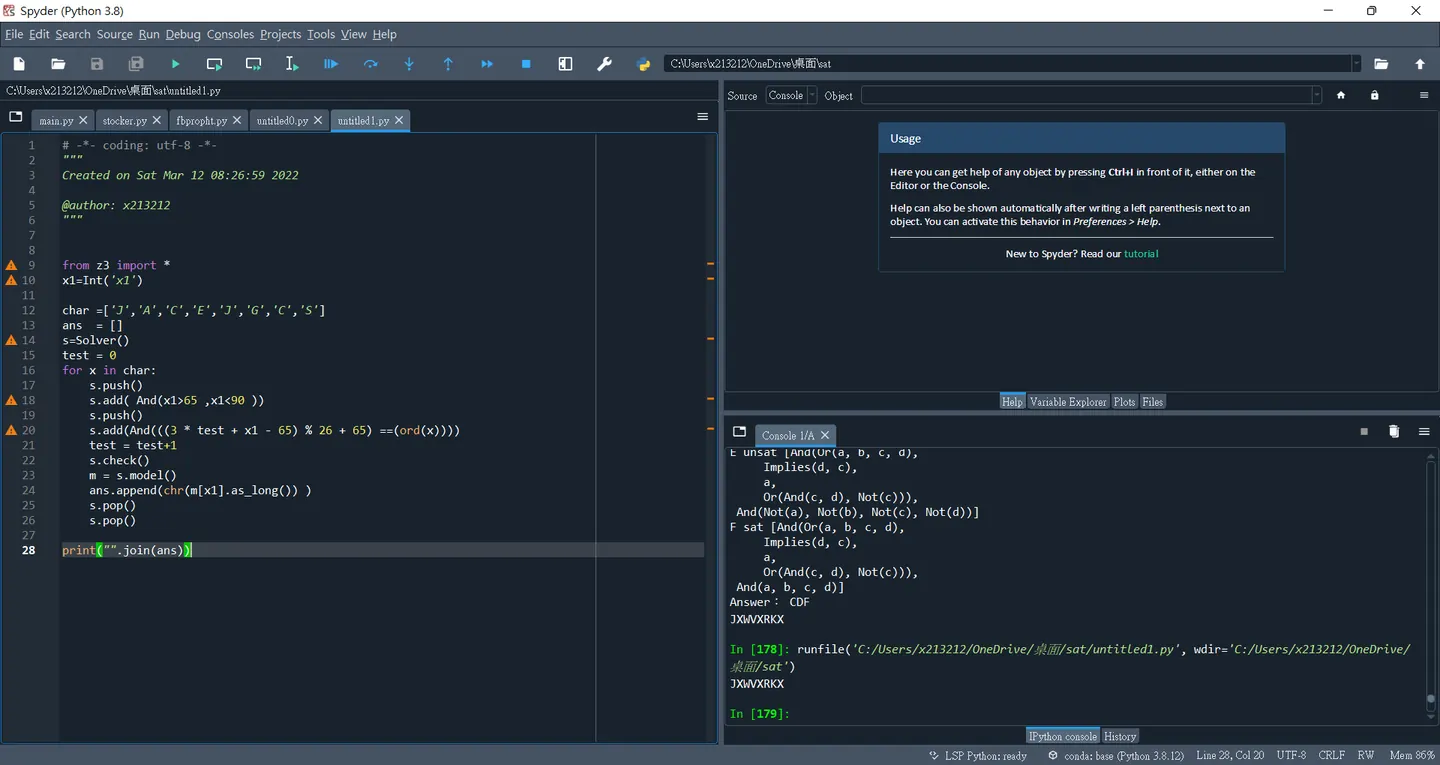

x1=Int('x1')

char =['J','A','C','E','J','G','C','S']
ans  = []
s=Solver()
test = 0
for x in char:
    s.push()
    s.add( And(x1>65 ,x1<90 ))
    s.push()
    s.add(And(((3 * test + x1 - 65) % 26 + 65) ==(ord(x))))
    test = test+1
    s.check()
    m = s.model()
    ans.append(chr(m[x1].as_long()) )
    s.pop()
    s.pop()

print("".join(ans))

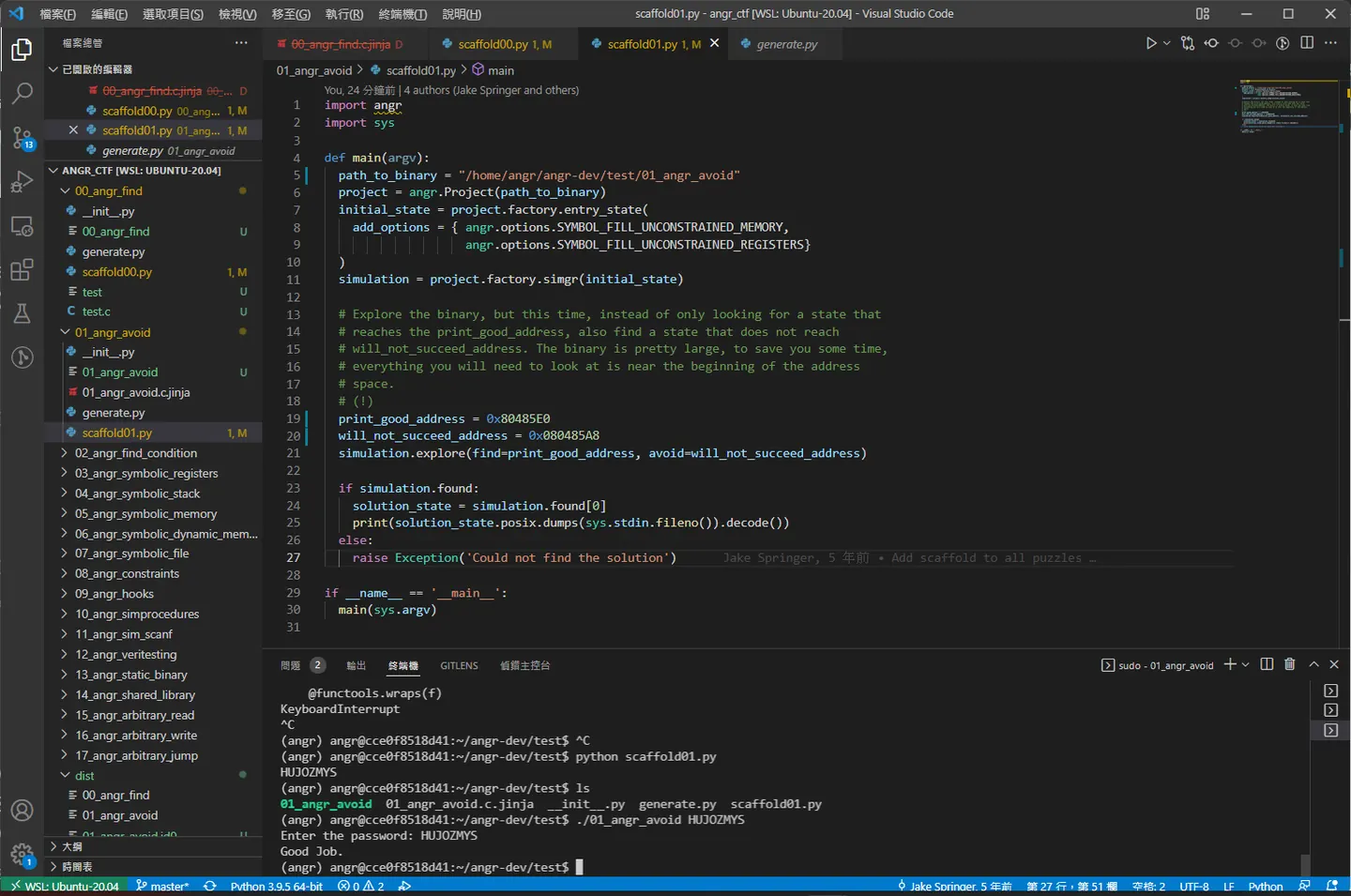

import angr
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/01_angr_avoid"
  project = angr.Project(path_to_binary)
  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )
  simulation = project.factory.simgr(initial_state)

  # Explore the binary, but this time, instead of only looking for a state that
  # reaches the print_good_address, also find a state that does not reach
  # will_not_succeed_address. The binary is pretty large, to save you some time,
  # everything you will need to look at is near the beginning of the address
  # space.
  # (!)
  print_good_address = 0x80485E0
  will_not_succeed_address = 0x080485A8
  simulation.explore(find=print_good_address, avoid=will_not_succeed_address)

  if simulation.found:
    solution_state = simulation.found[0]
    print(solution_state.posix.dumps(sys.stdin.fileno()).decode())
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

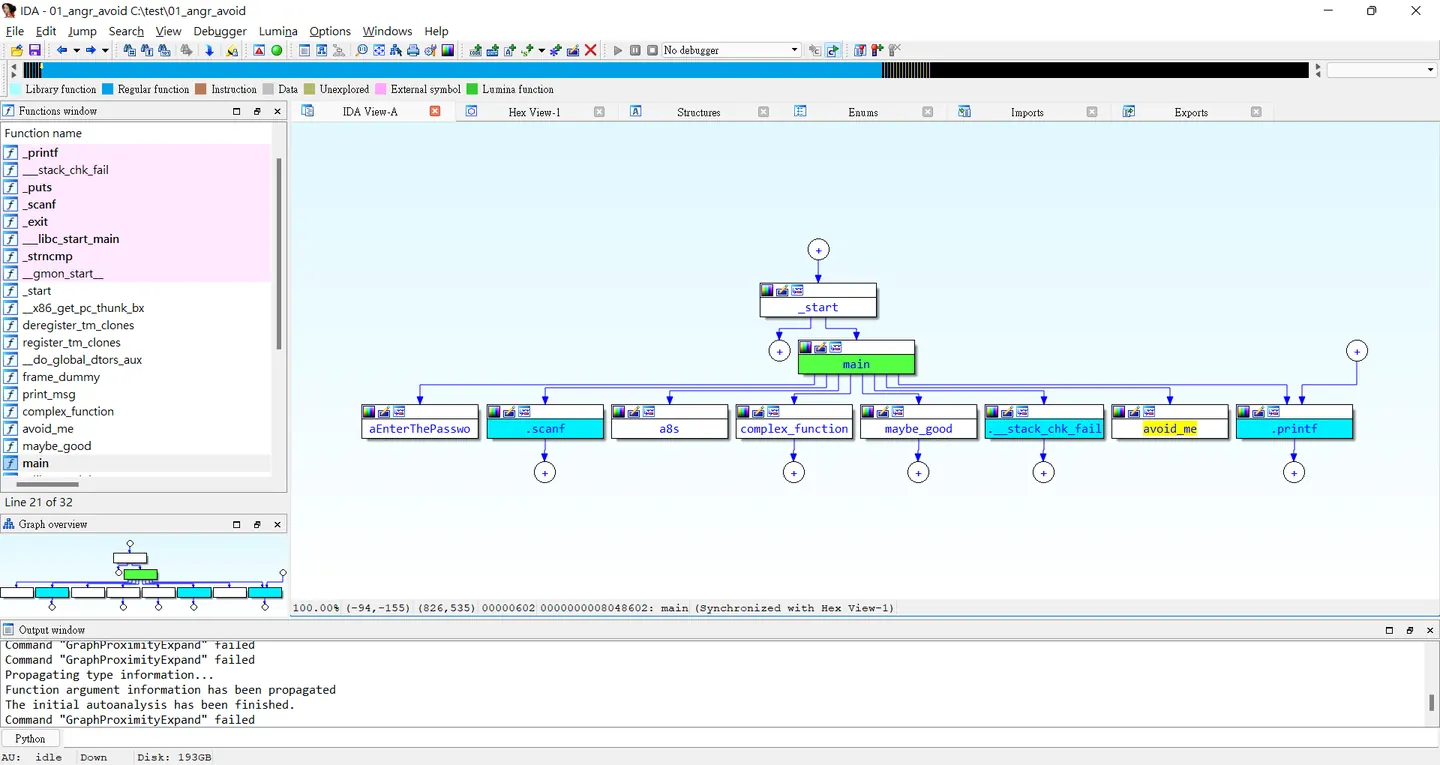

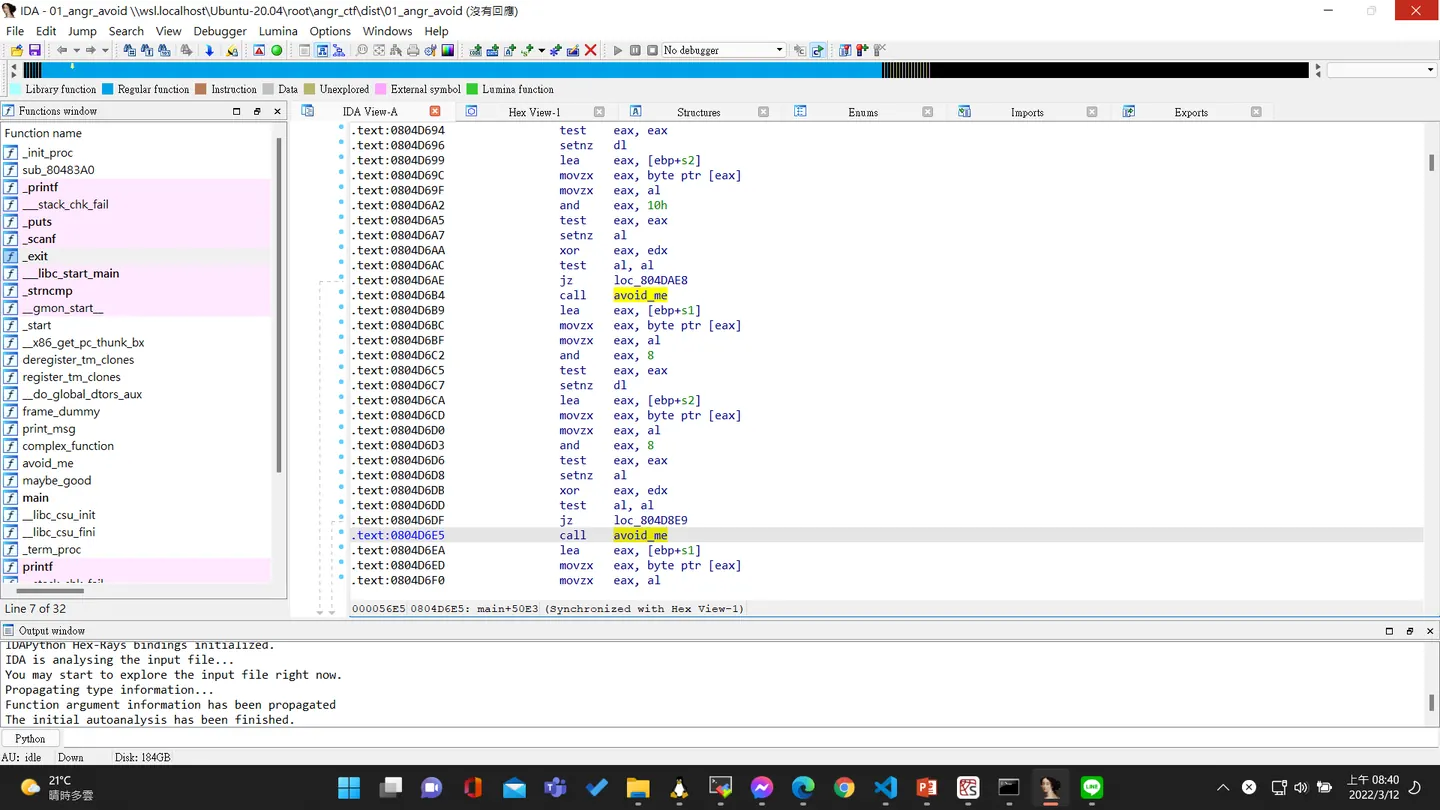

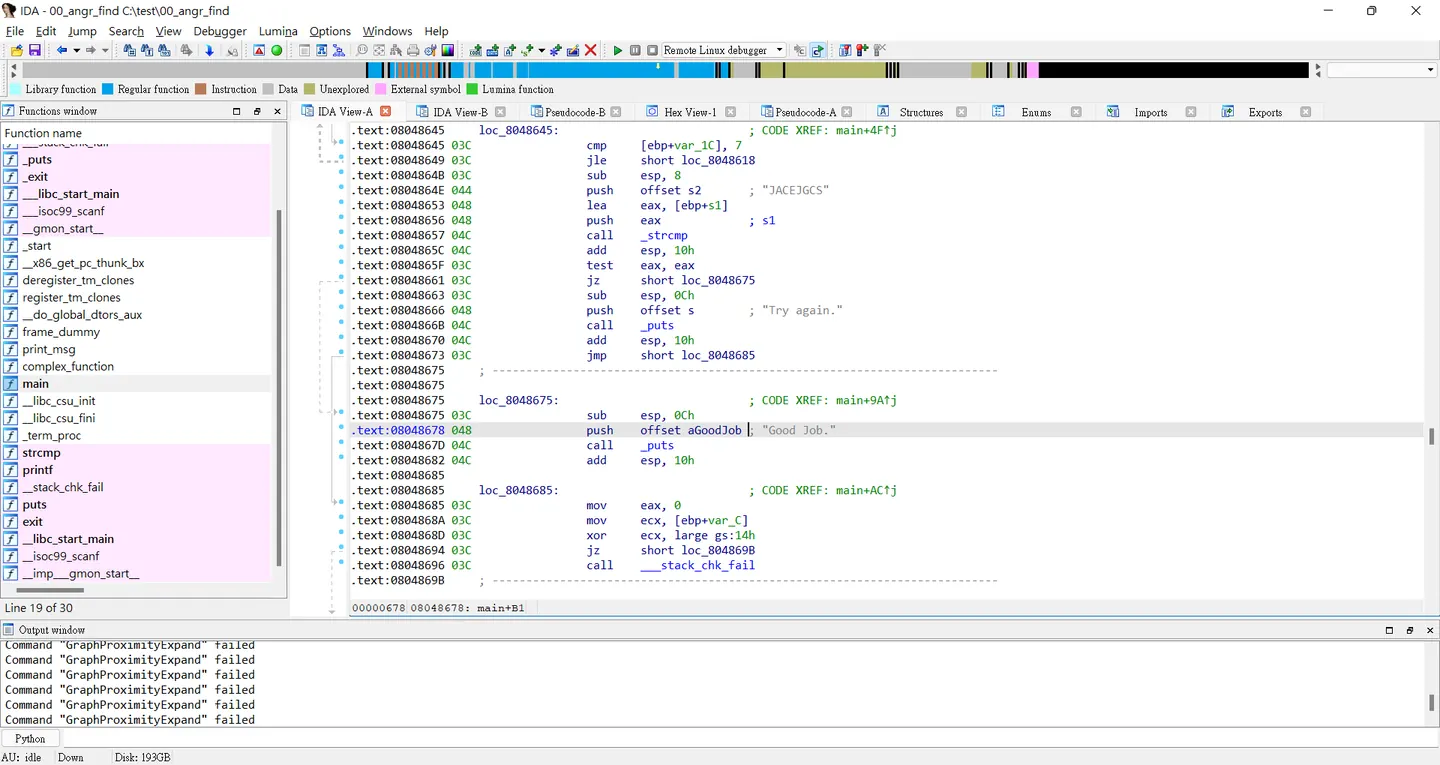

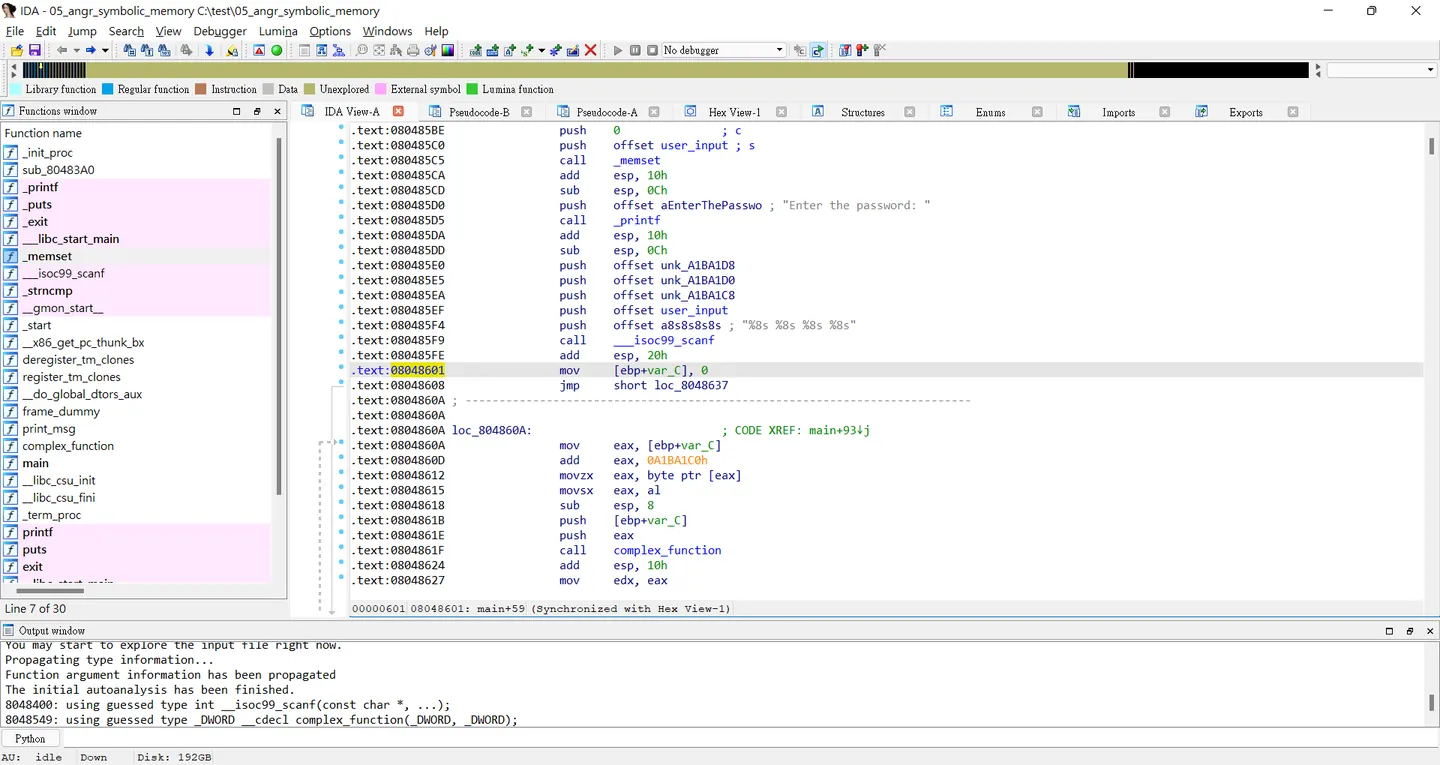

.text:080485F2                 push    offset s        ; "Try again."

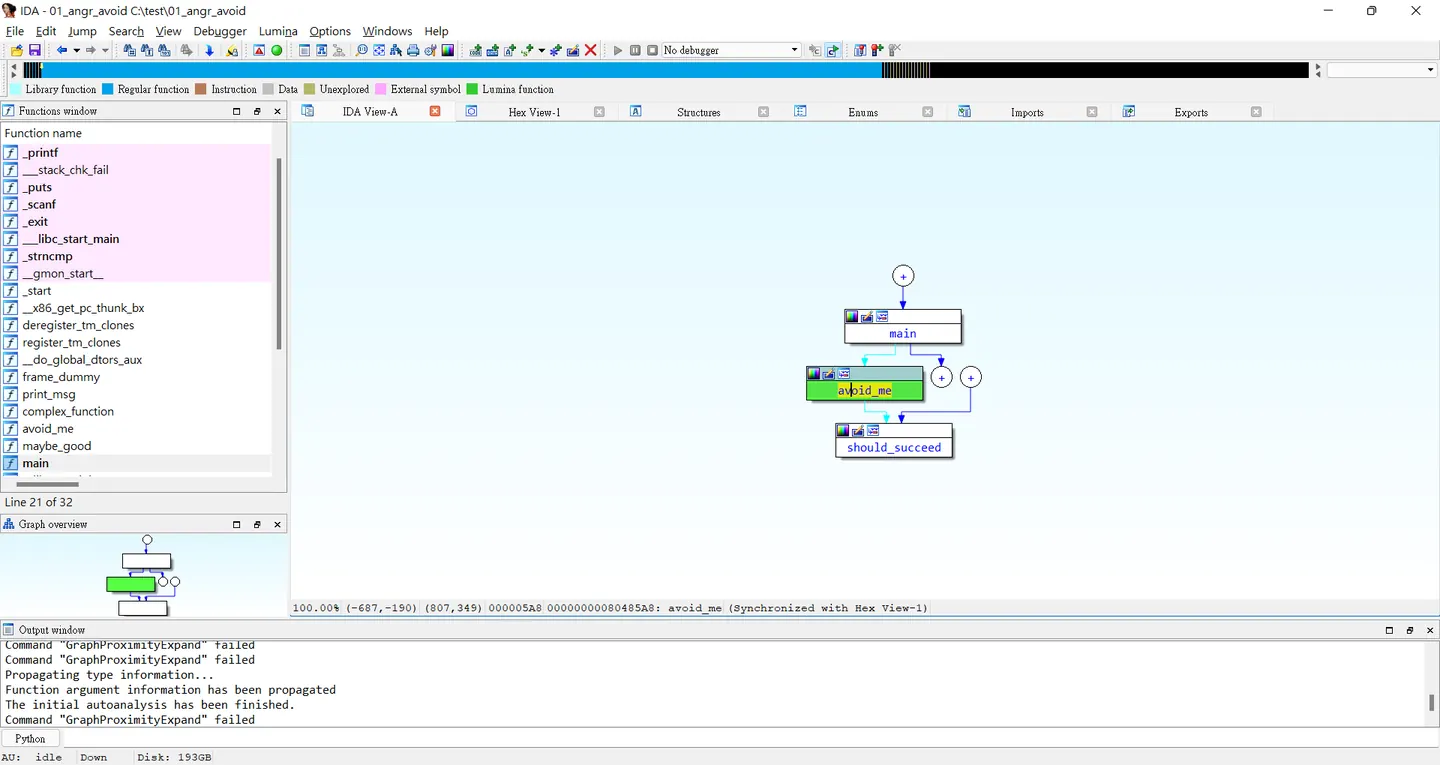

.text:080485A8 avoid_me        proc near               ; CODE XREF: main+1CA↓p

# It is very useful to be able to search for a state that reaches a certain
# instruction. However, in some cases, you may not know the address of the
# specific instruction you want to reach (or perhaps there is no single
# instruction goal.) In this challenge, you don't know which instruction
# grants you success. Instead, you just know that you want to find a state where
# the binary prints "Good Job."
#
# Angr is powerful in that it allows you to search for a states that meets an
# arbitrary condition that you specify in Python, using a predicate you define
# as a function that takes a state and returns True if you have found what you
# are looking for, and False otherwise.

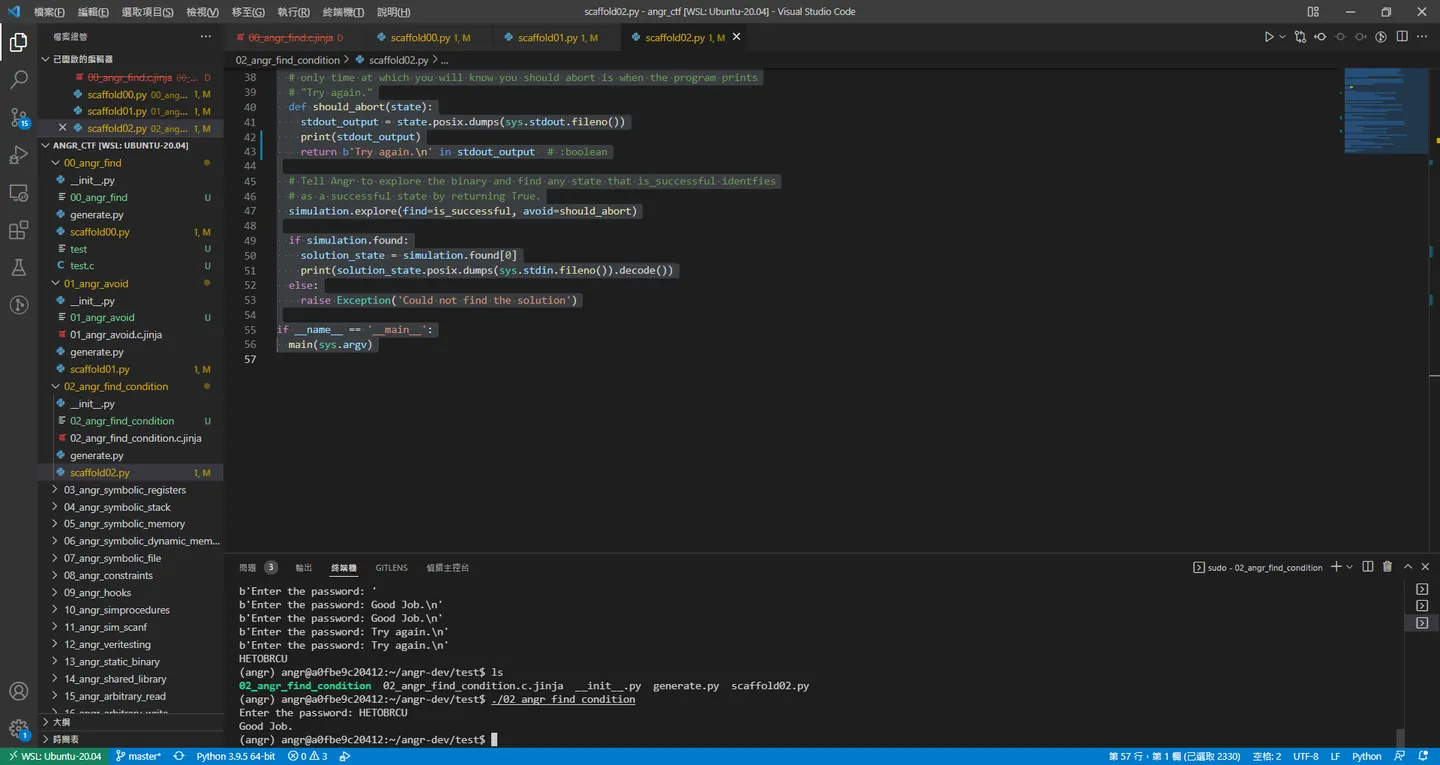

import angr
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/02_angr_find_condition"
  project = angr.Project(path_to_binary)
  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )
  simulation = project.factory.simgr(initial_state)

  # Define a function that checks if you have found the state you are looking
  # for.
  def is_successful(state):
    # Dump whatever has been printed out by the binary so far into a string.
    stdout_output = state.posix.dumps(sys.stdout.fileno())

    # Return whether 'Good Job.' has been printed yet.
    # (!)
    print(stdout_output)
    return b'Good Job.\n' in stdout_output  # :boolean

  # Same as above, but this time check if the state should abort. If you return
  # False, Angr will continue to step the state. In this specific challenge, the
  # only time at which you will know you should abort is when the program prints
  # "Try again."
  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    print(stdout_output)
    return b'Try again.\n' in stdout_output  # :boolean

  # Tell Angr to explore the binary and find any state that is_successful identfies
  # as a successful state by returning True.
  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]
    print(solution_state.posix.dumps(sys.stdin.fileno()).decode())
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

# Angr doesn't currently support reading multiple things with scanf (Ex:
# scanf("%u %u).) You will have to tell the simulation engine to begin the
# program after scanf is called and manually inject the symbols into registers.

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/03_angr_symbolic_registers"
  project = angr.Project(path_to_binary)

  # Sometimes, you want to specify where the program should start. The variable
  # start_address will specify where the symbolic execution engine should begin.
  # Note that we are using blank_state, not entry_state.
  # (!)
  start_address = 0x08048980  # :integer (probably hexadecimal)
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # Create a symbolic bitvector (the datatype Angr uses to inject symbolic
  # values into the binary.) The first parameter is just a name Angr uses
  # to reference it.
  # You will have to construct multiple bitvectors. Copy the two lines below
  # and change the variable names. To figure out how many (and of what size)
  # you need, dissassemble the binary and determine the format parameter passed
  # to scanf.
  # (!)
  password0_size_in_bits = 32  # :integer
  password0 = claripy.BVS('password0', password0_size_in_bits)
  password1_size_in_bits = 32  # :integer
  password1 = claripy.BVS('password1', password1_size_in_bits)
  password2_size_in_bits = 32  # :integer
  password2 = claripy.BVS('password2', password2_size_in_bits)

  # Set a register to a symbolic value. This is one way to inject symbols into
  # the program.
  # initial_state.regs stores a number of convenient attributes that reference
  # registers by name. For example, to set eax to password0, use:
  #
  # initial_state.regs.eax = password0
  #
  # You will have to set multiple registers to distinct bitvectors. Copy and
  # paste the line below and change the register. To determine which registers
  # to inject which symbol, dissassemble the binary and look at the instructions
  # immediately following the call to scanf.
  # (!)
  initial_state.regs.eax = password0
  initial_state.regs.ebx = password1
  initial_state.regs.edx = password2

  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Good Job.\n' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Try again.\n' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

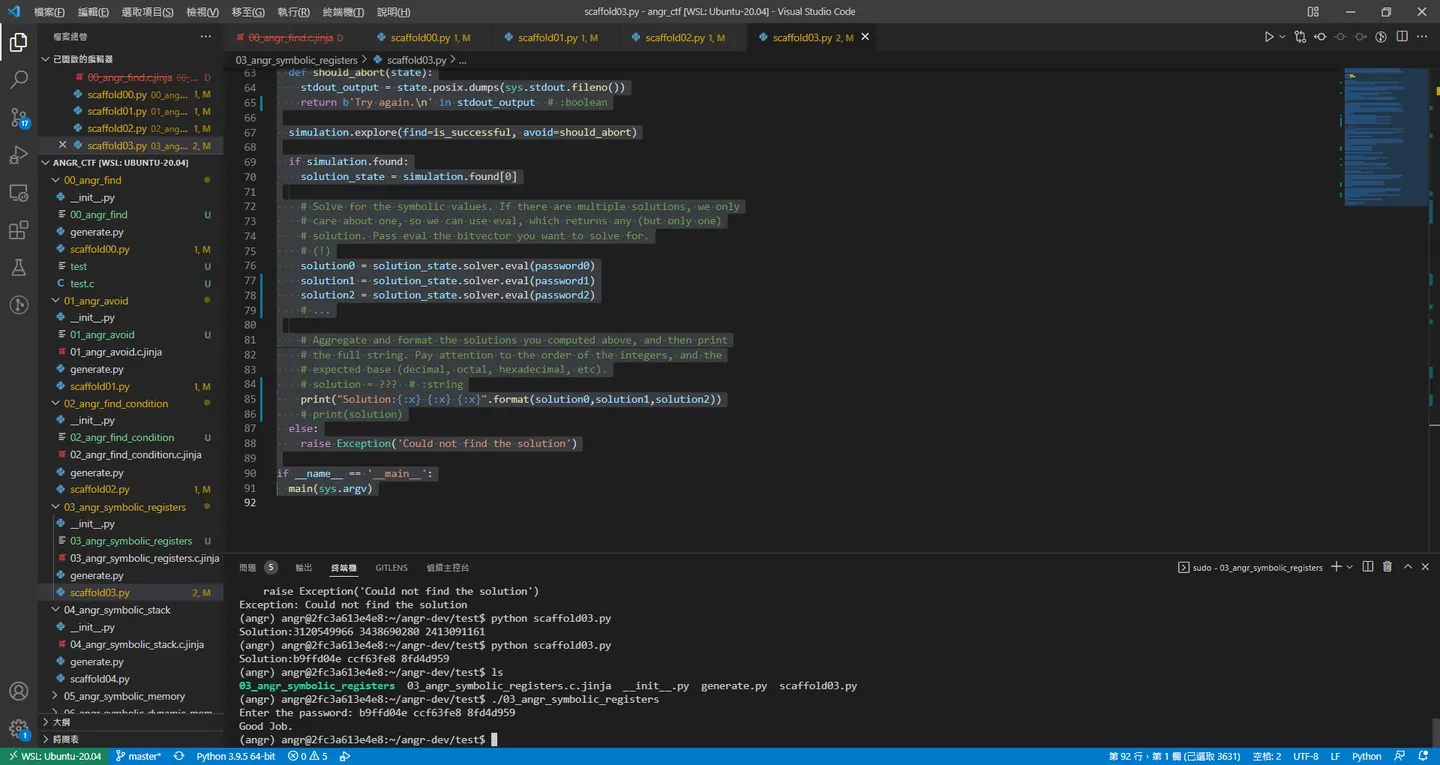

  if simulation.found:
    solution_state = simulation.found[0]

    # Solve for the symbolic values. If there are multiple solutions, we only
    # care about one, so we can use eval, which returns any (but only one)
    # solution. Pass eval the bitvector you want to solve for.
    # (!)
    solution0 = solution_state.solver.eval(password0)
    solution1 = solution_state.solver.eval(password1)
    solution2 = solution_state.solver.eval(password2)
    # ...

    # Aggregate and format the solutions you computed above, and then print
    # the full string. Pay attention to the order of the integers, and the
    # expected base (decimal, octal, hexadecimal, etc).
    # solution = ???  # :string
    print("Solution:{:x} {:x} {:x}".format(solution0,solution1,solution2))
    # print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

.text:0804897B                 call    get_user_input
.text:08048980                 mov     [ebp+var_14], eax
.text:08048983                 mov     [ebp+var_10], ebx
.text:08048986                 mov     [ebp+var_C], edx
.text:08048989                 sub     esp, 0Ch
.text:0804898C                 push    [ebp+var_14]

_somefunc:

  push ebp

  mov ebp, esp

  sub esp, ８

1. 在 _somefunc 函數回傳時用 ret 指令的另一種形式，其中包括要從堆疊中刪除的位元組數目：
   ret 8
2. 刪除 _main 函數中的清理動作：
   add esp, 8

# This challenge will be more challenging than the previous challenges that you
# have encountered thus far. Since the goal of this CTF is to teach symbolic
# execution and not how to construct stack frames, these comments will work you
# through understanding what is on the stack.
#   ! ! !
# IMPORTANT: Any addresses in this script aren't necessarily right! Dissassemble
#            the binary yourself to determine the correct addresses!
#   ! ! !

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/04_angr_symbolic_stack"
  project = angr.Project(path_to_binary)

  # For this challenge, we want to begin after the call to scanf. Note that this
  # is in the middle of a function.
  #
  # This challenge requires dealing with the stack, so you have to pay extra
  # careful attention to where you start, otherwise you will enter a condition
  # where the stack is set up incorrectly. In order to determine where after
  # scanf to start, we need to look at the dissassembly of the call and the
  # instruction immediately following it:
  #   sub    $0x4,%esp
  #   lea    -0x10(%ebp),%eax
  #   push   %eax
  #   lea    -0xc(%ebp),%eax
  #   push   %eax
  #   push   $0x80489c3
  #   call   8048370 <__isoc99_scanf@plt>
  #   add    $0x10,%esp
  # Now, the question is: do we start on the instruction immediately following
  # scanf (add $0x10,%esp), or the instruction following that (not shown)?
  # Consider what the 'add $0x10,%esp' is doing. Hint: it has to do with the
  # scanf parameters that are pushed to the stack before calling the function.
  # Given that we are not calling scanf in our Angr simulation, where should we
  # start?
  # (!)
  start_address = 0x8048697
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # We are jumping into the middle of a function! Therefore, we need to account
  # for how the function constructs the stack. The second instruction of the
  # function is:
  #   mov    %esp,%ebp
  # At which point it allocates the part of the stack frame we plan to target:
  #   sub    $0x18,%esp
  # Note the value of esp relative to ebp. The space between them is (usually)
  # the stack space. Since esp was decreased by 0x18
  #
  #        /-------- The stack --------\
  # ebp -> |                           |
  #        |---------------------------|
  #        |                           |
  #        |---------------------------|
  #         . . . (total of 0x18 bytes)
  #         . . . Somewhere in here is
  #         . . . the data that stores
  #         . . . the result of scanf.
  # esp -> |                           |
  #        \---------------------------/
  #
  # Since we are starting after scanf, we are skipping this stack construction
  # step. To make up for this, we need to construct the stack ourselves. Let us
  # start by initializing ebp in the exact same way the program does.
  initial_state.regs.ebp = initial_state.regs.esp

  # scanf("%u %u") needs to be replaced by injecting two bitvectors. The
  # reason for this is that Angr does not (currently) automatically inject
  # symbols if scanf has more than one input parameter. This means Angr can
  # handle 'scanf("%u")', but not 'scanf("%u %u")'.
  # You can either copy and paste the line below or use a Python list.
  # (!)
  password0 = claripy.BVS('password0', 32)
  password1 = claripy.BVS('password1', 32)
  # Here is the hard part. We need to figure out what the stack looks like, at
  # least well enough to inject our symbols where we want them. In order to do
  # that, let's figure out what the parameters of scanf are:
  #   sub    $0x4,%esp
  #   lea    -0x10(%ebp),%eax
  #   push   %eax
  #   lea    -0xc(%ebp),%eax
  #   push   %eax
  #   push   $0x80489c3
  #   call   8048370 <__isoc99_scanf@plt>
  #   add    $0x10,%esp
  # As you can see, the call to scanf looks like this:
  # scanf(  0x80489c3,   ebp - 0xc,   ebp - 0x10  )
  #      format_string    password0    password1
  #  From this, we can construct our new, more accurate stack diagram:
  #
  #            /-------- The stack --------\
  # ebp ->     |          padding          |
  #            |---------------------------|
  # ebp - 0x01 |       more padding        |
  #            |---------------------------|
  # ebp - 0x02 |     even more padding     |
  #            |---------------------------|
  #                        . . .               <- How much padding? Hint: how
  #            |---------------------------|      many bytes is password0?
  # ebp - 0x0b |   password0, second byte  |
  #            |---------------------------|
  # ebp - 0x0c |   password0, first byte   |
  #            |---------------------------|
  # ebp - 0x0d |   password1, last byte    |
  #            |---------------------------|
  #                        . . .
  #            |---------------------------|
  # ebp - 0x10 |   password1, first byte   |
  #            |---------------------------|
  #                        . . .
  #            |---------------------------|
  # esp ->     |                           |
  #            \---------------------------/
  #
  # Figure out how much space there is and allocate the necessary padding to
  # the stack by decrementing esp before you push the password bitvectors.
  padding_length_in_bytes = 8  # :integer
  initial_state.regs.esp -= padding_length_in_bytes

  # Push the variables to the stack. Make sure to push them in the right order!
  # The syntax for the following function is:
  #
  # initial_state.stack_push(bitvector)
  #
  # This will push the bitvector on the stack, and increment esp the correct
  # amount. You will need to push multiple bitvectors on the stack.
  # (!)
  initial_state.stack_push(password0)  # :bitvector (claripy.BVS, claripy.BVV, claripy.BV)
  initial_state.stack_push(password1)

  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Good Job.\n' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Try again.\n' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]

    solution0 = solution_state.solver.eval(password0)
    solution1 = solution_state.solver.eval(password1)


    solution = ' '.join(map(str, [ solution0, solution1 ]))
    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/05_angr_symbolic_memory"
  project = angr.Project(path_to_binary)

  start_address = 0x08048601
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # The binary is calling scanf("%8s %8s %8s %8s").
  # (!)
  password0 = claripy.BVS('password0', 8*8)
  password1 = claripy.BVS('password1', 8*8)
  password2 = claripy.BVS('password2', 8*8)
  password3 = claripy.BVS('password3', 8*8)

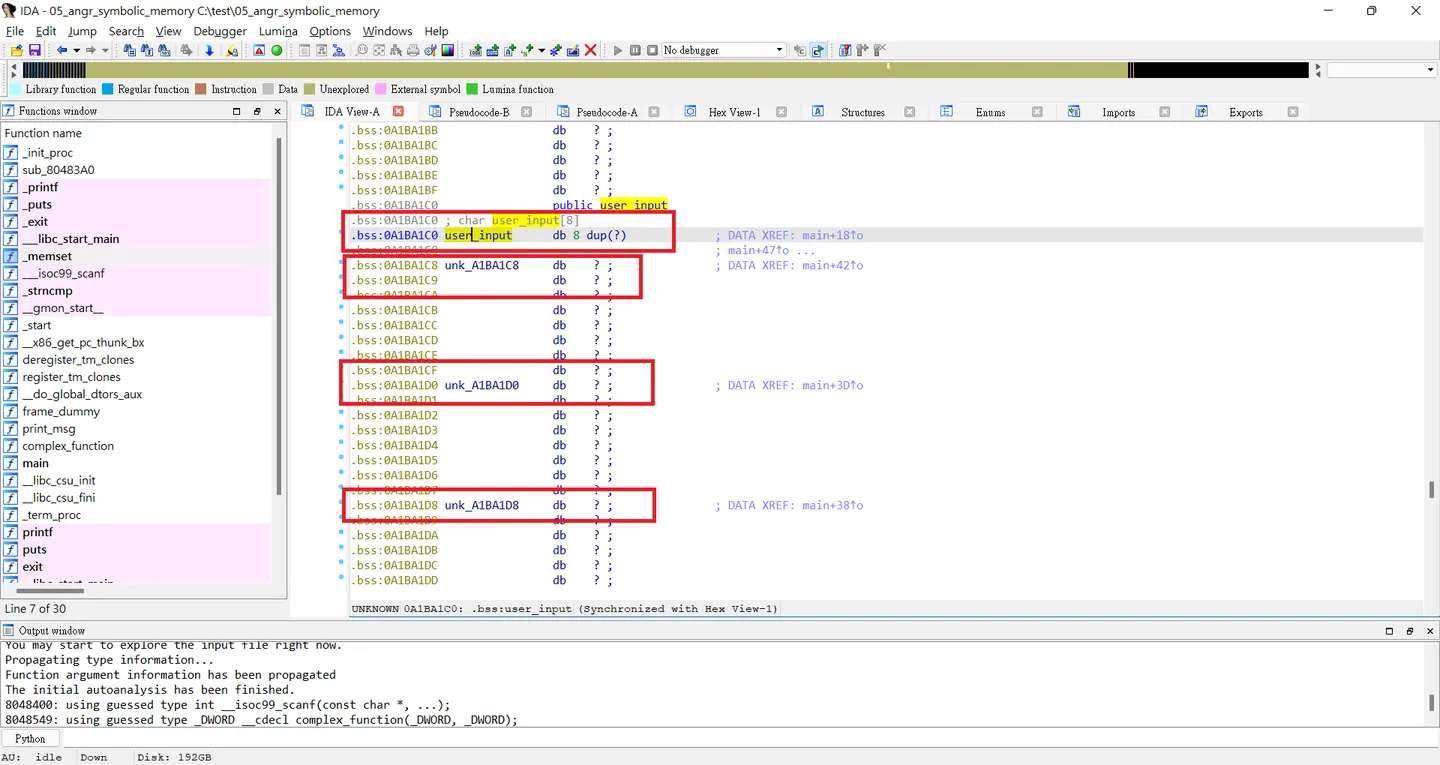

  # Determine the address of the global variable to which scanf writes the user
  # input. The function 'initial_state.memory.store(address, value)' will write
  # 'value' (a bitvector) to 'address' (a memory location, as an integer.) The
  # 'address' parameter can also be a bitvector (and can be symbolic!).
  # (!)
  password0_address = 0x0A1BA1D8
  password1_address = 0x0A1BA1D0
  password2_address = 0x0A1BA1C8
  password3_address = 0x0A1BA1C0
  initial_state.memory.store(password0_address, password0)
  initial_state.memory.store(password1_address, password1)
  initial_state.memory.store(password2_address, password2)
  initial_state.memory.store(password3_address, password3)


  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Good Job.\n' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())

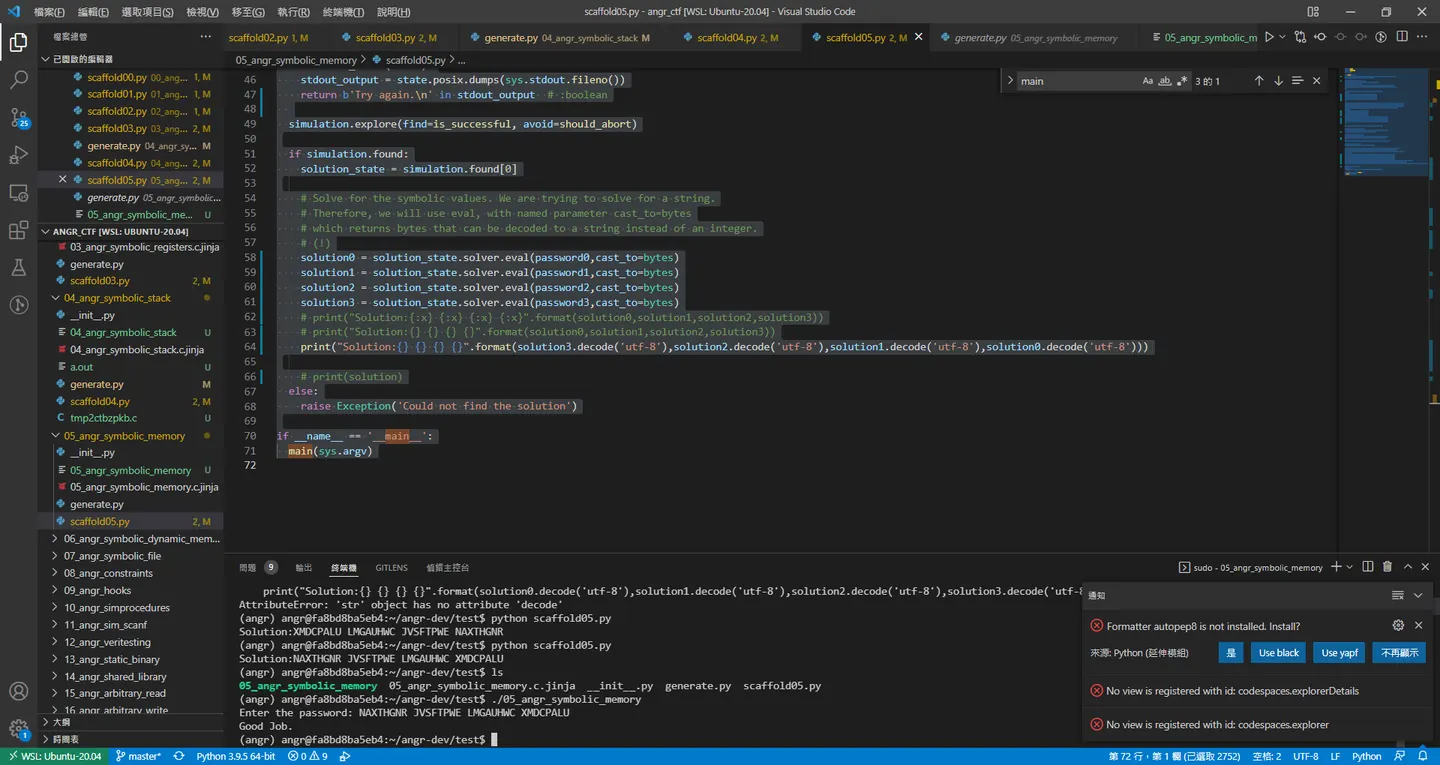

    return b'Try again.\n' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]

    # Solve for the symbolic values. We are trying to solve for a string.
    # Therefore, we will use eval, with named parameter cast_to=bytes
    # which returns bytes that can be decoded to a string instead of an integer.
    # (!)
    solution0 = solution_state.solver.eval(password0,cast_to=bytes)
    solution1 = solution_state.solver.eval(password1,cast_to=bytes)
    solution2 = solution_state.solver.eval(password2,cast_to=bytes)
    solution3 = solution_state.solver.eval(password3,cast_to=bytes)
    # print("Solution:{:x} {:x} {:x} {:x}".format(solution0,solution1,solution2,solution3))
    # print("Solution:{} {} {} {}".format(solution0,solution1,solution2,solution3))
    print("Solution:{} {} {} {}".format(solution3.decode('utf-8'),solution2.decode('utf-8'),solution1.decode('utf-8'),solution0.decode('utf-8')))

    # print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

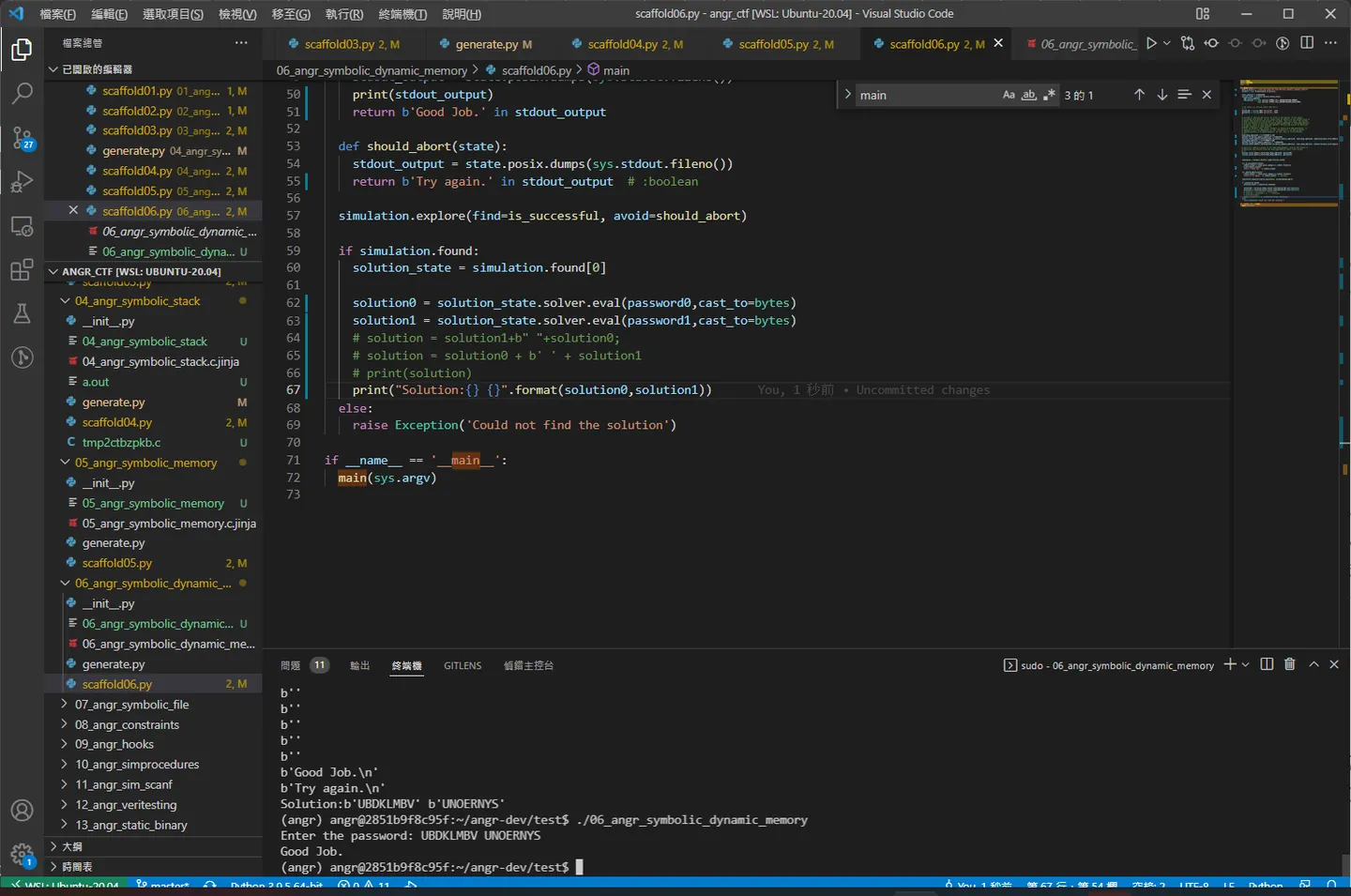

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/06_angr_symbolic_dynamic_memory"
  project = angr.Project(path_to_binary)

  start_address = 0x08048699
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # The binary is calling scanf("%8s %8s").
  # (!)
  password0 = claripy.BVS('password0', 8*8)
  password1 = claripy.BVS('password1', 8*8)
  # ...

  # Instead of telling the binary to write to the address of the memory
  # allocated with malloc, we can simply fake an address to any unused block of
  # memory and overwrite the pointer to the data. This will point the pointer
  # with the address of pointer_to_malloc_memory_address0 to fake_heap_address.
  # Be aware, there is more than one pointer! Analyze the binary to determine
  # global location of each pointer.
  # Note: by default, Angr stores integers in memory with big-endianness. To
  # specify to use the endianness of your architecture, use the parameter
  # endness=project.arch.memory_endness. On x86, this is little-endian.
  # (!)
  fake_heap_address0 = 0x7fff0000-0x100
  pointer_to_malloc_memory_address0 = 0x0ABCC8A4
  initial_state.memory.store(pointer_to_malloc_memory_address0, fake_heap_address0, endness=project.arch.memory_endness)
  fake_heap_address1 = 0x7fff0000-0x200
  pointer_to_malloc_memory_address1 =  0x0ABCC8AC
  initial_state.memory.store(pointer_to_malloc_memory_address1, fake_heap_address1, endness=project.arch.memory_endness)

  # Store our symbolic values at our fake_heap_address. Look at the binary to
  # determine the offsets from the fake_heap_address where scanf writes.
  # (!)
  initial_state.memory.store(fake_heap_address0, password0)
  initial_state.memory.store(fake_heap_address1, password1)

  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    print(stdout_output)
    return b'Good Job.' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Try again.' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]

    solution0 = solution_state.solver.eval(password0,cast_to=bytes)
    solution1 = solution_state.solver.eval(password1,cast_to=bytes)
    # solution = solution1+b" "+solution0;
    # solution = solution0 + b' ' + solution1
    # print(solution)
    print("Solution:{} {}".format(solution1,solution0))
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

  fake_heap_address0 = 0x7fff0000-0x100
  pointer_to_malloc_memory_address0 = 0x0ABCC8A4
  initial_state.memory.store(pointer_to_malloc_memory_address0, fake_heap_address0, endness=project.arch.memory_endness)
  fake_heap_address1 = 0x7fff0000-0x200
  pointer_to_malloc_memory_address1 =  0x0ABCC8AC
  initial_state.memory.store(pointer_to_malloc_memory_address1, fake_heap_address1, endness=project.arch.memory_endness)

# This challenge could, in theory, be solved in multiple ways. However, for the
# sake of learning how to simulate an alternate filesystem, please solve this
# challenge according to structure provided below. As a challenge, once you have
# an initial solution, try solving this in an alternate way.
#
# Problem description and general solution strategy:
# The binary loads the password from a file using the fread function. If the
# password is correct, it prints "Good Job." In order to keep consistency with
# the other challenges, the input from the console is written to a file in the
# ignore_me function. As the name suggests, ignore it, as it only exists to
# maintain consistency with other challenges.
# We want to:
# 1. Determine the file from which fread reads.
# 2. Use Angr to simulate a filesystem where that file is replaced with our own
#    simulated file.
# 3. Initialize the file with a symbolic value, which will be read with fread
#    and propogated through the program.
# 4. Solve for the symbolic input to determine the password.

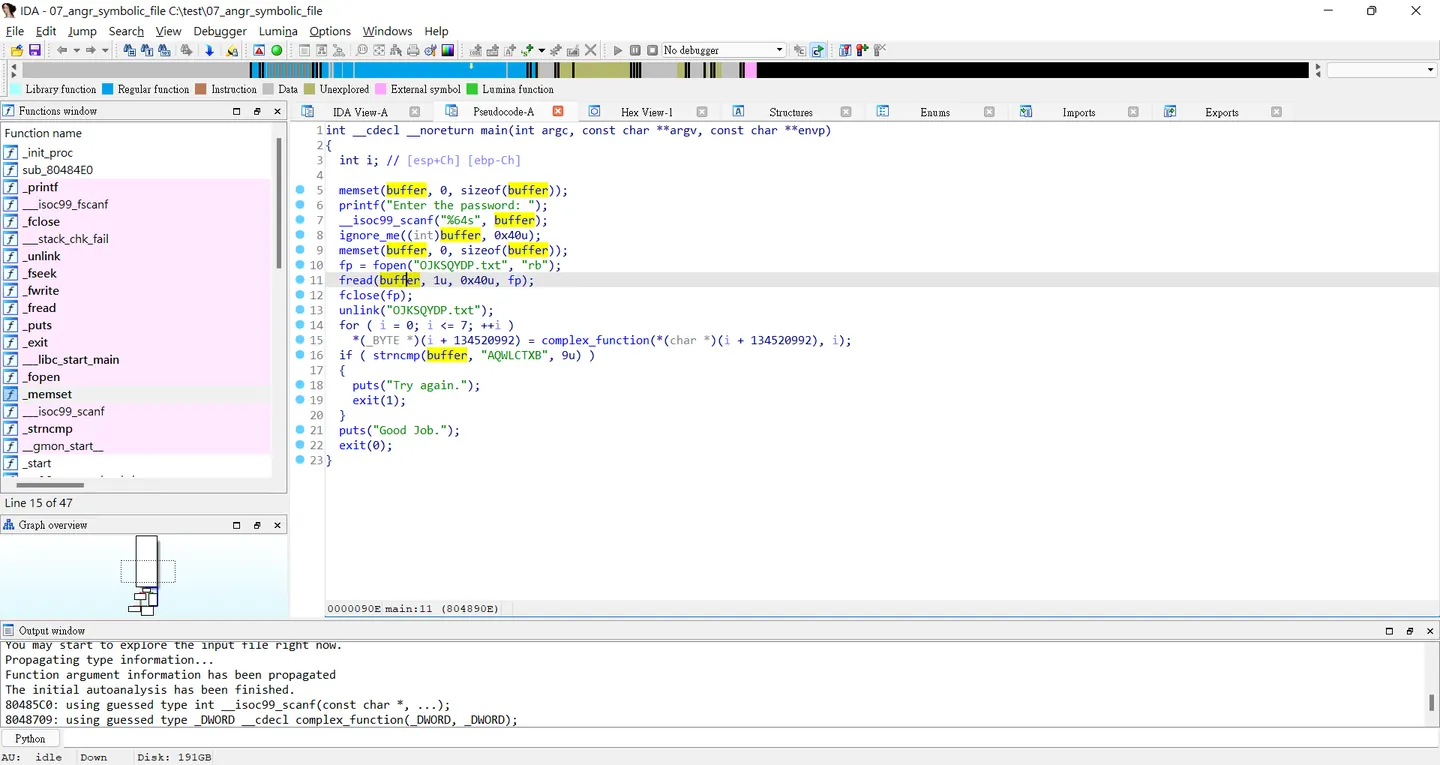

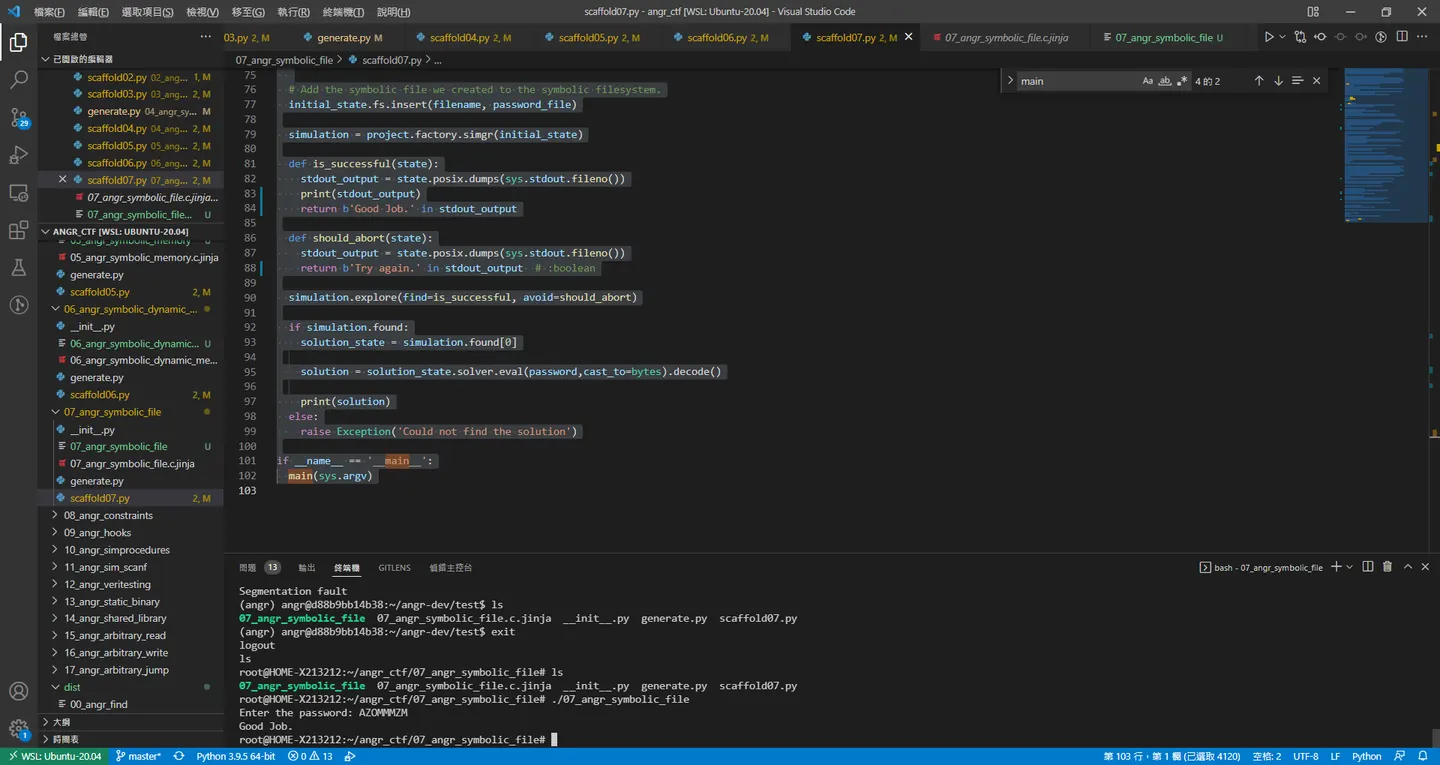

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/07_angr_symbolic_file"
  project = angr.Project(path_to_binary)

  start_address = 0x080488D6
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  # Specify some information needed to construct a simulated file. For this
  # challenge, the filename is hardcoded, but in theory, it could be symbolic.
  # Note: to read from the file, the binary calls
  # 'fread(buffer, sizeof(char), 64, file)'.
  # (!)
  filename = "OJKSQYDP.txt"  # :string
  symbolic_file_size_bytes = 0x40

  # Construct a bitvector for the password and then store it in the file's
  # backing memory. For example, imagine a simple file, 'hello.txt':
  #
  # Hello world, my name is John.
  # ^                       ^
  # ^ address 0             ^ address 24 (count the number of characters)
  # In order to represent this in memory, we would want to write the string to
  # the beginning of the file:
  #
  # hello_txt_contents = claripy.BVV('Hello world, my name is John.', 30*8)
  #
  # Perhaps, then, we would want to replace John with a
  # symbolic variable. We would call:
  #
  # name_bitvector = claripy.BVS('symbolic_name', 4*8)
  #
  # Then, after the program calls fopen('hello.txt', 'r') and then
  # fread(buffer, sizeof(char), 30, hello_txt_file), the buffer would contain
  # the string from the file, except four symbolic bytes where the name would be
  # stored.
  # (!)
  password = claripy.BVS('password', symbolic_file_size_bytes * 8)

  # Construct the symbolic file. The file_options parameter specifies the Linux
  # file permissions (read, read/write, execute etc.) The content parameter
  # specifies from where the stream of data should be supplied. If content is
  # an instance of SimSymbolicMemory (we constructed one above), the stream will
  # contain the contents (including any symbolic contents) of the memory,
  # beginning from address zero.
  # Set the content parameter to our BVS instance that holds the symbolic data.
  # (!)
  password_file = angr.storage.SimFile(filename, content=password)

  # Add the symbolic file we created to the symbolic filesystem.
  initial_state.fs.insert(filename, password_file)

  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    print(stdout_output)
    return b'Good Job.' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Try again.' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]

    solution = solution_state.solver.eval(password,cast_to=bytes).decode()

    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

# The binary asks for a 16 character password to which is applies a complex
# function and then compares with a reference string with the function
# check_equals_[reference string]. (Decompile the binary and take a look at it!)
# The source code for this function is provided here. However, the reference
# string in your version will be different than AABBCCDDEEFFGGHH:
#
# #define REFERENCE_PASSWORD = "AABBCCDDEEFFGGHH";
# int check_equals_AABBCCDDEEFFGGHH(char* to_check, size_t length) {
#   uint32_t num_correct = 0;
#   for (int i=0; i<length; ++i) {
#     if (to_check[i] == REFERENCE_PASSWORD[i]) {
#       num_correct += 1;
#     }
#   }
#   return num_correct == length;
# }
#
# ...
#
# char* input = user_input();
# char* encrypted_input = complex_function(input);
# if (check_equals_AABBCCDDEEFFGGHH(encrypted_input, 16)) {
#   puts("Good Job.");
# } else {
#   puts("Try again.");
# }
#
# The function checks if *to_check == "AABBCCDDEEFFGGHH". Verify this yourself.
# While you, as a human, can easily determine that this function is equivalent
# to simply comparing the strings, the computer cannot. Instead the computer
# would need to branch every time the if statement in the loop was called (16
# times), resulting in 2^16 = 65,536 branches, which will take too long of a
# time to evaluate for our needs.
#
# We do not know how the complex_function works, but we want to find an input
# that, when modified by complex_function, will produce the string:
# AABBCCDDEEFFGGHH.
#
# In this puzzle, your goal will be to stop the program before this function is
# called and manually constrain the to_check variable to be equal to the
# password you identify by decompiling the binary. Since, you, as a human, know
# that if the strings are equal, the program will print "Good Job.", you can
# be assured that if the program can solve for an input that makes them equal,
# the input will be the correct password.

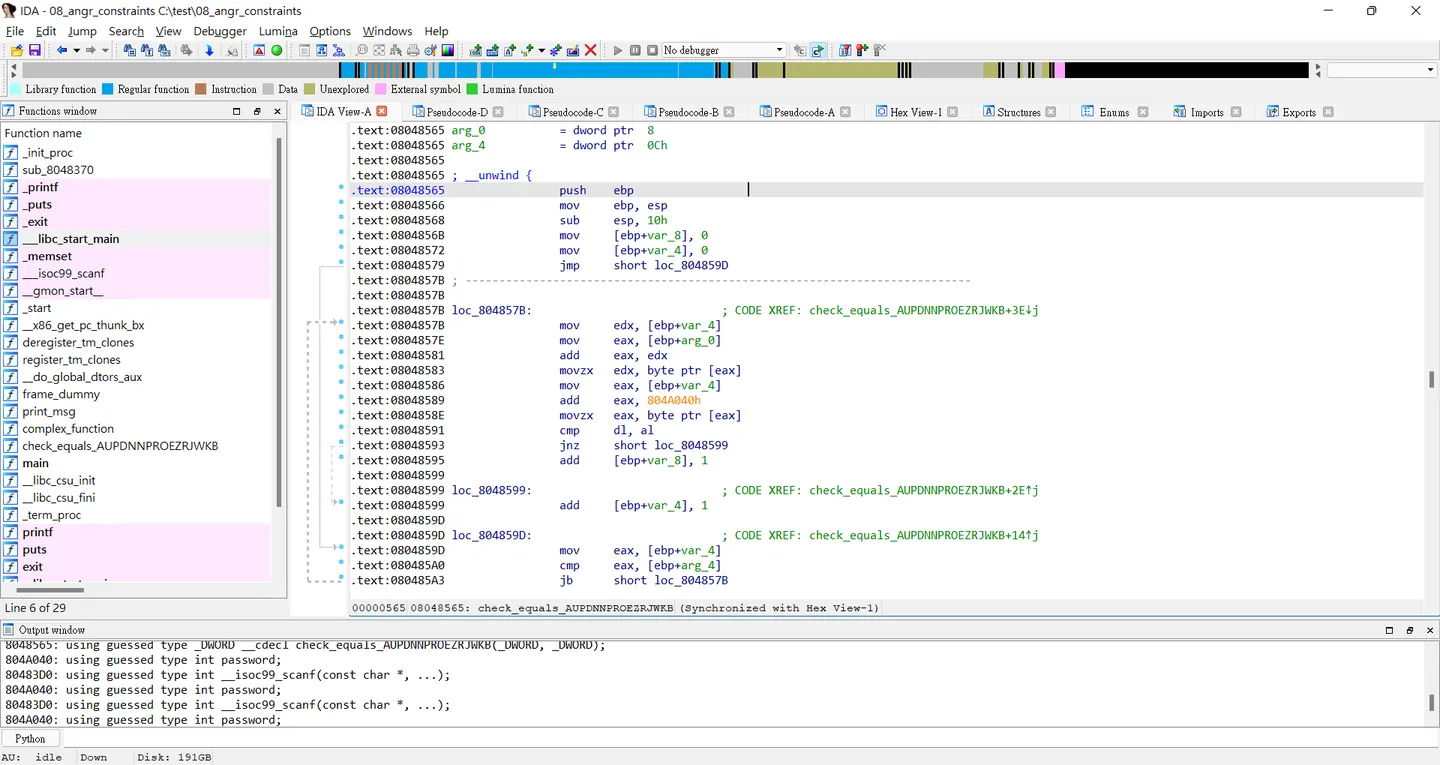

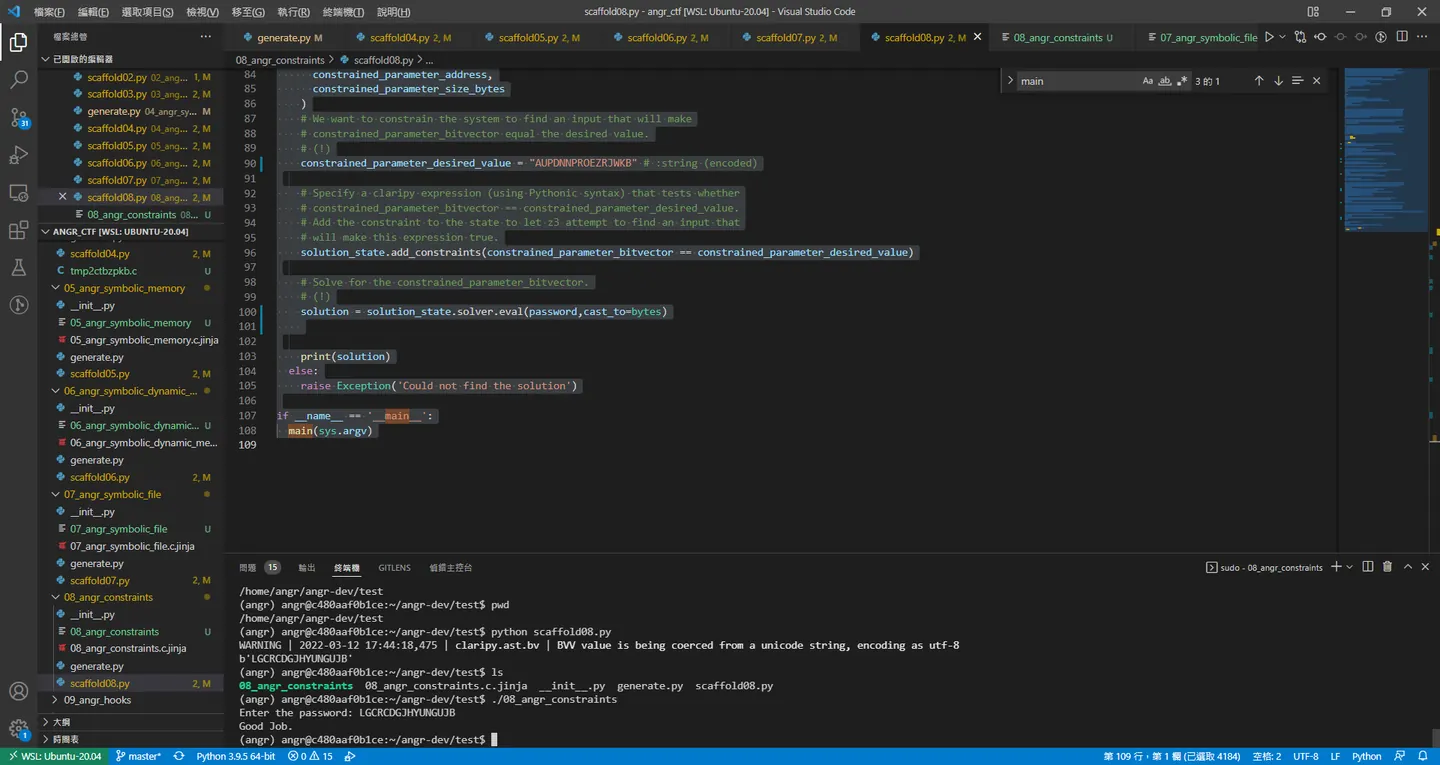

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/08_angr_constraints"
  project = angr.Project(path_to_binary)

  start_address = 0x08048625
  initial_state = project.factory.blank_state(
    addr=start_address,
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

  password = claripy.BVS('password', 16*8)

  password_address = 0x0804A050
  initial_state.memory.store(password_address, password)

  simulation = project.factory.simgr(initial_state)

  # Angr will not be able to reach the point at which the binary prints out
  # 'Good Job.'. We cannot use that as the target anymore.
  # (!)
  address_to_check_constraint = 0x08048565
  simulation.explore(find=address_to_check_constraint)

  if simulation.found:
    solution_state = simulation.found[0]

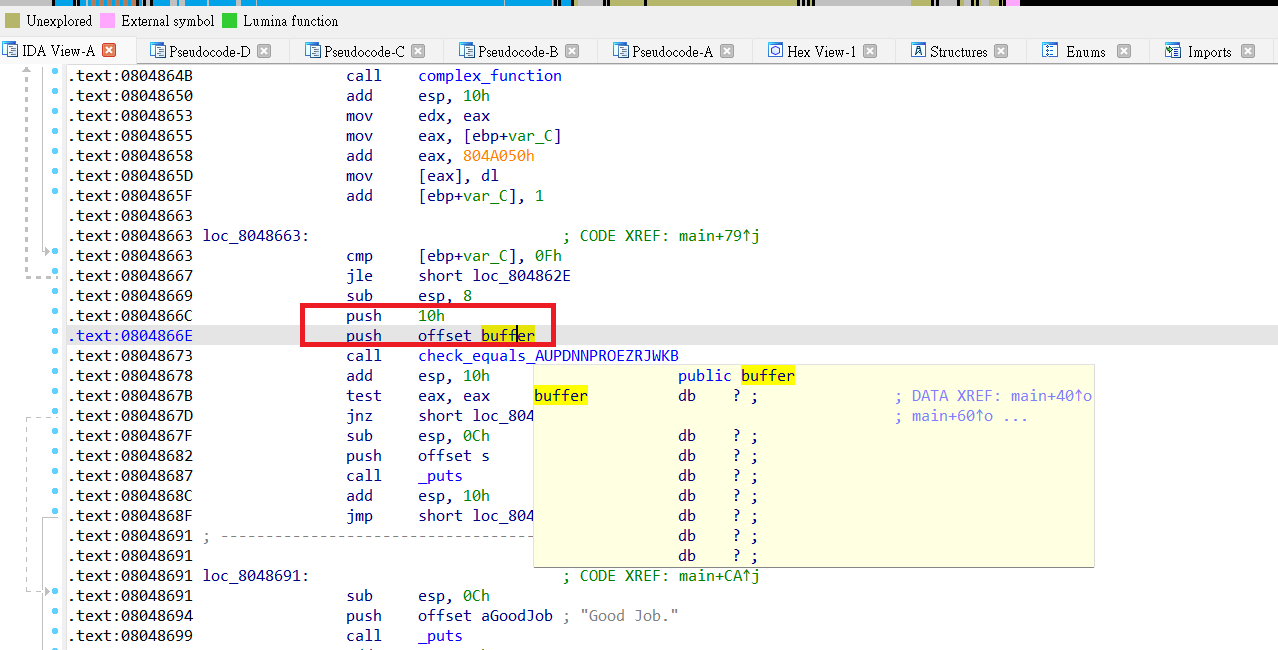

    # Recall that we need to constrain the to_check parameter (see top) of the
    # check_equals_ function. Determine the address that is being passed as the
    # parameter and load it into a bitvector so that we can constrain it.
    # (!)
    constrained_parameter_address = password_address
    constrained_parameter_size_bytes = 0x10
    constrained_parameter_bitvector = solution_state.memory.load(
      constrained_parameter_address,
      constrained_parameter_size_bytes
    )
    # We want to constrain the system to find an input that will make
    # constrained_parameter_bitvector equal the desired value.
    # (!)
    constrained_parameter_desired_value = "AUPDNNPROEZRJWKB" # :string (encoded)

    # Specify a claripy expression (using Pythonic syntax) that tests whether
    # constrained_parameter_bitvector == constrained_parameter_desired_value.
    # Add the constraint to the state to let z3 attempt to find an input that
    # will make this expression true.
    solution_state.add_constraints(constrained_parameter_bitvector == constrained_parameter_desired_value)

    # Solve for the constrained_parameter_bitvector.
    # (!)
    solution = solution_state.solver.eval(password,cast_to=bytes)


    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)

# This level performs the following computations:
#
# 1. Get 16 bytes of user input and encrypt it.
# 2. Save the result of check_equals_AABBCCDDEEFFGGHH (or similar)
# 3. Get another 16 bytes from the user and encrypt it.
# 4. Check that it's equal to a predefined password.
#
# The ONLY part of this program that we have to worry about is #2. We will be
# replacing the call to check_equals_ with our own version, using a hook, since
# check_equals_ will run too slowly otherwise.

import angr
import claripy
import sys

def main(argv):
  path_to_binary = "/home/angr/angr-dev/test/09_angr_hooks"
  project = angr.Project(path_to_binary)

  # Since Angr can handle the initial call to scanf, we can start from the
  # beginning.
  initial_state = project.factory.entry_state(
    add_options = { angr.options.SYMBOL_FILL_UNCONSTRAINED_MEMORY,
                    angr.options.SYMBOL_FILL_UNCONSTRAINED_REGISTERS}
  )

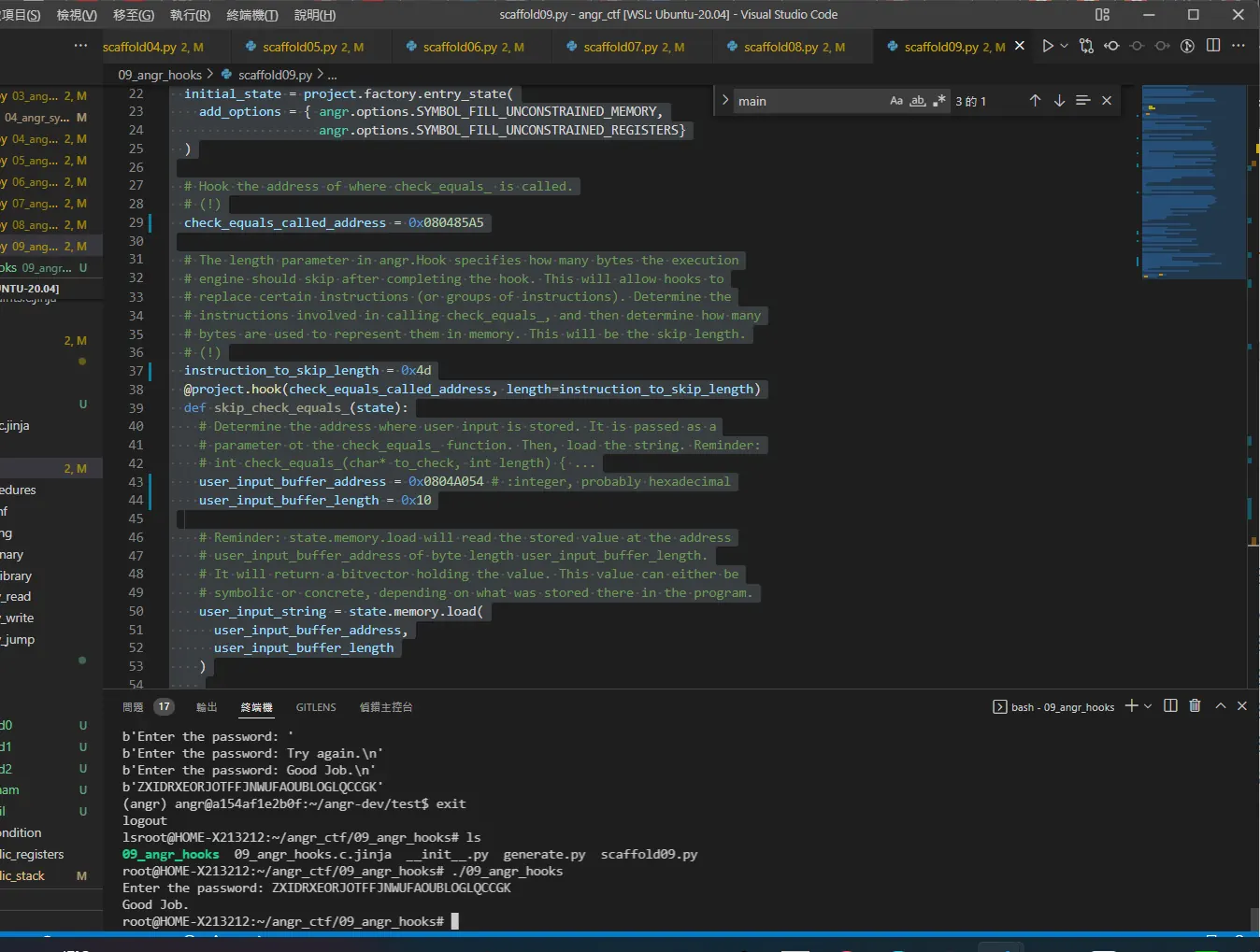

  # Hook the address of where check_equals_ is called.
  # (!)
  check_equals_called_address = 0x080485A5

  # The length parameter in angr.Hook specifies how many bytes the execution
  # engine should skip after completing the hook. This will allow hooks to
  # replace certain instructions (or groups of instructions). Determine the
  # instructions involved in calling check_equals_, and then determine how many
  # bytes are used to represent them in memory. This will be the skip length.
  # (!)
  instruction_to_skip_length = 0x4d
  @project.hook(check_equals_called_address, length=instruction_to_skip_length)
  def skip_check_equals_(state):
    # Determine the address where user input is stored. It is passed as a
    # parameter ot the check_equals_ function. Then, load the string. Reminder:
    # int check_equals_(char* to_check, int length) { ...
    user_input_buffer_address = 0x0804A054 # :integer, probably hexadecimal
    user_input_buffer_length = 0x10

    # Reminder: state.memory.load will read the stored value at the address
    # user_input_buffer_address of byte length user_input_buffer_length.
    # It will return a bitvector holding the value. This value can either be
    # symbolic or concrete, depending on what was stored there in the program.
    user_input_string = state.memory.load(
      user_input_buffer_address,
      user_input_buffer_length
    )

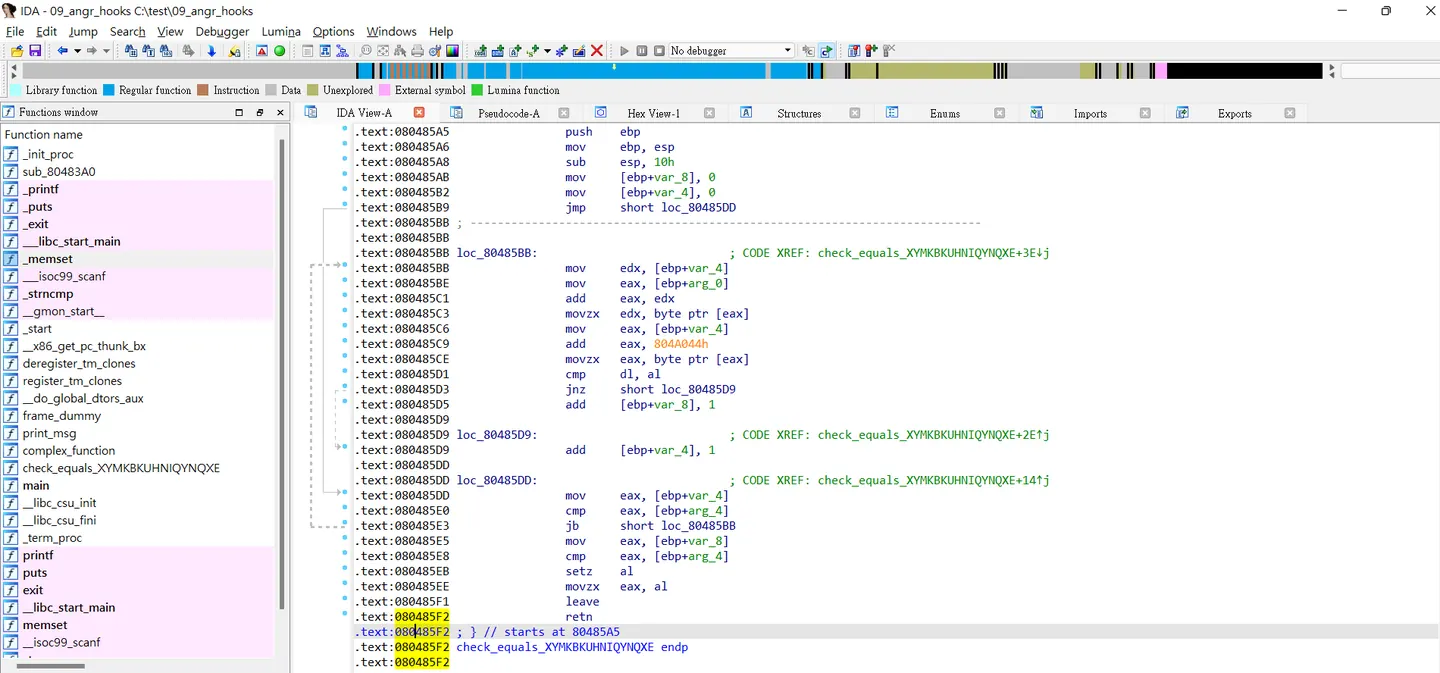

    # Determine the string this function is checking the user input against.
    # It's encoded in the name of this function; decompile the program to find
    # it.
    check_against_string = "XYMKBKUHNIQYNQXE" # :string

    # gcc uses eax to store the return value, if it is an integer. We need to
    # set eax to 1 if check_against_string == user_input_string and 0 otherwise.
    # However, since we are describing an equation to be used by z3 (not to be
    # evaluated immediately), we cannot use Python if else syntax. Instead, we
    # have to use claripy's built in function that deals with if statements.
    # claripy.If(expression, ret_if_true, ret_if_false) will output an
    # expression that evaluates to ret_if_true if expression is true and
    # ret_if_false otherwise.
    # Think of it like the Python "value0 if expression else value1".
    state.regs.eax = claripy.If(
      user_input_string == check_against_string,
      claripy.BVV(1, 32),
      claripy.BVV(0, 32)
    )

  simulation = project.factory.simgr(initial_state)

  def is_successful(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    print(stdout_output)
    return b'Good Job.' in stdout_output

  def should_abort(state):
    stdout_output = state.posix.dumps(sys.stdout.fileno())
    return b'Try again.' in stdout_output  # :boolean

  simulation.explore(find=is_successful, avoid=should_abort)

  if simulation.found:
    solution_state = simulation.found[0]

    # Since we are allowing Angr to handle the input, retrieve it by printing
    # the contents of stdin. Use one of the early levels as a reference.
    # for i in simulation.found:
    #         solution_state = i
    #         solution = solution_state.posix.dumps(0)
    #         print("[+] Success! Solution is: {0}".format(solution.decode('utf-8')))
    solution = solution_state.posix.dumps(sys.stdin.fileno())
    print(solution)
  else:
    raise Exception('Could not find the solution')

if __name__ == '__main__':
  main(sys.argv)
