mini-docker

最近看到docker 又看到了podman 突然想了解一下容器底層到底如何實現，整體步驟參考 https://coolshell.cn/articles/17010.html 還蠻清晰的，透過linux namespace最後可以看到用簡單的c語言就可以實現一個container 概念

code
#define _GNU_SOURCE
#include <sys/types.h>
#include <sys/wait.h>
#include <stdio.h>
#include <sched.h>
#include <signal.h>
#include <unistd.h>

/* 定义一个给 clone 用的栈，栈大小1M */
#define STACK_SIZE (1024 * 1024)
static char container_stack[STACK_SIZE];
char *const container_args[] = {
    "/bin/bash",
    NULL};
char *const container_args2[] = {
    "/usr/sbin/chroot",
    NULL};
int pipefd[2];
void set_map(char *file, int inside_id, int outside_id, int len)
{
    FILE *mapfd = fopen(file, "w");
    if (NULL == mapfd)
    {
        perror("open file error");
        return;
    }
    fprintf(mapfd, "%d %d %d", inside_id, outside_id, len);
    fclose(mapfd);
}
void set_uid_map(pid_t pid, int inside_id, int outside_id, int len)
{
    char file[256];
    sprintf(file, "/proc/%d/uid_map", pid);
    set_map(file, inside_id, outside_id, len);
}
void set_gid_map(pid_t pid, int inside_id, int outside_id, int len)
{
    char file[256];
    sprintf(file, "/proc/%d/gid_map", pid);
    set_map(file, inside_id, outside_id, len);
}

int container_main(void *arg)
{
    printf("Container [%5d] - inside the container!\n", getpid());
    printf("Container: eUID = %ld;  eGID = %ld, UID=%ld, GID=%ld\n",
           (long)geteuid(), (long)getegid(), (long)getuid(), (long)getgid());
    /* 等待父进程通知后再往下执行（进程间的同步） */
    char ch;

    close(pipefd[1]);

    read(pipefd[0], &ch, 1);

    printf("Container [%5d] - setup hostname!\n", getpid());
    sethostname("container", 10);
    if (chdir("./rootfs") != 0 || chroot("./") != 0)
    {
        perror("chdir/chroot");
    }


    mount("proc", "/proc", "proc", 0, NULL);

    execv(container_args[0], container_args);

    printf("Something's wrong!\n");
    return 1;
}
int main()
{
    const int gid = getgid(), uid = getuid();
    printf("Parent: eUID = %ld;  eGID = %ld, UID=%ld, GID=%ld\n",
           (long)geteuid(), (long)getegid(), (long)getuid(), (long)getgid());
    pipe(pipefd);

    printf("Parent [%5d] - start a container!\n", getpid());

    /* 启用Mount Namespace - 增加CLONE_NEWNS参数 */
    int container_pid = clone(container_main, container_stack + STACK_SIZE,
                            CLONE_NEWIPC|  CLONE_NEWUTS | CLONE_NEWPID | CLONE_NEWNS | CLONE_NEWUSER | SIGCHLD, NULL);

    printf("Parent [%5d] - Container [%5d]!\n", getpid(), container_pid);
    set_uid_map(container_pid, 0, uid, 1);
    set_gid_map(container_pid, 0, gid, 1);
    printf("Parent [%5d] - user/group mapping done!\n", getpid());
    /* 通知子进程 */
    close(pipefd[1]);

    waitpid(container_pid, NULL, 0);
    printf("Parent - container stopped!\n");
    return 0;
}

rootfs

將要放入container 的 執行檔案與所需的 lib 放入 想對應的資料夾內，以這個例子為

code
mkdir bin
cp /bin/bash

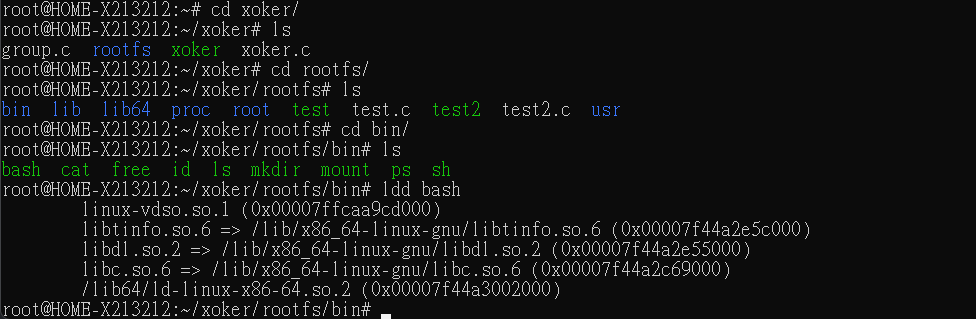

ldd ./bash

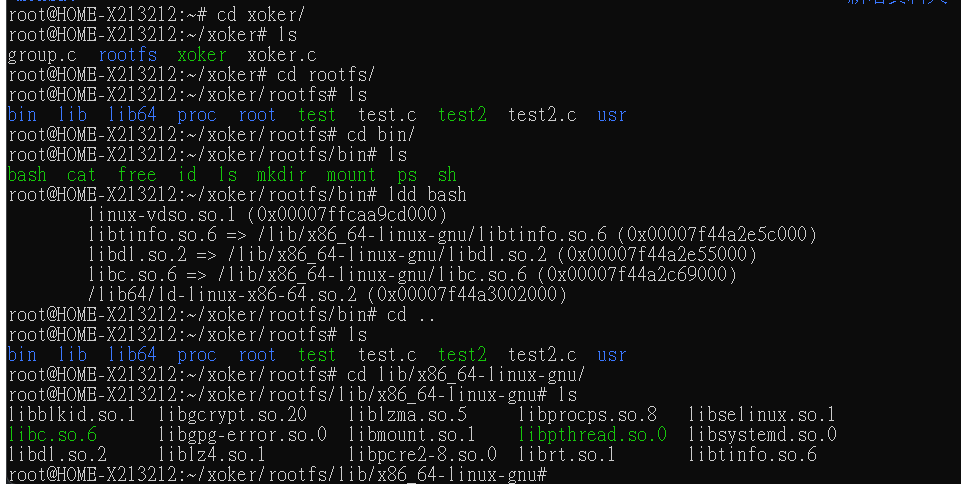

將這些lib 複製到 rootfs 資料夾下

code
        linux-vdso.so.1 (0x00007ffcaa9cd000)
        libtinfo.so.6 => /lib/x86_64-linux-gnu/libtinfo.so.6 (0x00007f44a2e5c000)
        libdl.so.2 => /lib/x86_64-linux-gnu/libdl.so.2 (0x00007f44a2e55000)
        libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007f44a2c69000)
        /lib64/ld-linux-x86-64.so.2 (0x00007f44a3002000)

當上述程式執行後會以rootfs這個資料夾為根目錄，並限制於這個資料夾。

cgroup

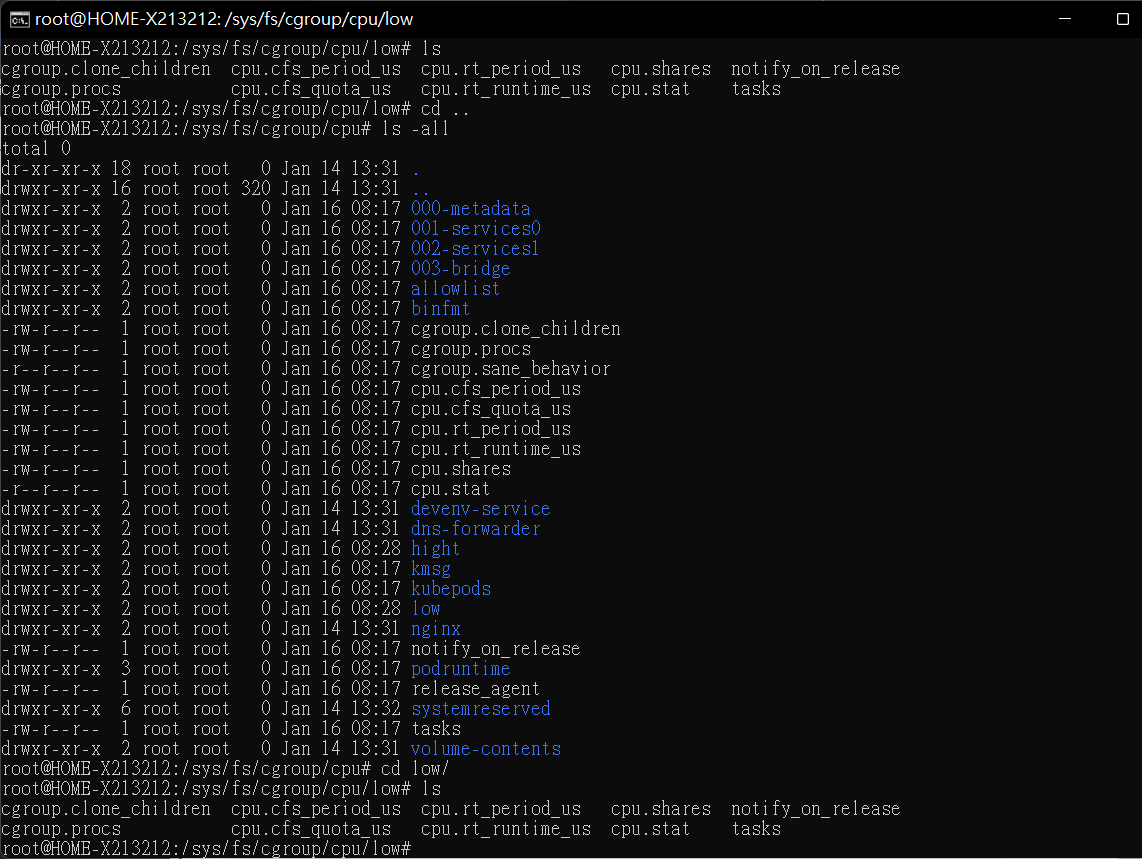

我們來加點東西，限制容器資源大小 https://www.cnblogs.com/sparkdev/p/8296063.html http://guildwar23.blogspot.com/2013/01/linux-control-group.html https://www.cntofu.com/book/114/Cgroups/cgroups1.md 於/sys/fs/cgroup/cpu 創建兩個資料夾

code
mkdir  hight
mkdir  low

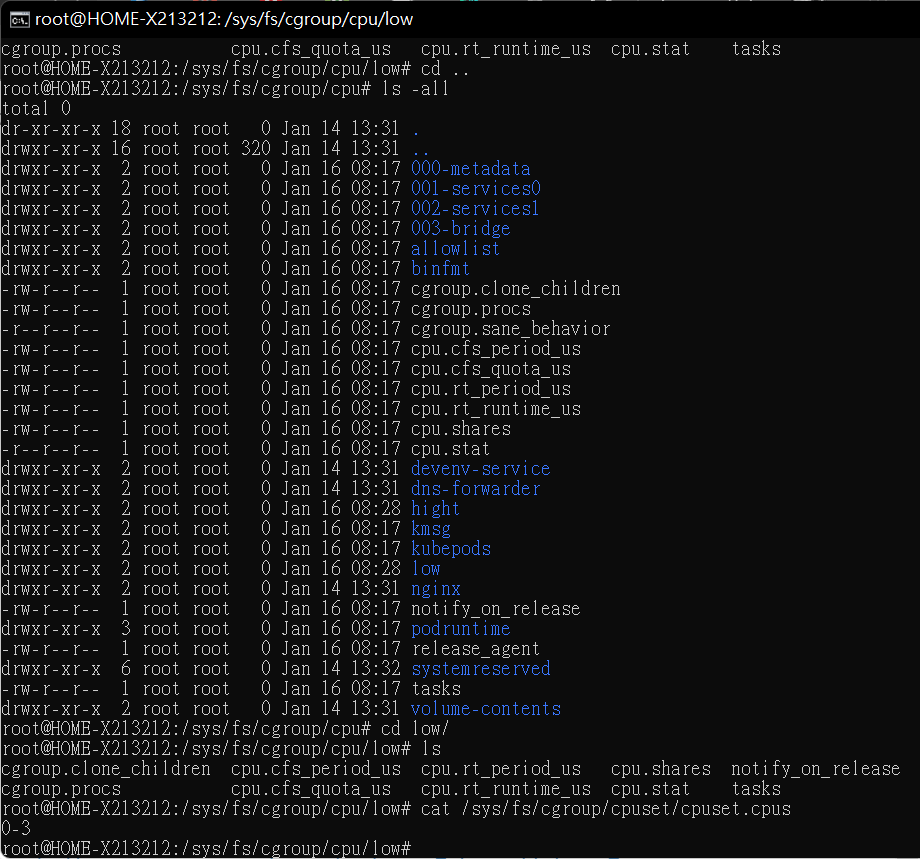

查看現有核心數量

code
 cat /sys/fs/cgroup/cpuset/cpuset.cpus

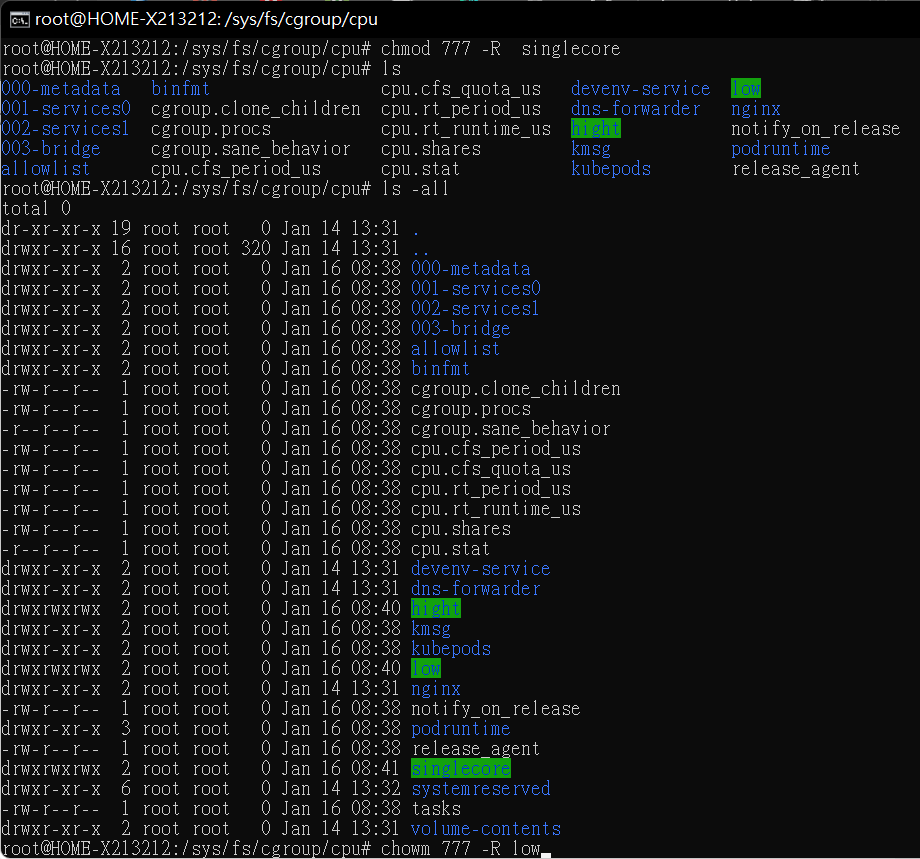

wsl 資料夾全部設為最高權限，用了文章中的mkdir 在寫入檔案時會發生權限問題 改用 cgcreate 來創造cgroup

code
chowm 777 -R low
chowm 777 -R hight
chowm 777 -R singlecore
 cgcreate -g cpu:low
 cgcreate -g cpu:hight
cgcreate -g cpuset:singlecore
code
 chown root:root -R /sys/fs/cgroup/cpu/low
 echo 512 > /sys/fs/cgroup/cpu/low/cpu.shares
 chown root:root -R /sys/fs/cgroup/cpu/hight
 echo 2048 > /sys/fs/cgroup/cpu/hight/cpu.shares
 echo "0-1" > /sys/fs/cgroup/cpuset/low/cpuset.cpus


chown root:root -R /sys/fs/cgroup/cpuset/singlecore

echo 0 > /sys/fs/cgroup/cpuset/singlecore/cpuset.mems
echo 0 > /sys/fs/cgroup/cpuset/singlecore/cpuset.cpus

設為共用同一個核心

test file

code
#include <stdio.h>
int main(){
    int i , end;
    end = 1024*1024*1024;
    for(i =  0 ; i < end;)
    {
    //++;
    }
}

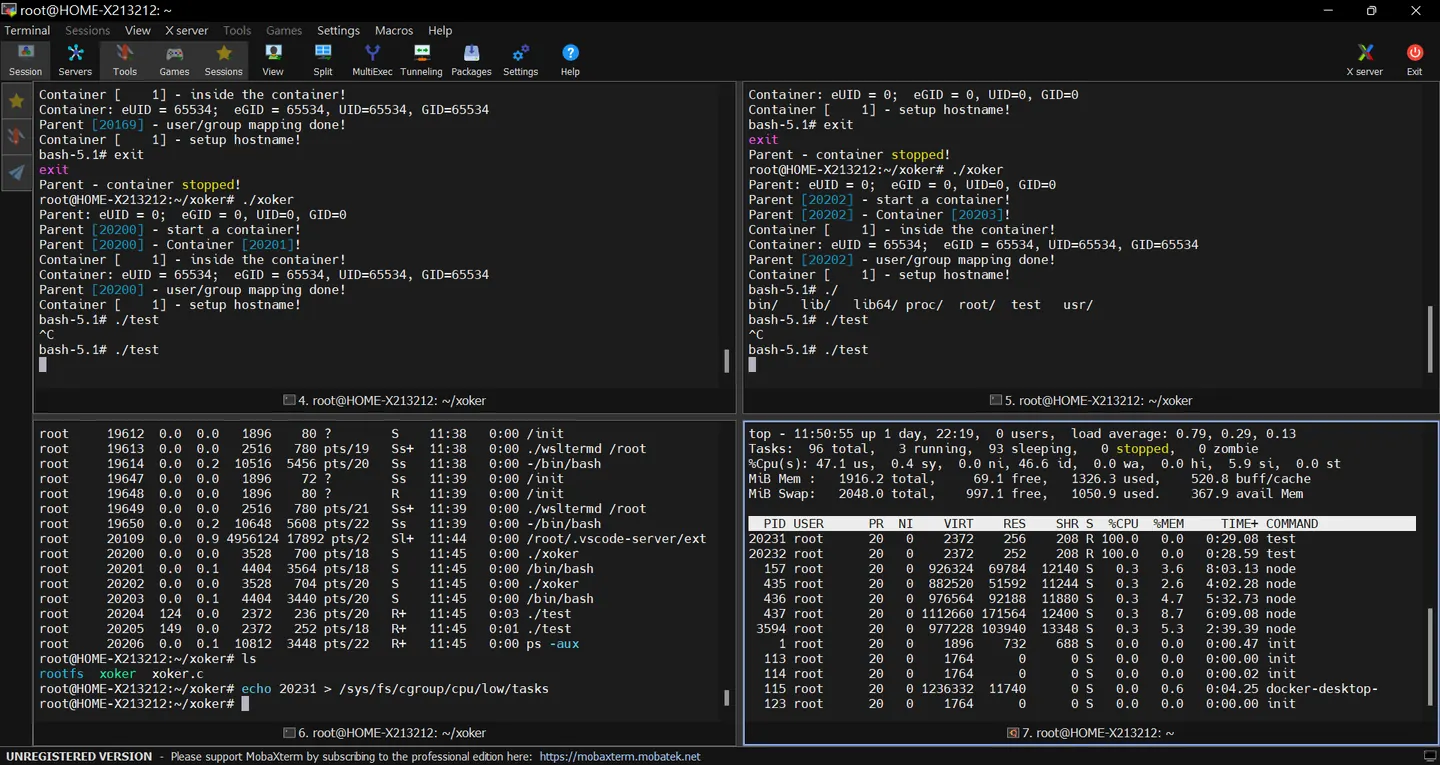

根據前面的權重 512:2048 1:4 在同一顆cpu 裡面 20232 佔80 ,20231 佔 20

code
echo 20231 >/sys/fs/cgroup/cpuset/singlecore/tasks
echo 20232 >/sys/fs/cgroup/cpuset/singlecore/tasks

cgdelete   cpu:/low
cgdelete   cpu:/hight

調整memory

test2 file

code
#include<stdio.h>
#include<stdlib.h>
#include<string.h>
#include <unistd.h>

#define CHUNK_SIZE 1024 * 1024 * 1

void main()
{
    char *p;
    int i;

    for(i = 0; i < 100; i ++)
    {
        p = malloc(sizeof(char) * CHUNK_SIZE);
        if(p == NULL)
        {
            printf("fail to malloc!");
            return ;
        }
        sleep(1); // 1s
        // memset() 函数用来将指定内存的前 n 个字节设置为特定的值
        memset(p, 0, CHUNK_SIZE);
        printf("malloc memory %d MB\n", (i + 1) * 1);
    }
}

調整記憶體上限為10M Bytes

code
mkdir /sys/fs/cgroup/memory/mymemory
chown -R root:root /sys/fs/cgroup/memory/mymemory
記憶體限制 10mb
echo 10000000 > /sys/fs/cgroup/memory/mymemory/memory.limit_in_bytes
關閉swap
echo 0 > /sys/fs/cgroup/memory/mymemory/memory.swappiness

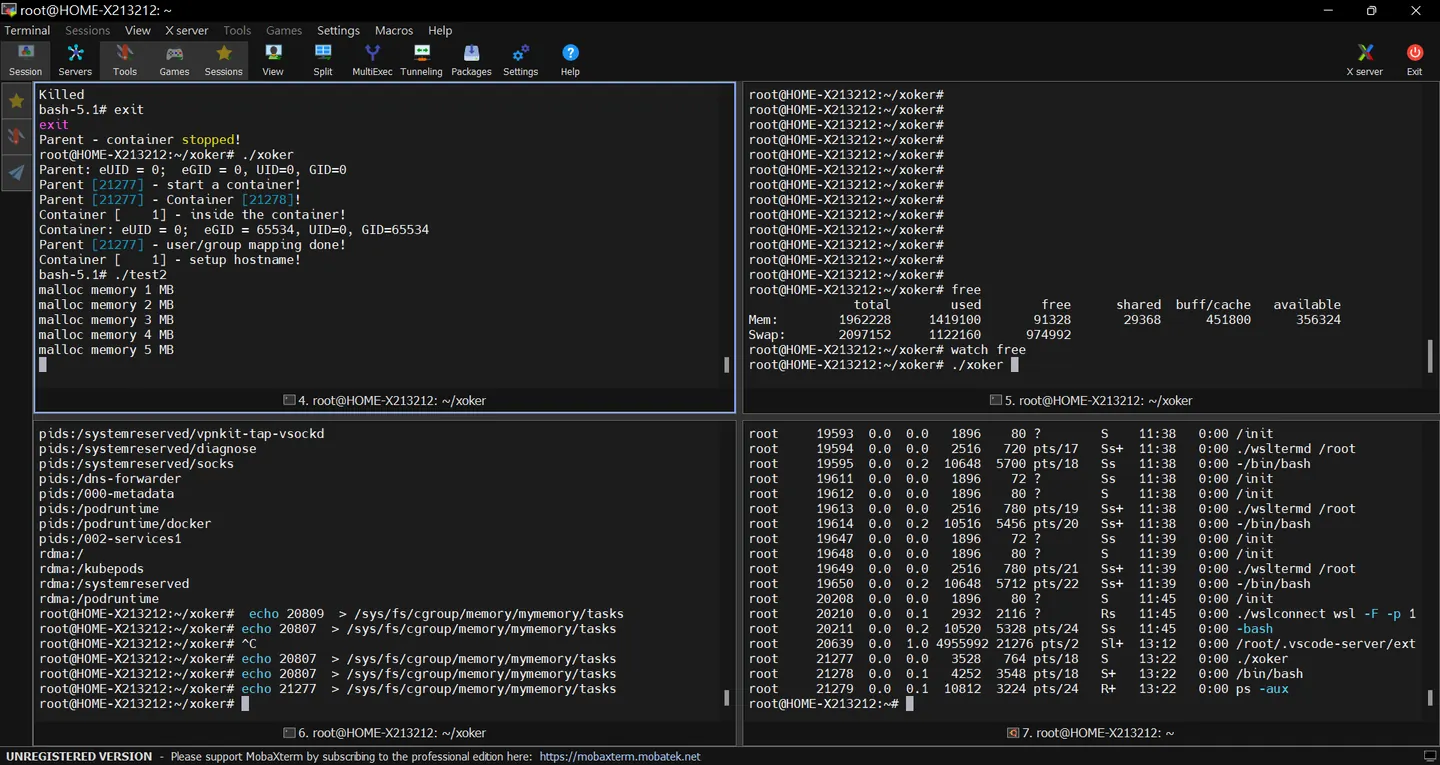

echo 20807 > /sys/fs/cgroup/memory/mymemory/tasks

再往上一層，可以看到 bash 只要是child process 這樣就可以大致算一個cgroup

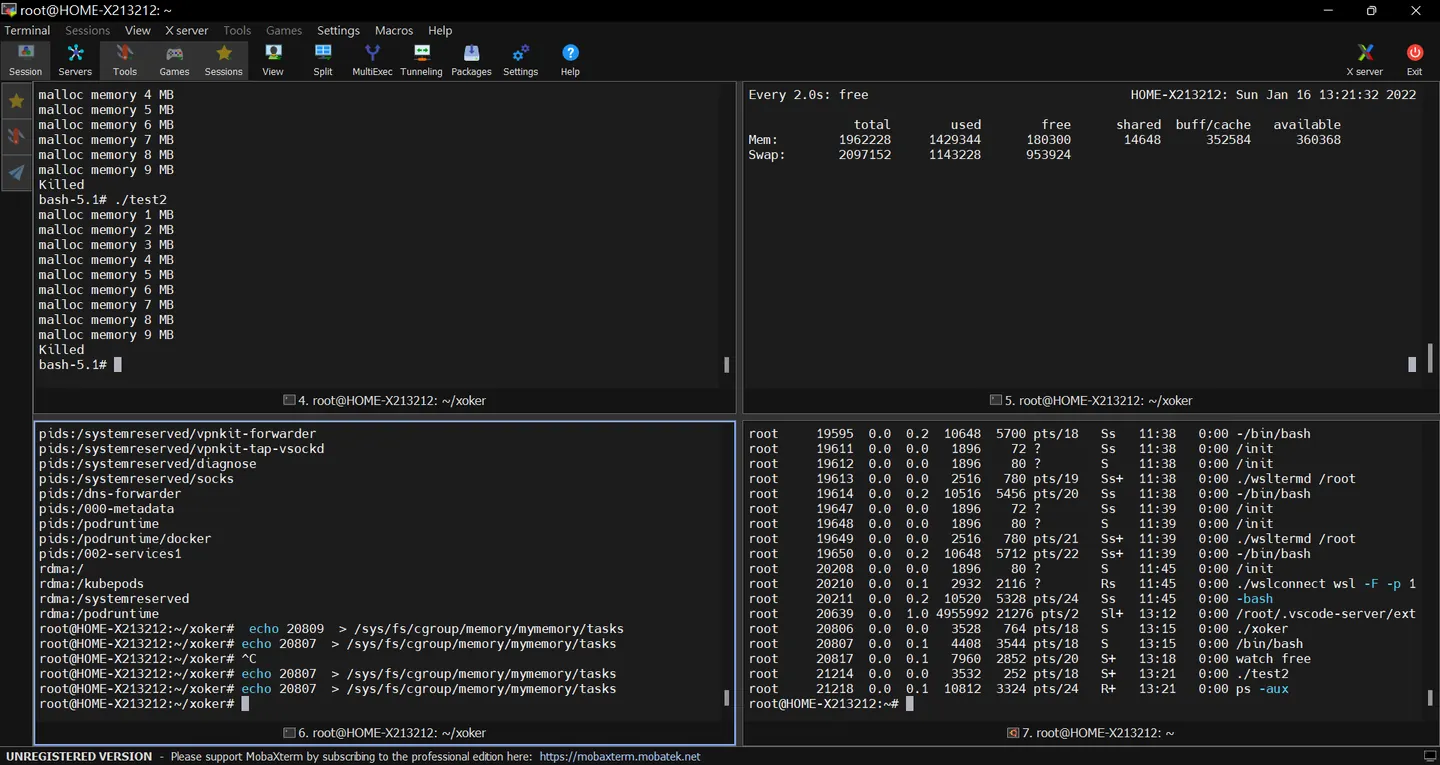

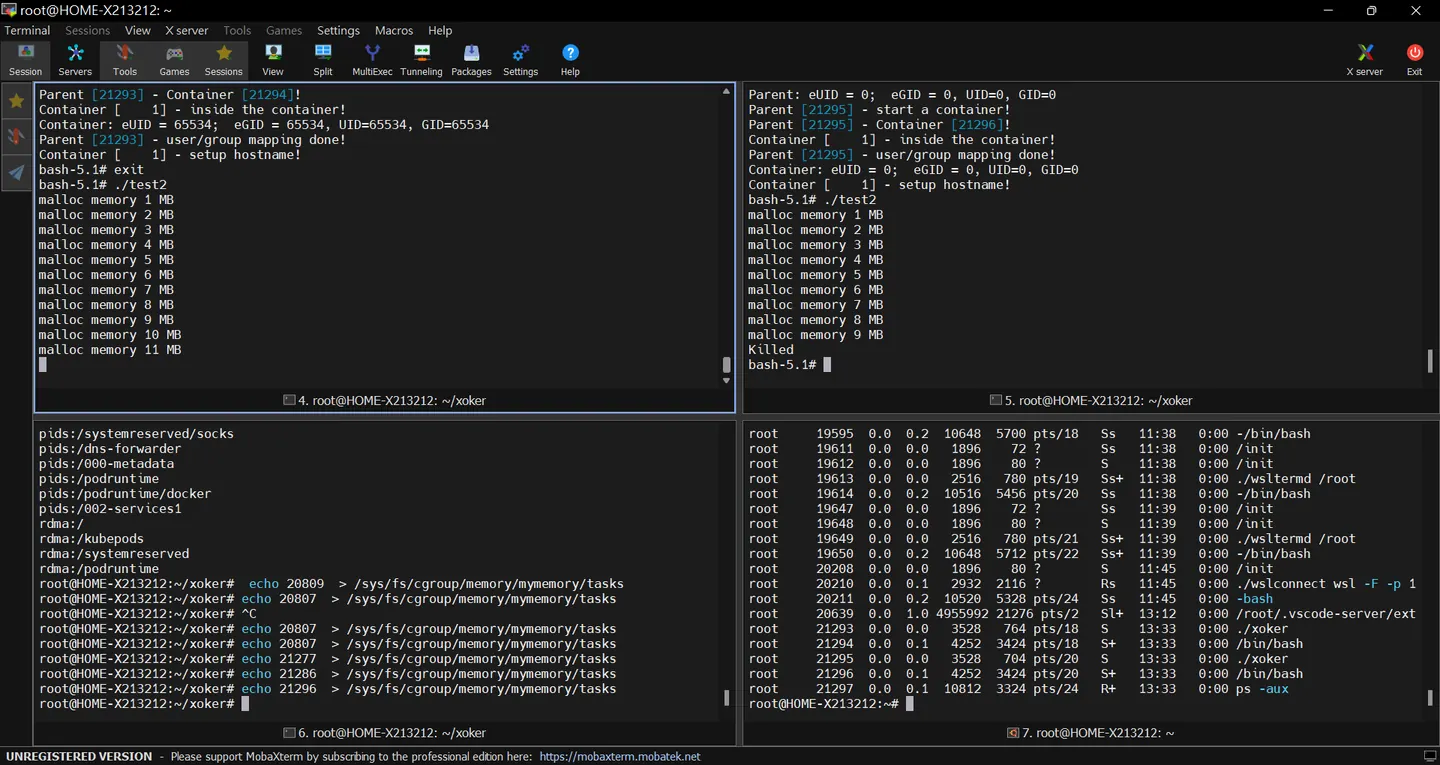

關閉 swap 可以看到 process 直接被 kill 到這邊就可以透過 cgroup 分別控管容器。

其他參考

透過 systemd 控制 cgroup

https://www.cnblogs.com/sparkdev/p/9523194.html

code
ps --ppid 20203
apt install cgroup-tools

創建臨時cgroup

code
sudo systemd-run --unit=toptest --slice=test top -b
code
ls \-l /proc/?/ns

可以看到它會自動產生一些配置

https://www.waynerv.com/posts/container-fundamentals-resource-limitation-using-cgroups/

https://www.cntofu.com/book/46/linux_system/pipehe_fifo.md

https://coolshell.cn/articles/17010.html
