mini-riscv-os vga Conway's Game of Life

前面作者實現了碎形圖 https://zh.wikipedia.org/wiki/%E5%88%86%E5%BD%A2 那我們就來在上面實現一個生命遊戲 https://en.wikipedia.org/wiki/Conway%27s_Game_of_Life https://github.com/alnvdl/Life 這是一個簡單的c 生命遊戲可以觀察每一個步驟,我們目前專案,還沒實現動態分配記憶體,contex switch 好像也沒保存記憶體狀態,我們直接把專案中的array 改為 靜態宣告 https://www.geeksforgeeks.org/dynamically-allocate-2d-array-c/

c
#include "os.h"
#include <stdio.h>
#include <stdlib.h>
//#include<string.h>

#define WIDTH 250
#define HEIGHT 200
#define ACTIVE 1
#define INACTIVE 0
#define ACTIVE_SYMBOL '*'
#define INACTIVE_SYMBOL ' '
int *arr[320*200];
void *next[320*200];
void *memset(void *dst, int c, size_t n)
{
    char *q = dst;
    char *end = q + n;
    for (;;)
    {
        if (q >= end)
            break;
        *q++ = (char)c;
        if (q >= end)
            break;
        *q++ = (char)c;
        if (q >= end)
            break;
        *q++ = (char)c;
        if (q >= end)
            break;
        *q++ = (char)c;
    }
    return dst;
}
int count_neighbors(int *board, int x, int y)
{
    /*
    Counts the number os neighbors for a given cell.
        board: the board
        x: the cell's horizontal coordinate
        y: the cell's vertical coordinate
    */

    int i, j, count = 0;

    for (i = -1; i <= 1; i++)
        for (j = -1; j <= 1; j++)
            if (!(i == 0 && j == 0) &&
                (x + i >= 0 && x + i < WIDTH) &&
                (y + j >= 0 && y + j < HEIGHT) &&
                (board[(x + i) * WIDTH + (y + j)] == ACTIVE))
                count++;
    return count;
}

int count_active(int *board)
{
    /*
    Counts the number os active cells on the board.
        board: the board
    */
    int i, j, count = 0;

    for (i = 0; i < WIDTH; i++)
        for (j = 0; j < HEIGHT; j++)
            if (board[i * WIDTH + j] == ACTIVE)
                count++;

    return count;
}

void iter_cell(int *board, int *next, int x, int y)
{
    /*
    Sets the state of the cell based on the game rules.
        board: the curent iteration board
        next: the next iteration board
        x: the cell's horizontal coordinate
        y: the cell's vertical coordinate
    */
    int current_state = board[x * WIDTH + y];
    int n_neighbors = count_neighbors(board, x, y);

    if (current_state == ACTIVE && n_neighbors < 2)
        next[x * WIDTH + y] = INACTIVE;
    else if (current_state == ACTIVE && n_neighbors > 3)
        next[x * WIDTH + y] = INACTIVE;
    else if (current_state == ACTIVE && (n_neighbors == 2 || n_neighbors == 3))
        next[x * WIDTH + y] = ACTIVE;
    else if (current_state == INACTIVE && n_neighbors == 3)
        next[x * WIDTH + y] = ACTIVE;
    else
        next[x * WIDTH + y] = INACTIVE;
}

void init_board(int *arr)
{
    /*
    Initializes the board cells to a inactive state.
        board: the curent iteration board
    */

    for (int i = 0; i < WIDTH ; i++)
    {
        for (int j = 0; j < HEIGHT; j++)
            // lib_printf("%d ", arr[i * y + j]);
            arr[i * WIDTH + j] = 0;
        // lib_printf("\n");
    }
}

void copy_board(int *source, int *destination)
{
    /*
    Copies the a source board cells to a destination board.
        source: the source board
        destination: the destination board
    */

    for (int i = 0; i < WIDTH ; i++)
        for (int j = 0; j < HEIGHT; j++)
            destination[i * WIDTH + j] = source[i * WIDTH + j];
}

void next_iteration(int *arr)
{
    /*
    Iterates the given board to its next state.
        board: the curent iteration board
    */
    // x*y
    //void *next[WIDTH * HEIGHT];
    init_board(next);

    for (int i = 0; i < WIDTH; i++)
        for (int j = 0; j < HEIGHT; j++)
            iter_cell(arr, next, i, j);
    copy_board(next, arr);
}

void print_board(int *arr)
{
    /*
    Outputs the board.
        board: the board
    */

    for (int i = 0; i < WIDTH; i++)
    {
        for (int j = 0; j < HEIGHT; j++)
        {
            if (arr[i * WIDTH + j] == INACTIVE)
                putpixel(i, j, 0x000000);
            // printf("%c ", INACTIVE_SYMBOL);
            else
                putpixel(i, j, 0x0000ff);
            // printf("%c ", ACTIVE_SYMBOL);
        }
        //  printf("\n");
    }
}

void system_clear()
{
    /*
    Clears the output.
    FIXME: not portable
    */
    //    system("clear");

    for (int i = 0; i < WIDTH; i++)
        for (int j = 0; j < HEIGHT; j++)
        {
            putpixel(i, j, 0x000000);
        }
}

void redraw(int *arr, char *shell, int gen_count,
            int active_count)
{
    /*
    Redraws the content of the game.
        board: the board to print
        shell: the message to ask for input
        gen_count: generation (iteration) count
        active_count: the number of active cells
    */
    system_clear();
    // printf("\n%d generations; %d active cells (%dx%d board)\n", gen_count,
    // active_count,
    //                                                               WIDTH, HEIGHT);

    print_board(arr);
    // printf("%s: ", shell);
}

void show_help()
{
}

void show_cell_info(int board[HEIGHT][WIDTH], int x, int y)
{
    int internal_x = (HEIGHT - y), internal_y = (x - 1);
}

void user_task0(void)
{

    lib_puts("Task0: Created!\n");
    lib_puts("Task0: Now, return to kernel mode\n");
    os_kernel();

    while (1)
    {
        lib_puts("Task0: Running...\n");
        lib_delay(10);
        os_kernel();
    }
}

void user_task1(void)
{

    lib_puts("Task1: Created!\n");
    lib_puts("Task1: Now, return to kernel mode\n");
    os_kernel();

    int x =HEIGHT, y =  WIDTH;

    int gen_count = 0, active_count = 0;

    init_board(arr);
    for (int i = 0 ; i <x ; i++)
        for (int j = 0 ; j <y ; j++){
        if((i* y )%2 == 0)
            arr[i* y + j] = 1;
        if((j*x*y*i )%2 == 2)
            arr[i* y + j] = 1;
    }

    arr[20 * y + 20] = 1;
    arr[21 * y + 19] = 1;
    arr[20 * y + 18] = 1;
    arr[21 * y + 18] = 1;
    arr[19 * y + 18] = 1;

    arr[20 * y + 20] = 1;
    arr[21 * y + 19] = 1;
    arr[20 * y + 18] = 1;
    arr[21 * y + 18] = 1;
    arr[19 * y + 18] = 1;

    arr[12 * y + 16] = 1;
    arr[13 * y + 16] = 1;
    arr[14 * y + 16] = 1;

    arr[10 * y + 14] = 1;
    arr[10 * y + 13] = 1;
    arr[10 * y + 12] = 1;

    arr[15 * y + 14] = 1;
    arr[15 * y + 13] = 1;
    arr[15 * y + 12] = 1;

    arr[12 * y + 11] = 1;
    arr[13 * y + 11] = 1;
    arr[14 * y + 11] = 1;

    arr[18 * y + 11] = 1;
    arr[19 * y + 11] = 1;
    arr[20 * y + 11] = 1;

    arr[17 * y + 14] = 1;
    arr[17 * y + 13] = 1;
    arr[17 * y + 12] = 1;

    arr[22 * y + 14] = 1;
    arr[22 * y + 13] = 1;
    arr[22 * y + 12] = 1;

    arr[18 * y + 11] = 1;
    arr[18 * y + 11] = 1;
    arr[18 * y + 11] = 1;

    arr[12 * y + 9] = 1;
    arr[13 * y + 9] = 1;
    arr[14 * y + 9] = 1;

    arr[10 * y + 8] = 1;
    arr[10 * y + 7] = 1;
    arr[10 * y + 6] = 1;

    arr[15 * y + 8] = 1;
    arr[15 * y + 7] = 1;
    arr[15 * y + 6] = 1;

    arr[12 * y + 4] = 1;
    arr[13 * y + 4] = 1;
    arr[14 * y + 4] = 1;

    arr[18 * y + 9] = 1;
    arr[19 * y + 9] = 1;
    arr[20 * y + 9] = 1;

    arr[17 * y + 8] = 1;
    arr[17 * y + 7] = 1;
    arr[17 * y + 6] = 1;

    arr[22 * y + 8] = 1;
    arr[22 * y + 7] = 1;
    arr[22 * y + 6] = 1;

    arr[18 * y + 4] = 1;
    arr[19 * y + 4] = 1;
    arr[20 * y + 4] = 1;
    redraw(arr, "x,y", gen_count, active_count);
    next_iteration(arr);

    // redraw(arr, "x,y", gen_count, active_count);
    // next_iteration(arr);

    while (1)
    {

        lib_puts("Task1: Running...\n");
        lib_delay(10);
        // os_kernel();
        redraw(arr, "x,y", gen_count, active_count);
        next_iteration(arr);
        // next_iteration(board);
        // active_count = count_active(board);
        // gen_count++;
    }
}

void user_init()
{
    task_create(&user_task0);
    task_create(&user_task1);
}

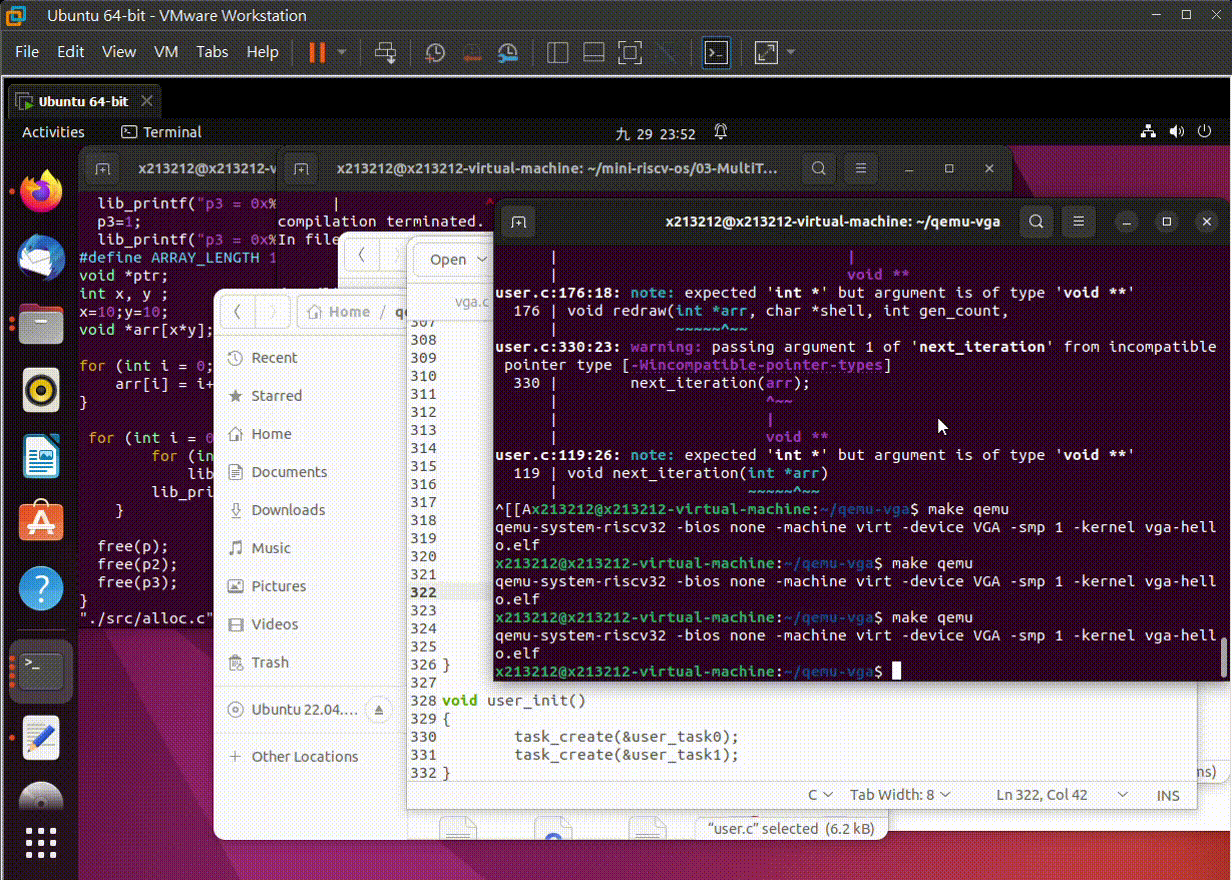

生命遊戲有一個太空船和作者給的範例test case,我們把它直接轉為array 現在我們直接就在這個os上實現一個生命遊戲! https://gist.github.com/x213212/a16312fb476427a14cb63e6484b31ae5

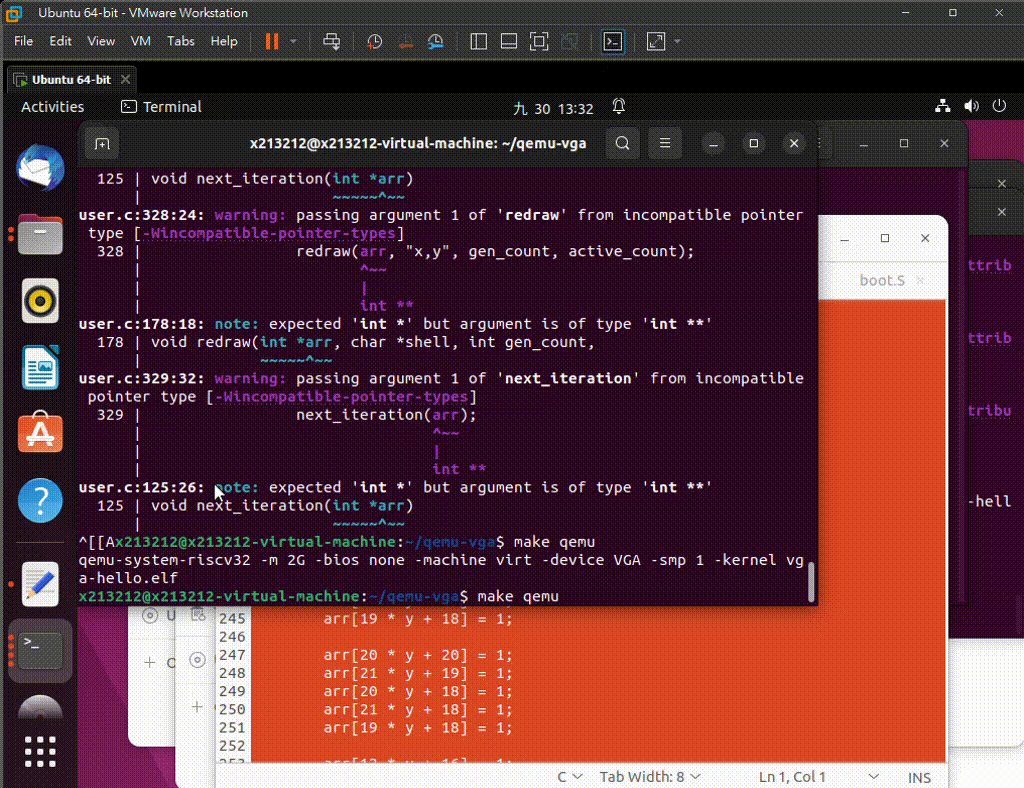

改個解析度
