vibeos

Published 2026-04-21

vibe-os is an integrated RISC-V 32-bit QEMU browser OS. 我覺得我一直在測試ai的極限哈哈，三天把之前做過的專案揉成一個作業系統 Lineage:

Original project: cccriscv/mini-riscv-os
Referenced fork/base: x213212/mini-riscv-os
This integration: vibe-os, based on 08-BlockDeviceDriver, adding GUI networking, WRP, and browser support.

This project extends from the 08-BlockDeviceDriver stage of mini-riscv-os, adding a GUI, networking, NetSurf-style browser frontend, WRP server integration, and modern web browsing capabilities.

Quick Start

The fastest way is to download, enter the project, and start QEMU from the host shell:

# Host shell
git clone https://github.com/x213212/vibeos.git
cd vibeos
make ENABLE_AUDIO=1 qemu

If you want to use the WRP browser included in this version, you also need to start tap0 and the WRP server on the host first; detailed instructions are below.

Commands

Host Shell

These commands are executed in the Linux shell outside of QEMU.

Configure QEMU tap network:

# Host shell
sudo ip tuntap add dev tap0 mode tap user "$USER" 2>/dev/null || true
sudo ip addr flush dev tap0
sudo ip addr add 192.168.123.100/24 dev tap0
sudo ip link set tap0 up

Compile mbedTLS static libs (only needed for the first build or when mbedTLS source updates):

# Host shell
rm -rf /tmp/mbedtls-rv-build

cmake -S ./third_party/mbedtls \
  -B /tmp/mbedtls-rv-build \
  -G "Unix Makefiles" \
  -DCMAKE_SYSTEM_NAME=Generic \
  -DCMAKE_TRY_COMPILE_TARGET_TYPE=STATIC_LIBRARY \
  -DCMAKE_C_COMPILER=/usr/bin/riscv64-unknown-elf-gcc \
  -DCMAKE_AR=/usr/bin/riscv64-unknown-elf-ar \
  -DCMAKE_RANLIB=/usr/bin/riscv64-unknown-elf-ranlib \
  -DCMAKE_C_FLAGS="-march=rv32imac -mabi=ilp32 -I$(pwd)" \
  -DENABLE_PROGRAMS=OFF \
  -DENABLE_TESTING=OFF \
  -DGEN_FILES=ON \
  -DUSE_STATIC_MBEDTLS_LIBRARY=ON \
  -DUSE_SHARED_MBEDTLS_LIBRARY=OFF \
  -DUSE_STATIC_TF_PSA_CRYPTO_LIBRARY=ON \
  -DUSE_SHARED_TF_PSA_CRYPTO_LIBRARY=OFF \
  -DMBEDTLS_CONFIG_FILE=$(pwd)/third_party/mbedtls/configs/config-suite-b.h \
  -DMBEDTLS_USER_CONFIG_FILE=$(pwd)/mbedtls_os_config.h \
  -DMBEDTLS_FATAL_WARNINGS=OFF \
  -DMBEDTLS_AS_SUBPROJECT=OFF \
  -DMBEDTLS_TARGET_PREFIX=rv_

cmake --build /tmp/mbedtls-rv-build -j2

Compile the OS:

# Host shell
make -j2 os.elf

Forced rebuild (recommended after modifying headers or third-party source):

# Host shell
make -B -j2 os.elf

Compile WRP server:

# Host shell
cd wrp
GOPATH=/tmp/gopath GOMODCACHE=/tmp/gopath/pkg/mod GOCACHE=/tmp/go-build go build -o wrp ./...

Start WRP server (keep this shell open):

# Host shell, terminal 1
cd wrp
./wrp -l :9999 -b /opt/google/chrome/chrome -ua "" -s 1s

Start QEMU (in another host shell):

# Host shell, terminal 2
make ENABLE_AUDIO=1 qemu

QEMU Guest Shell

These commands are executed in the OS terminal inside the QEMU window, not in the host Linux shell.

View WRP server URL:

text

# QEMU guest shell
wrp status

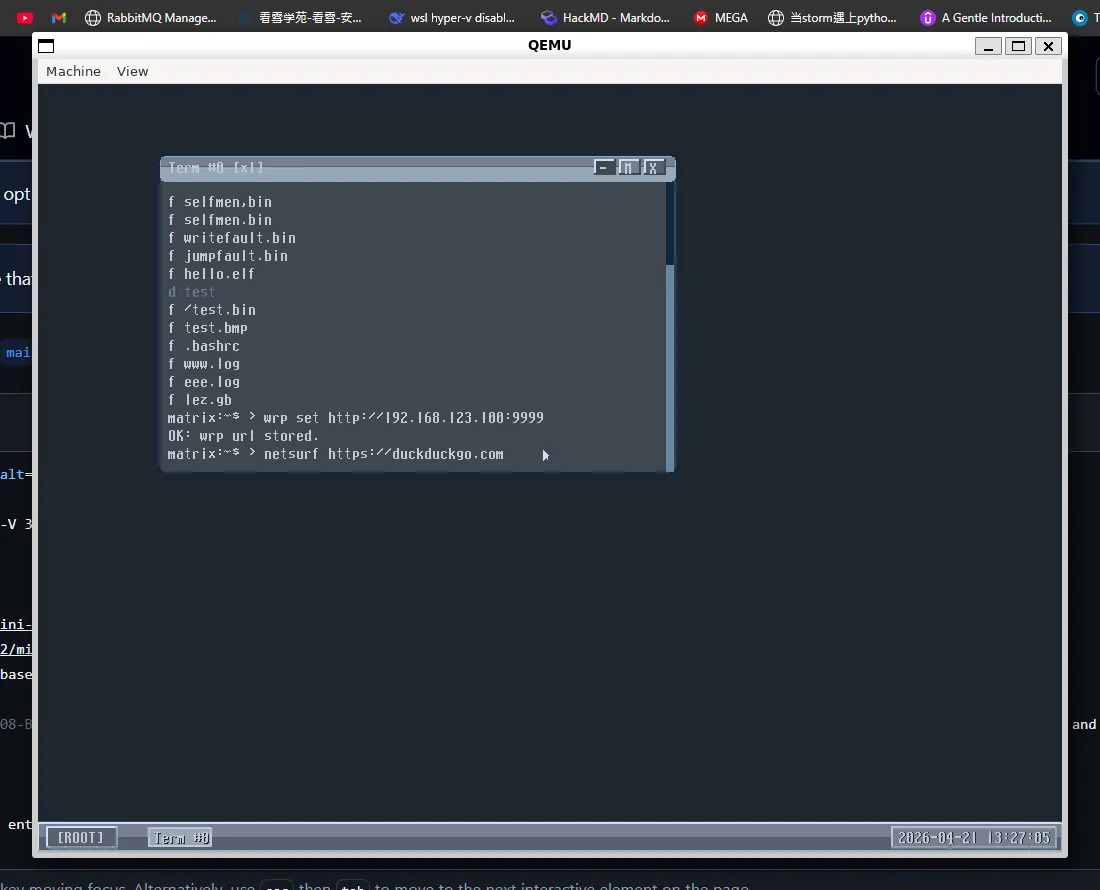

Set WRP server URL:

text

# QEMU guest shell
wrp set http://192.168.123.100:9999

Open WRP browser:

text

# QEMU guest shell
wrp open

Open a website directly:

text

# QEMU guest shell

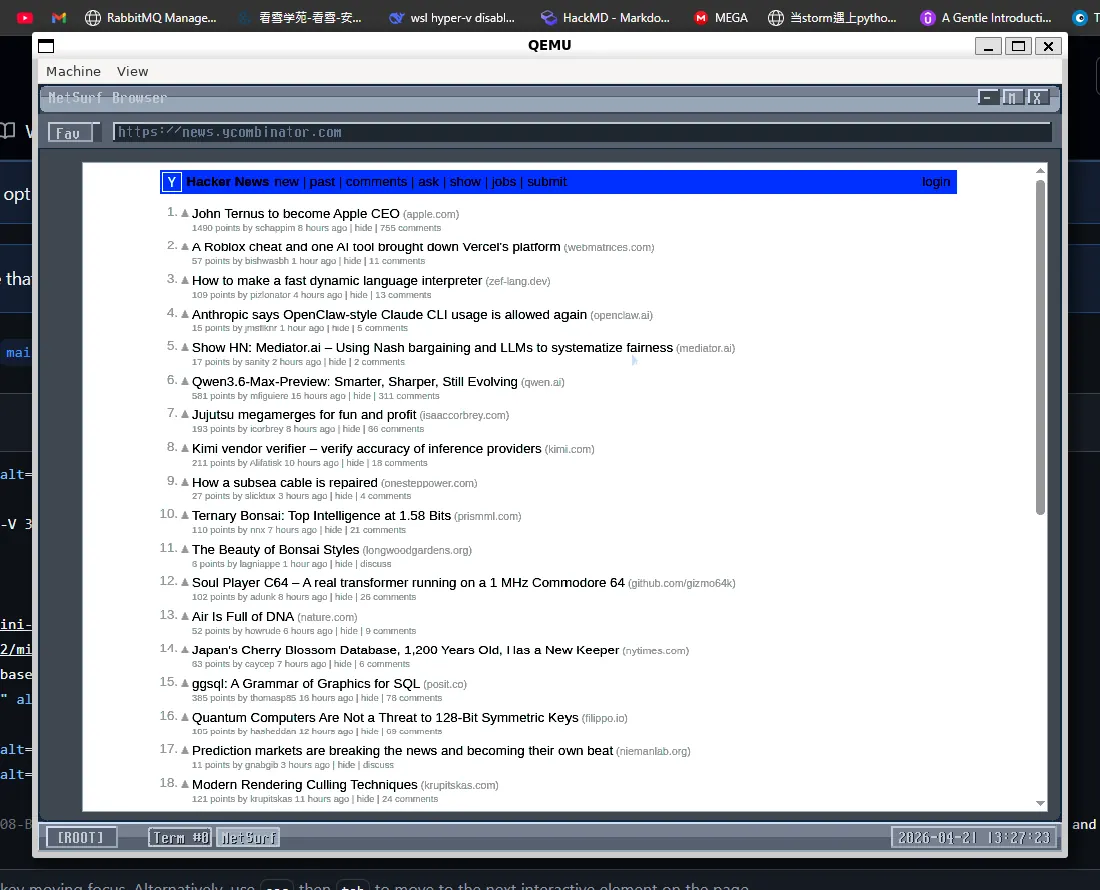

netsurf https://news.ycombinator.com

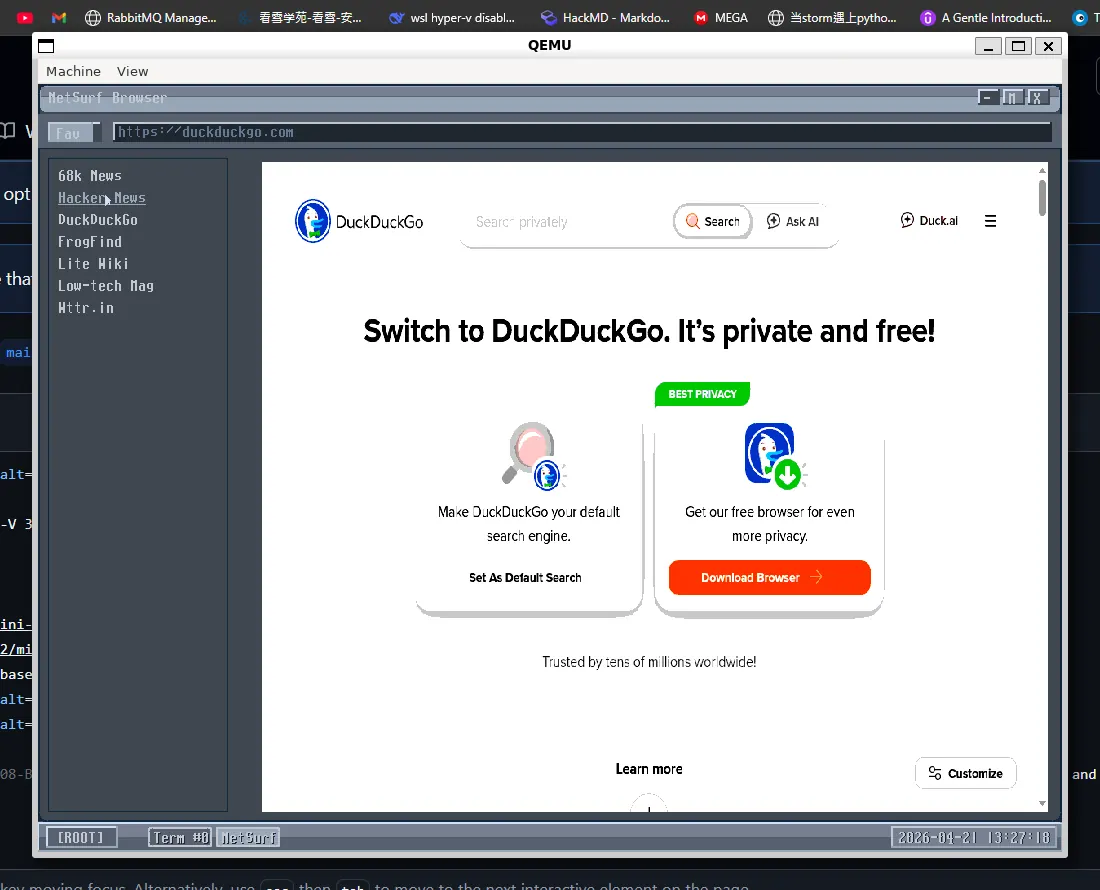

netsurf https://duckduckgo.com
netsurf http://68k.news

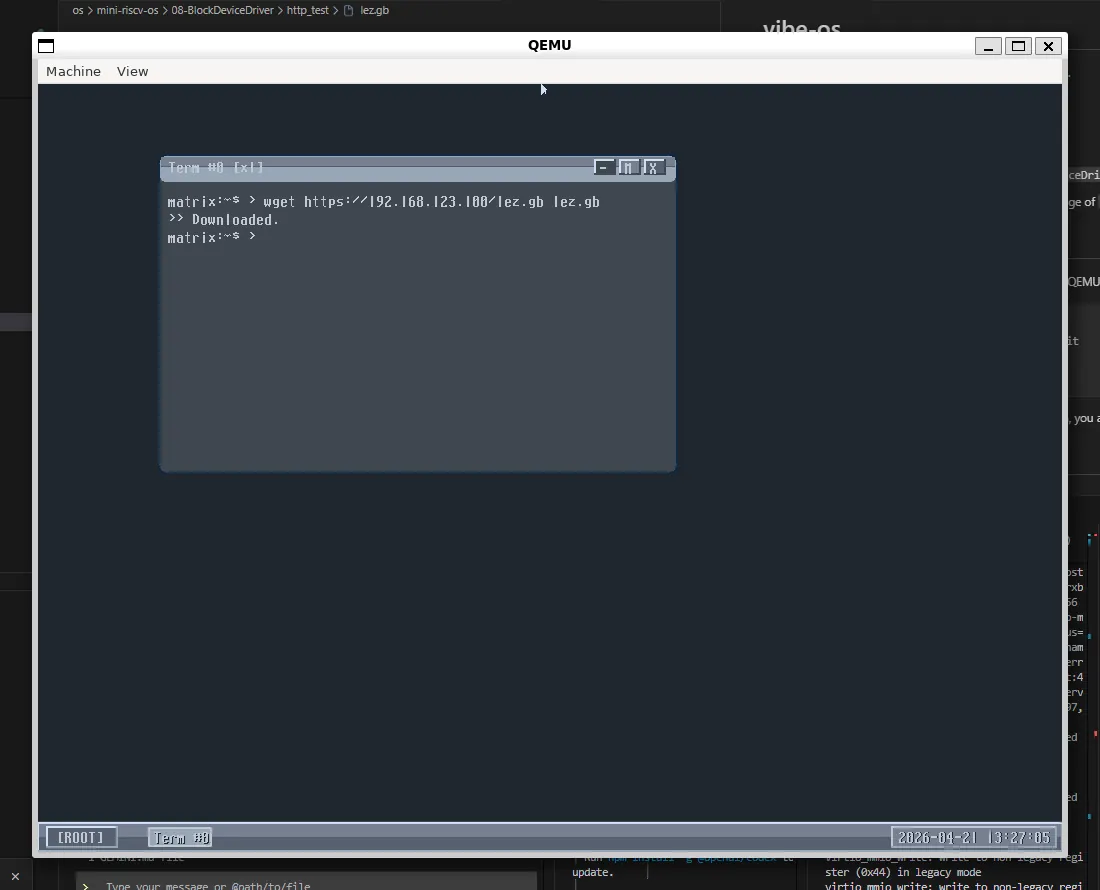

Download files:

text

# QEMU guest shell
wget http://192.168.123.100:9999/ index.html

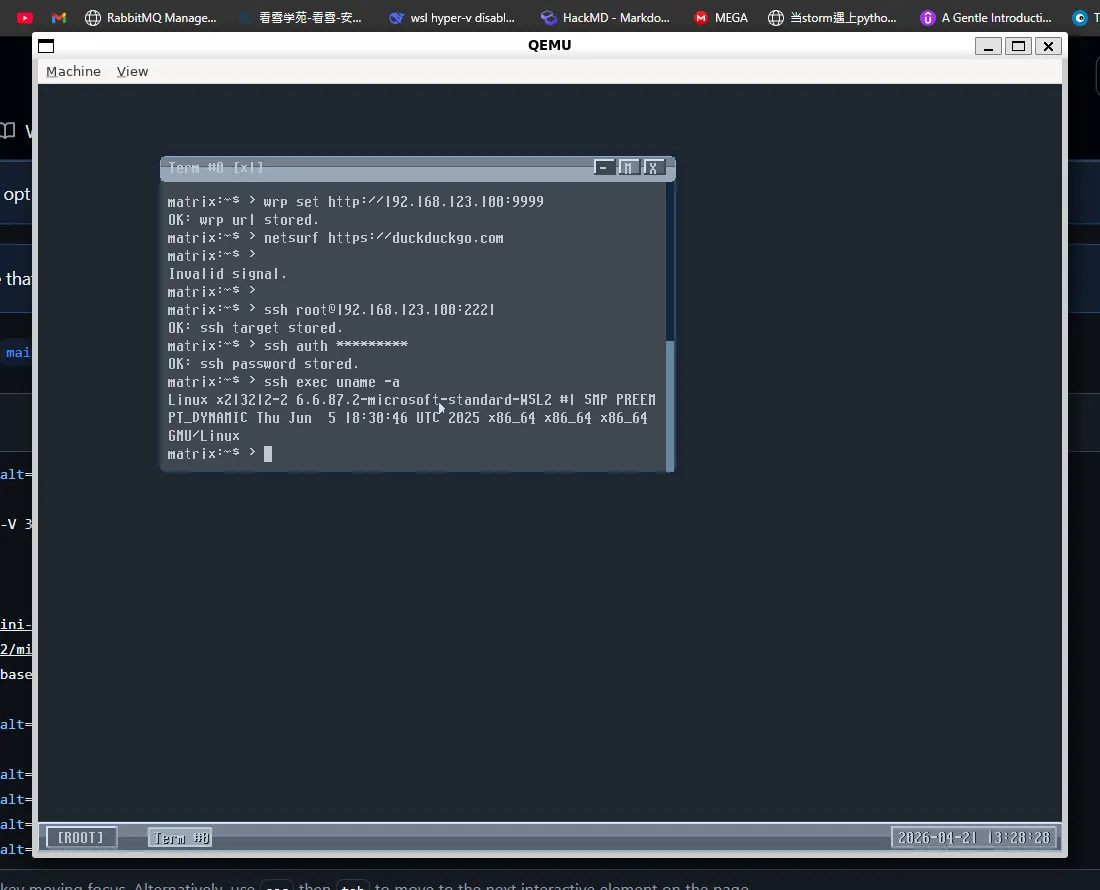

SSH:

text

# QEMU guest shell
ssh status
ssh set root@192.168.123.100:2221
ssh auth <password>
ssh exec <command>

Protocol / Network Stack

vibe-os does not implement a full protocol stack from scratch; instead, it integrates existing open-source stacks:

TCP/IP: Uses lwIP as the TCP/IP stack within the guest OS.
Network device: QEMU virtio-net-device, connected to 192.168.123.100/24 via host tap0.
HTTP client: Built-in user_wget.c, running on lwIP TCP sockets, used to download WRP HTML, GIP/GIF images, and general HTTP files.
SSH protocol: Uses libssh2 for the SSH-2 client protocol.
SSH crypto backend: libssh2 uses the mbedTLS backend via third_party/libssh2/src/mbedtls.c.
TLS / crypto primitives: mbedTLS provides RSA, AES, SHA, HMAC, CTR-DRBG, X.509, PK parsing, etc.
Browser remoting: Modern websites are rendered by WRP + Chrome on the host. The guest OS only handles HTML, ISMAP, and GIP/GIF images returned by WRP.

Important boundaries:

vibe-os does not execute modern JavaScript/CSS directly in the guest.
The WRP server runs Chrome on the host; the guest interacts with it via HTTP/ISMAP.
SSH commands are sent from the guest OS via lwIP TCP connections to the remote SSH server, processed by libssh2.

Upstream Projects

Core sources:

Original OS: cccriscv/mini-riscv-os
Referenced OS fork/base: x213212/mini-riscv-os
WRP Web Rendering Proxy: tenox7/wrp
GIP fast GIF encoder: tenox7/gip
lwIP TCP/IP stack: lwip-tcpip/lwip
mbedTLS: Mbed-TLS/mbedtls
libssh2: libssh2/libssh2
RISC-V GNU toolchain: riscv-collab/riscv-gnu-toolchain
QEMU: qemu-project/qemu
Chromium / Chrome rendering engine: chromium/src

NetSurf libraries:

libnsfb: git.netsurf-browser.org/libnsfb.git
libwapcaplet: git.netsurf-browser.org/libwapcaplet.git
libparserutils: git.netsurf-browser.org/libparserutils.git
libhubbub: git.netsurf-browser.org/libhubbub.git

Integrated features:

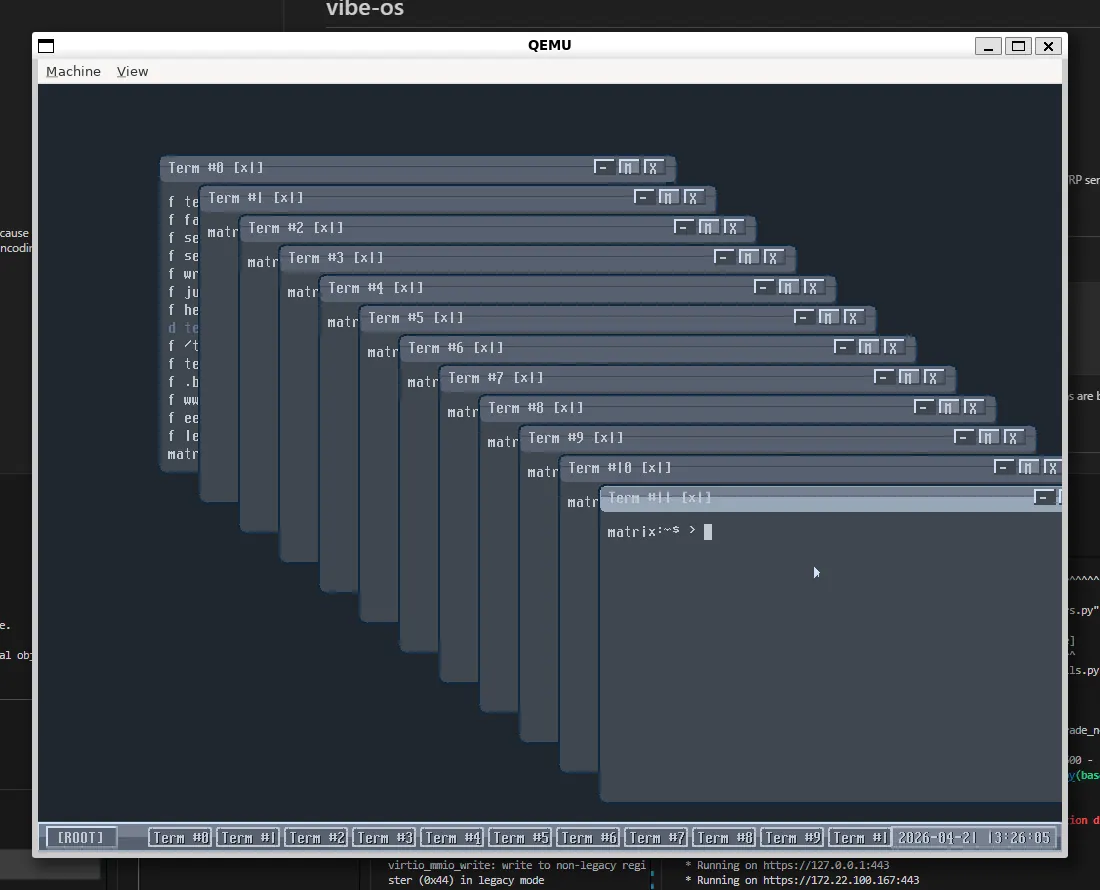

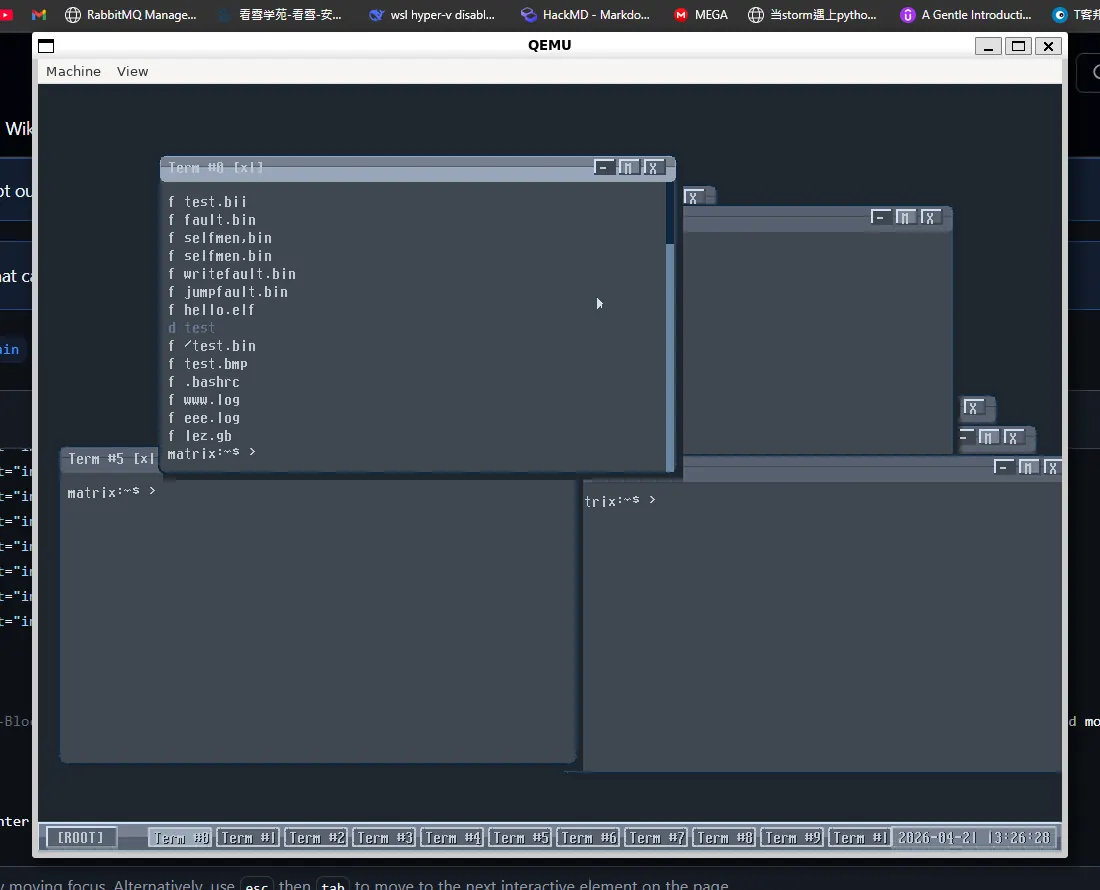

VGA GUI / window manager
virtio block / net / keyboard / tablet
lwIP TCP/IP

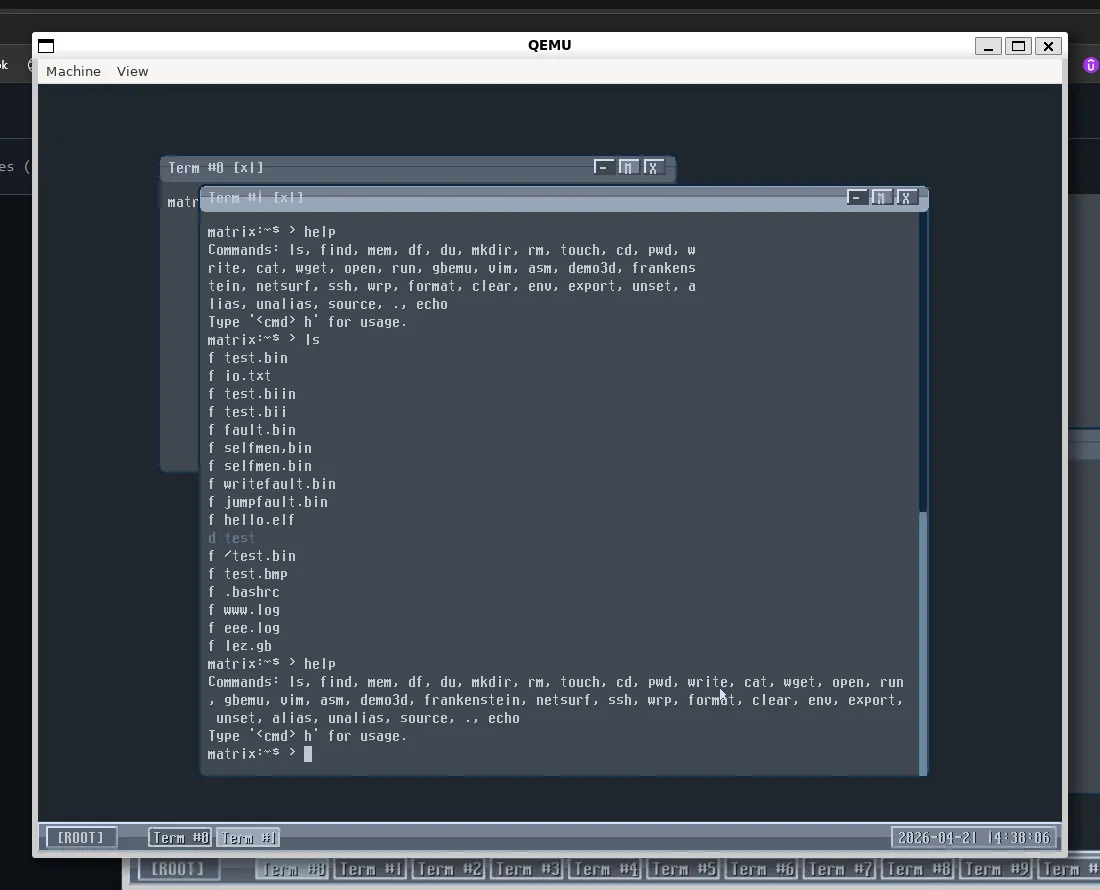

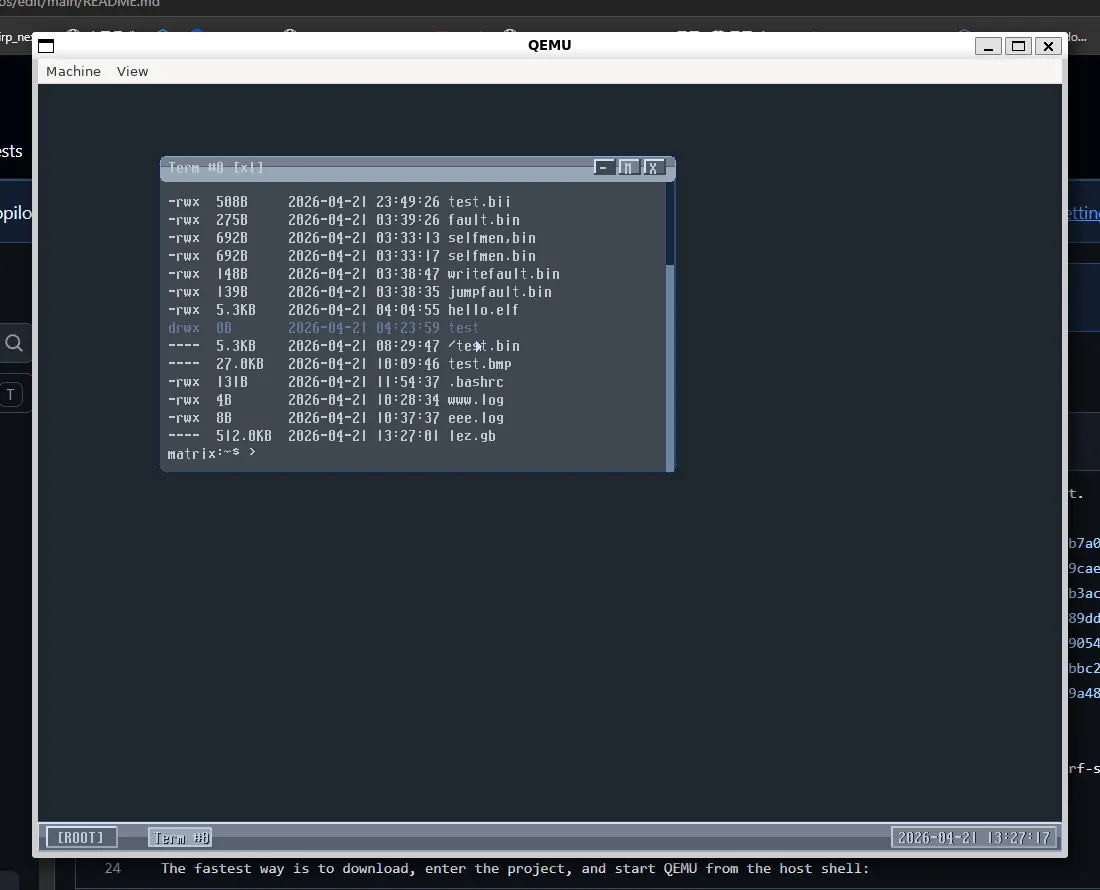

Simple shell, file system, text editor
NetSurf-style browser frontend
WRP integration using host Chrome for modern website rendering
WRP GIP fast GIF path
ISMAP click / keyboard / wheel queue synced with WRP .map IDs

Directory Structure

text

vibe-os repo root/
  Makefile              OS build / QEMU startup settings
  os.elf                Compiled RISC-V kernel / userspace image
  hdd.dsk               QEMU virtio block disk image
  user.c                Shell, GUI, window, terminal commands
  user_netsurf.c        NetSurf/WRP frontend, mouse/keyboard/wheel queue
  user_utils.c          URL normalization, WRP URL generation, GIF/GIP decoder
  user_wget.c/.h        HTTP client / WGET queue
  ssh_client.c/.h       SSH settings and WRP URL persistence
  virtio_net.c          virtio-net + lwIP netif
  lwip/                 lwIP source tree

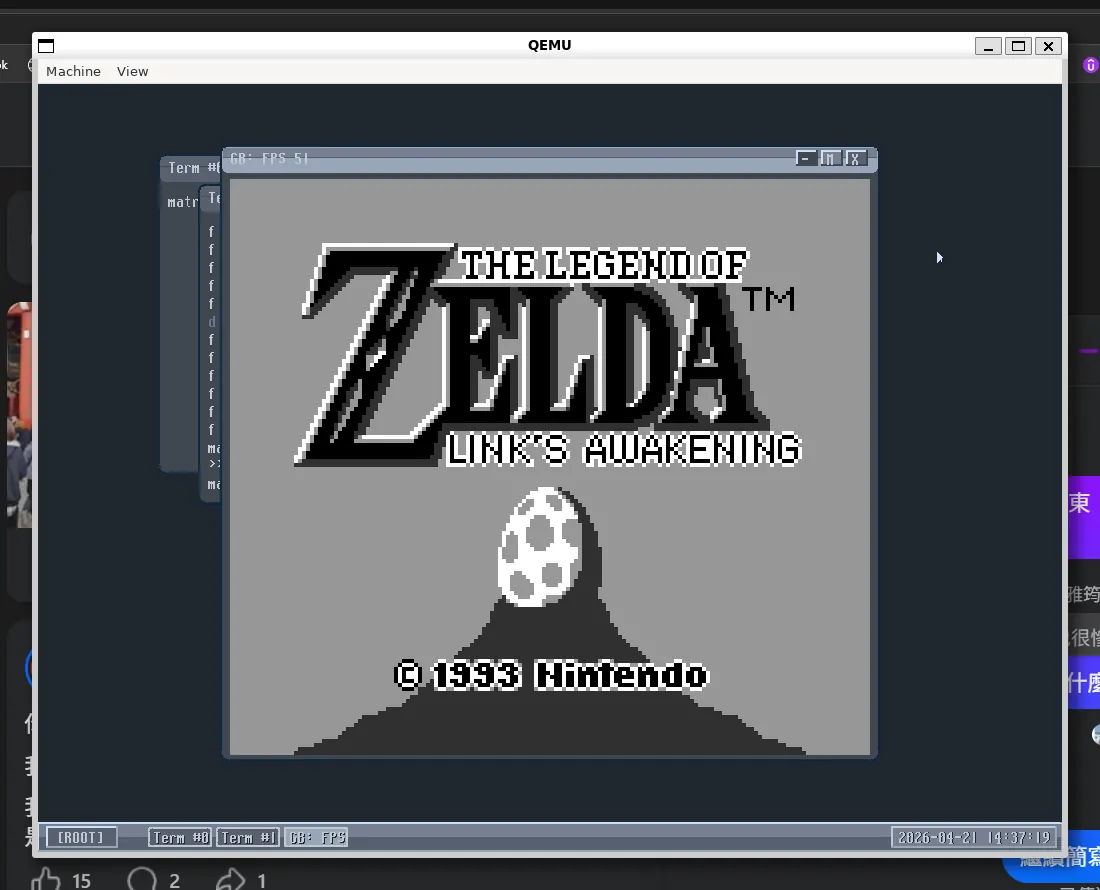

  gbemu_wasm/           Game Boy emulator core
  wrp/                  Modified WRP server

Host / Guest Network Configuration

QEMU uses the tap device:

make

-netdev tap,id=net0,ifname=tap0,script=no,downscript=no

IP Planning:

Endpoint	IP / port	Description
QEMU guest OS	`192.168.123.1/24`	Defined in `virtio_net.c`
Host tap0	`192.168.123.100/24`	Host running WRP server
WRP default URL	`http://192.168.123.100:9999`	Defined in `ssh_client.c`

Build Instructions

Requires:

riscv64-unknown-elf-gcc
qemu-system-riscv32
GNU make
Pre-built mbedTLS RISC-V static libs (default at /tmp/mbedtls-rv-build)

To create the disk image (first time only):

dd if=/dev/urandom of=hdd.dsk bs=1M count=32

To build and run:

make -j2 os.elf
make qemu

Development Notes

After modifying .h files, a forced rebuild might be necessary: make -B -j2 os.elf.
After modifying the WRP server, rebuild with go build and restart the server.
The OS does not support direct modern JS/CSS; interaction is handled via WRP's ISMAP path.
Input synchronization (clicks, scrolls) is managed via an OS-side action queue to avoid ID race conditions.

License

This project integrates several open-source components:

vibe-os (this fork): Released into the public domain under The Unlicense.
mini-riscv-os: Distributed under the Two-clause BSD License.
WRP: Distributed under the Apache License 2.0.

For complete license texts, please see the LICENSE file.
