3D-Scanner

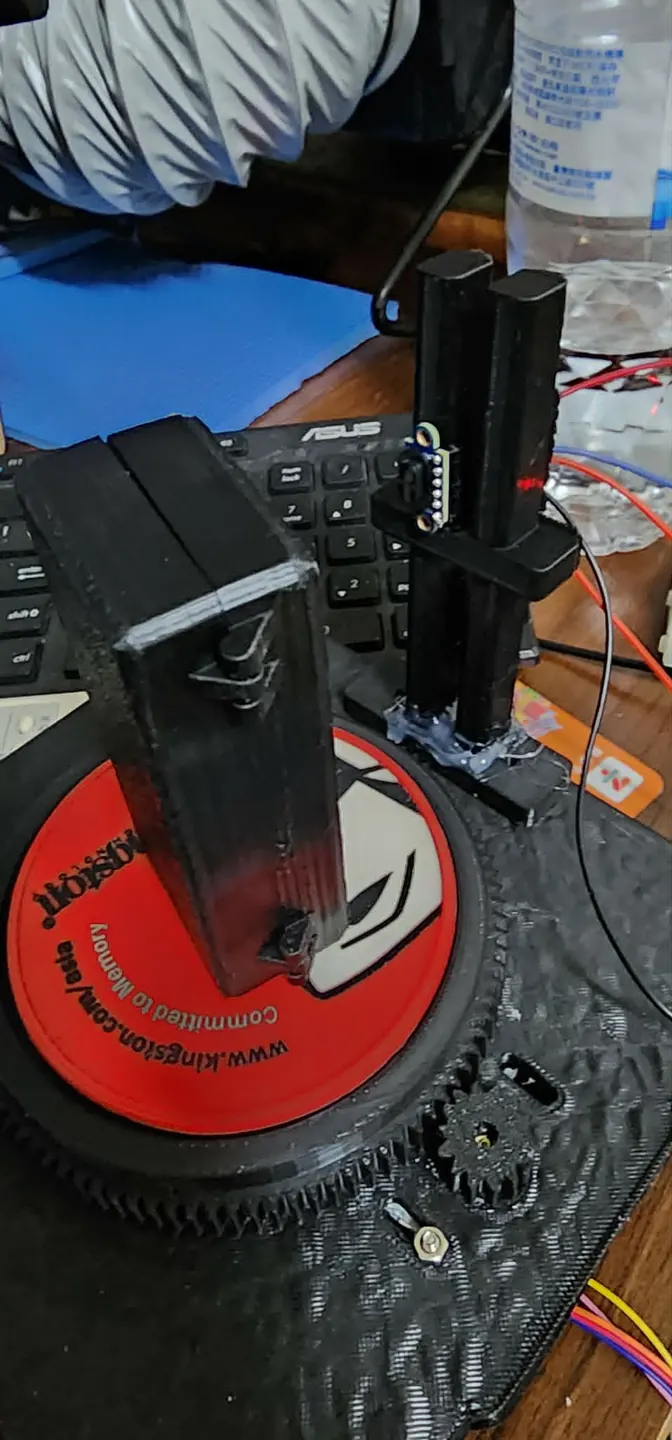

ESP32-S3 VL53L7CX turntable scanner firmware and raw-scan replay tools.

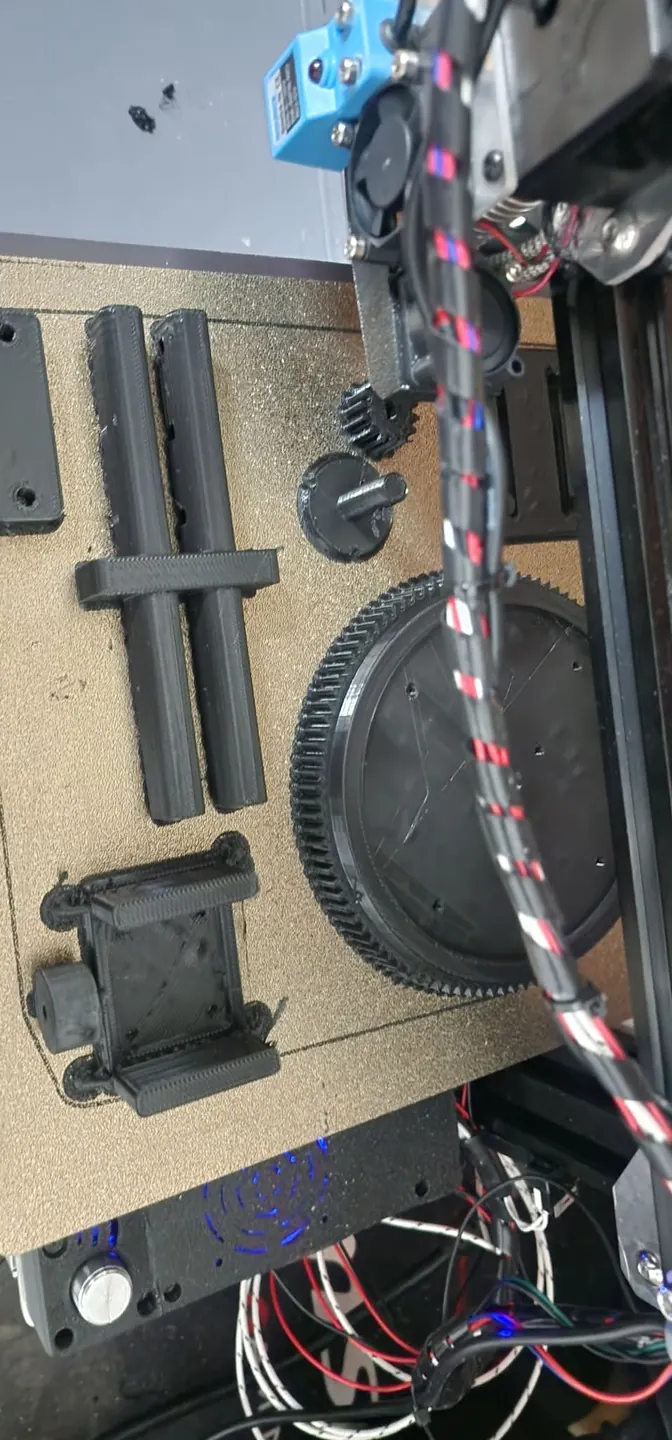

image image image

📁 Contents

  • firmware/esp32s3_vl53l7cx_model_server/esp32s3_vl53l7cx_model_server.ino

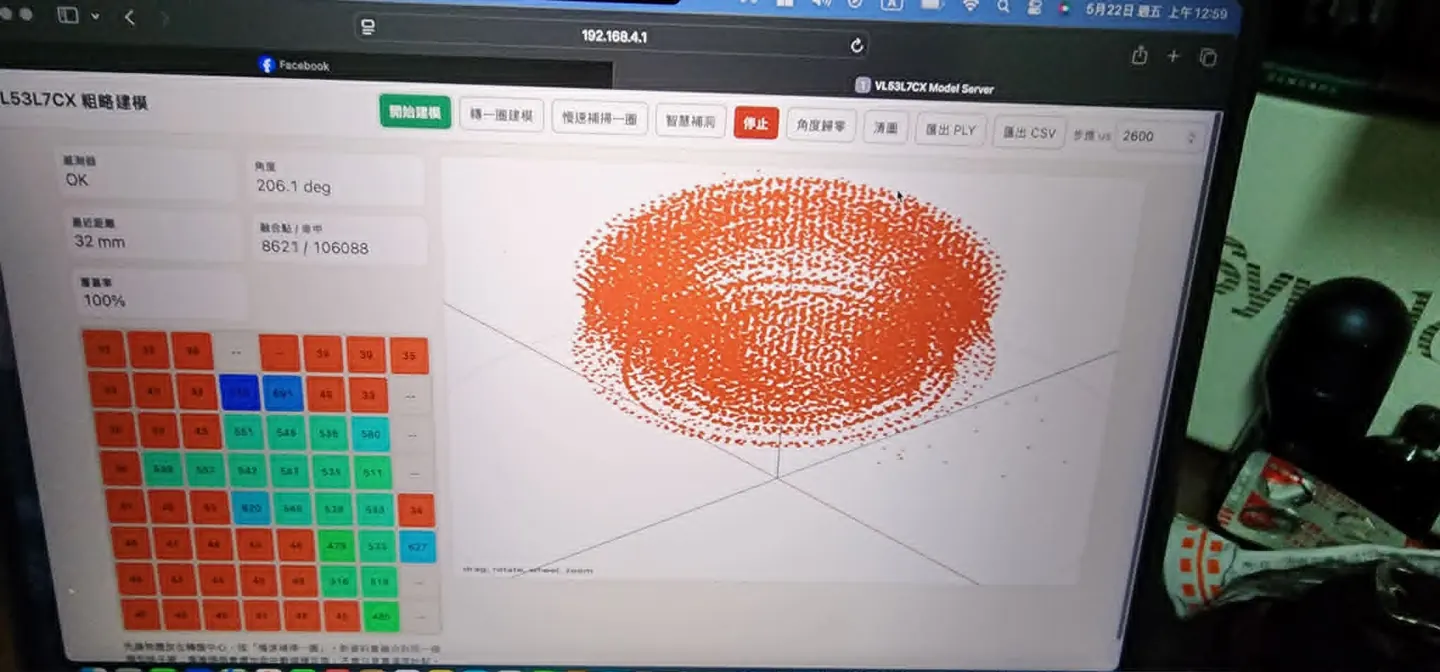

    • ESP32-S3 web UI and scanner firmware.
    • Supports raw-hit point cloud, calibrated visual hull, no-background envelope estimation, and raw debug export.
  • tools/simulate_calibration_first_replay.py
    • Replays exported vl53l7cx_raw_scan*.jsonl files.
    • Supports calibrated background subtraction and no-background raw-envelope estimation.
  • tools/analyze_raw_scan_log.py
    • Utility for inspecting raw scan/debug logs.

💡 最佳掃描流程

  1. Open the ESP32 web UI.
  2. Use perpendicular distance projection.
  3. For best geometry, run 空掃校正一圈 before scanning the object.
  4. If no background scan is available, use raw-hit/no-bg output only as an estimated result.

💻 Replay Examples

Calibrated replay

bash
python tools/simulate_calibration_first_replay.py \
  --empty vl53l7cx_raw_scan-empty.jsonl \
  --object vl53l7cx_raw_scan-object.jsonl \
  --distance-model perpendicular
