vibeos_fpga

image image image image image image image image

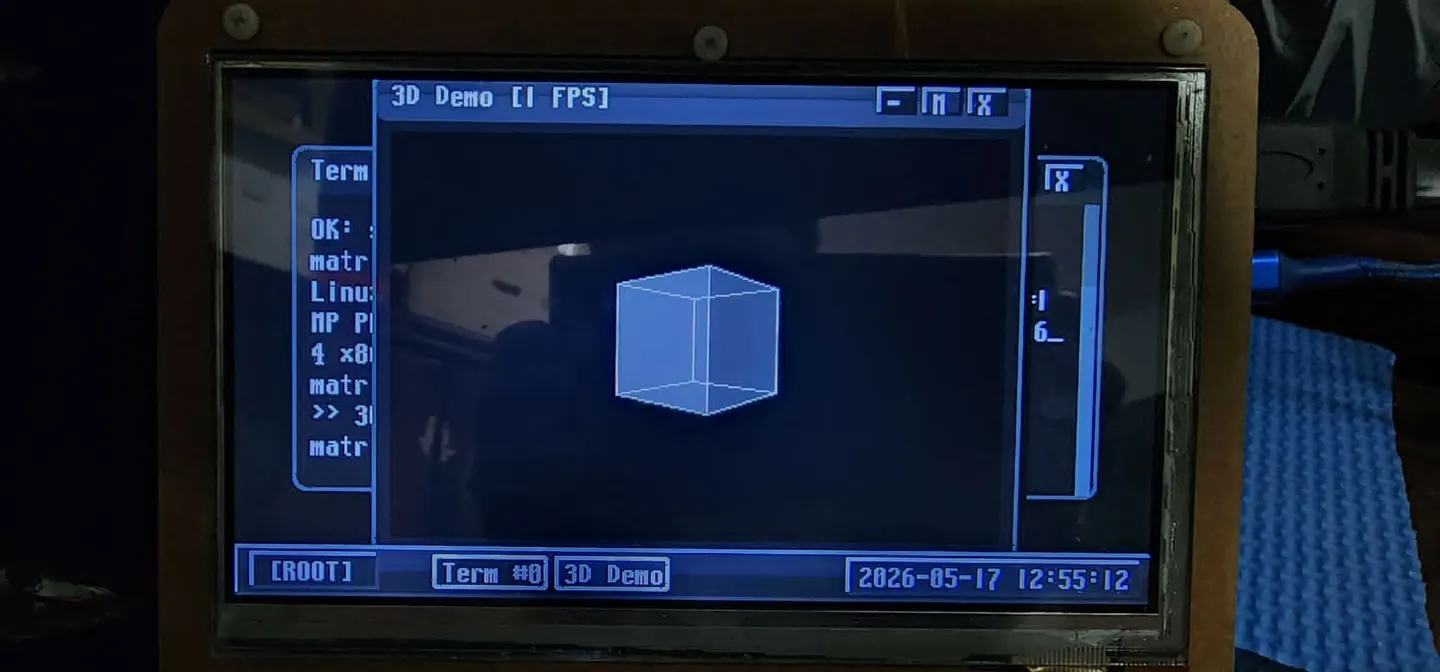

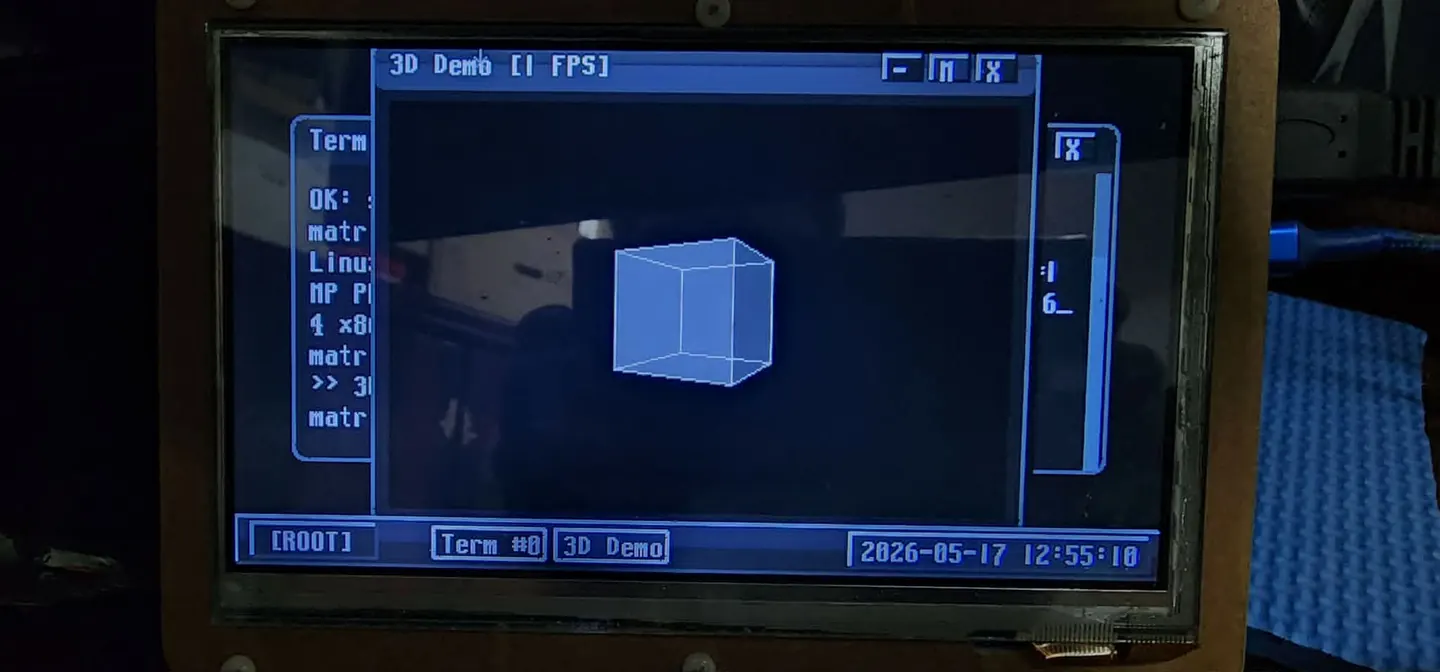

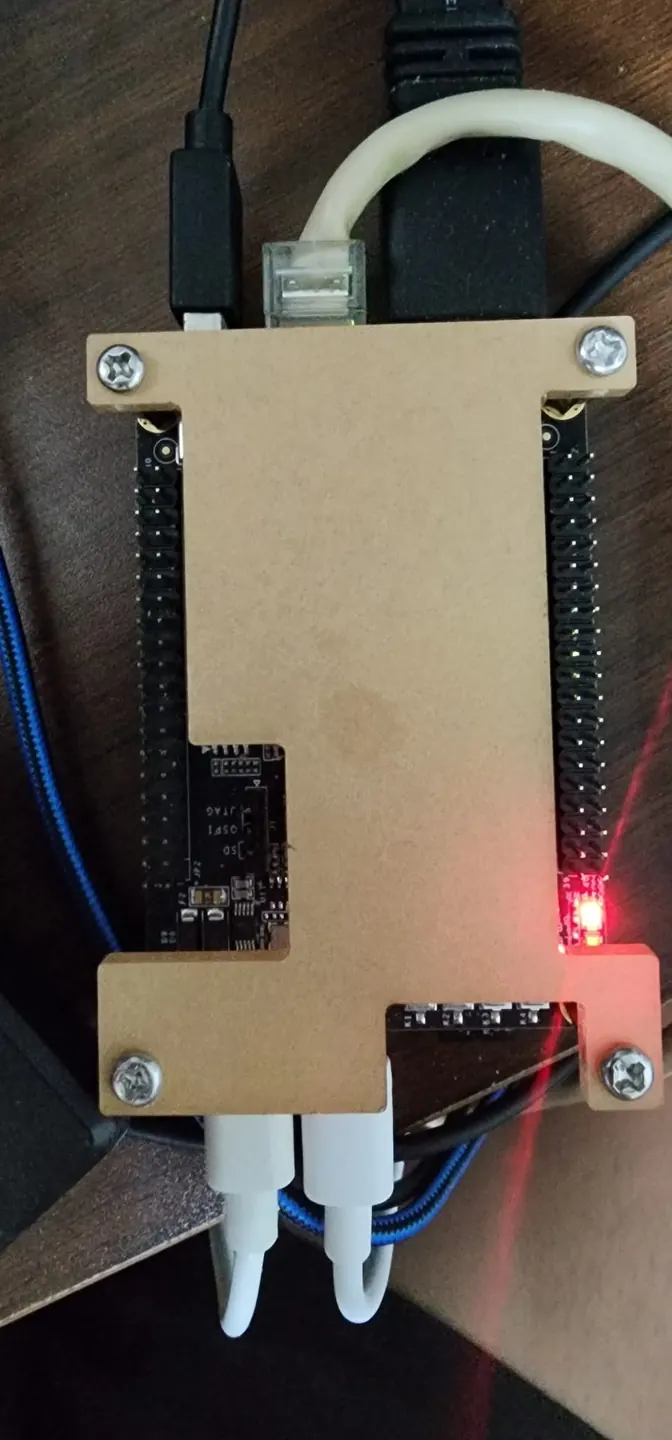

VibeOS on a Zynq-7020 FPGA development board.

This repository keeps the source-level pieces for the current VibeOS FPGA bring-up:

  • vibeos/: RISC-V OS, USB HID, SD/VibeFS, GEM/lwIP, SSH, and GUI source

  • project_2/: FPGA top-level RTL, HDMI/MMIO/USB debug RTL, Vivado Tcl, XSDB debug/load scripts, and board SOP notes

  • ultraembedded_riscv/: RISC-V core source used by the FPGA top

Generated artifacts are intentionally not tracked. Rebuild os.bin and Vivado bitstreams locally from the source and scripts.

Last Known Working Ethernet/UI Flow

Tool Versions

This flow was last verified with:

text
Vivado:            v2019.2 64-bit
Vivado SW Build:   2708876
Vivado IP Build:   2700528
Local Vivado path: H:\Xilinx\vivado\Vivado\2019.2

WSL:               2.6.2.0
WSL distro:        Ubuntu 22.04.5 LTS
WSL kernel:        6.6.87.2-microsoft-standard-WSL2
RISC-V GCC:        riscv64-unknown-elf-gcc 10.2.0
Windows:           10.0.26200.7171

Run from the repository root in Windows PowerShell:

powershell
cd <repo-root>

wsl --cd ./vibeos --exec make profile=fpga_minimal FPGA_MTIME_HZ=50000000 os.bin

powershell.exe -ExecutionPolicy Bypass -File .\project_2\release_vibeos_eth_stable.ps1 ./vibeos/os.bin

Start-Sleep -Seconds 5

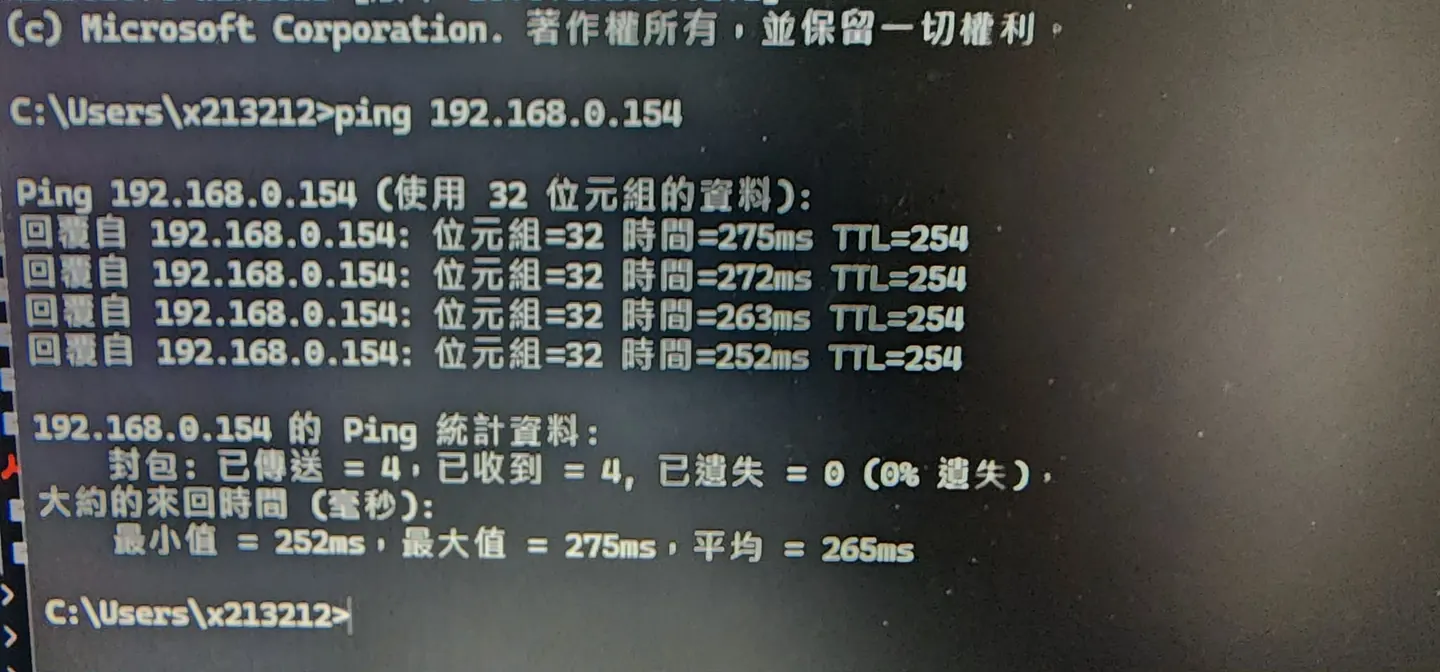

ping -n 6 192.168.0.154
curl.exe --max-time 5 http://192.168.0.154/

Expected HTTP response:

html

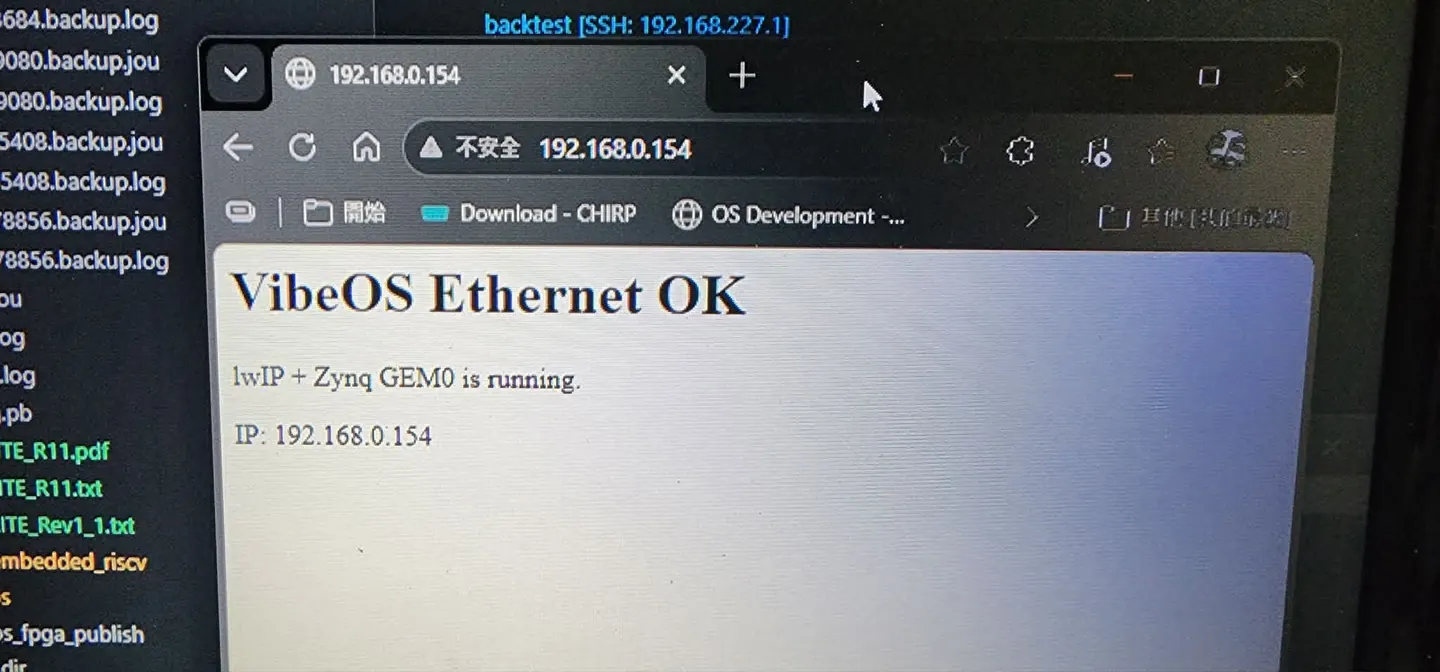

<html><body><h1>VibeOS Ethernet OK</h1><p>lwIP + Zynq GEM0 is running.</p><p>IP: 192.168.0.154</p></body></html>

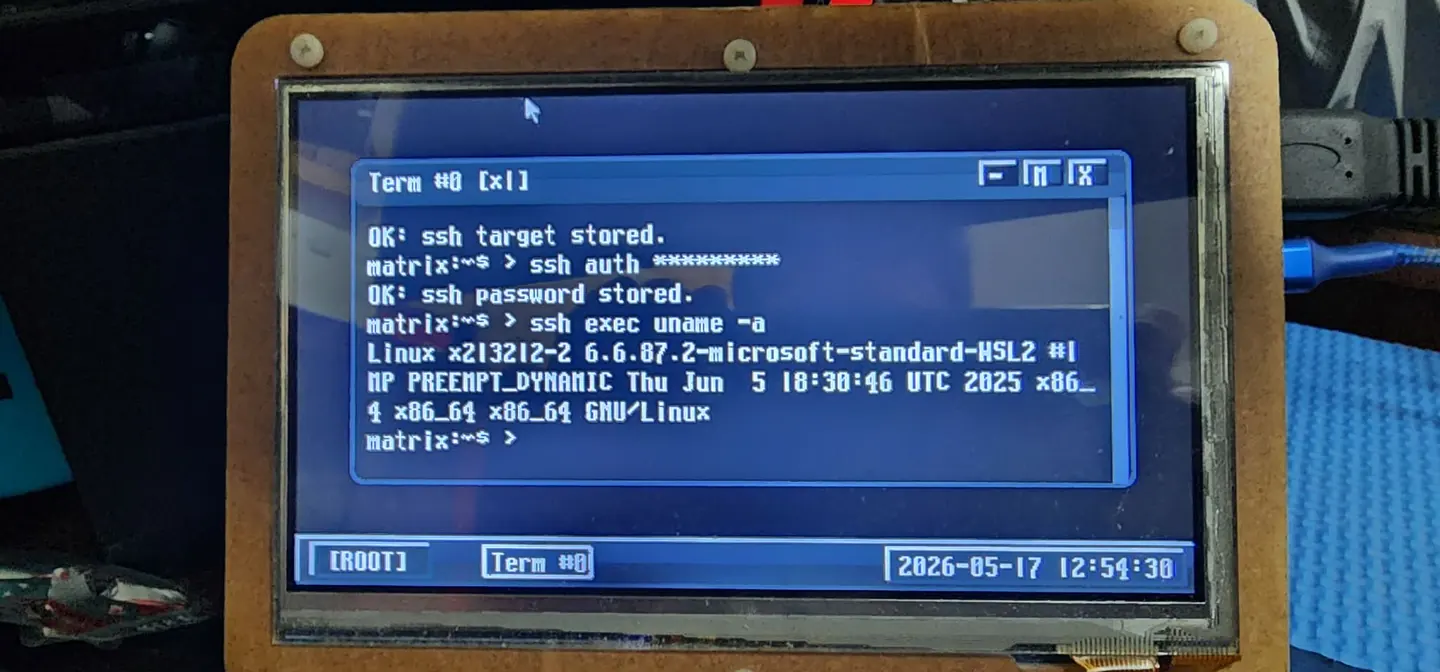

Inside VibeOS, useful network commands are:

text
ethstat
ssh probe 192.168.0.152:2221
ssh set root@192.168.0.152:2221
ssh auth <password>

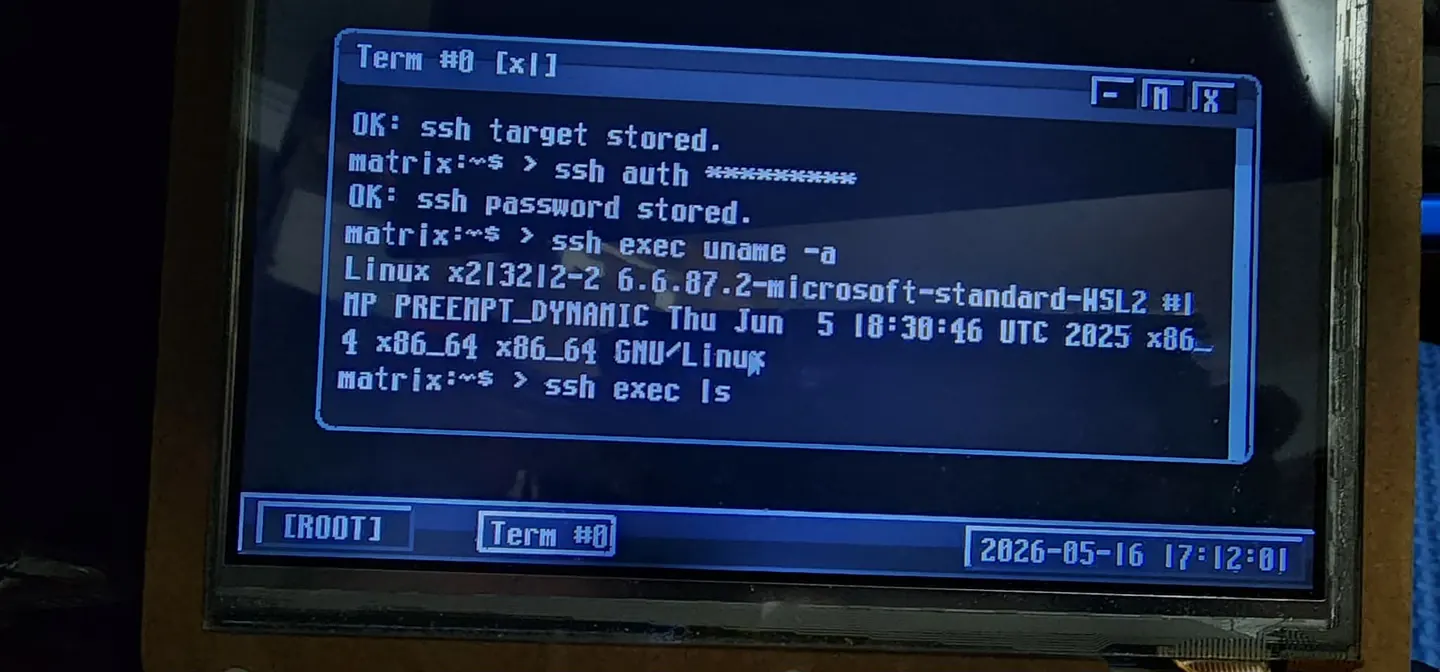

ssh exec uname -a

SD card root listing is also wired into the FPGA minimal shell. The stable bitstream enables PS SD0 on MIO 40..45; the OS uses a small PIO SDIO reader and FAT16/FAT32 root directory parser.

text
sd status
sd ls
sdls

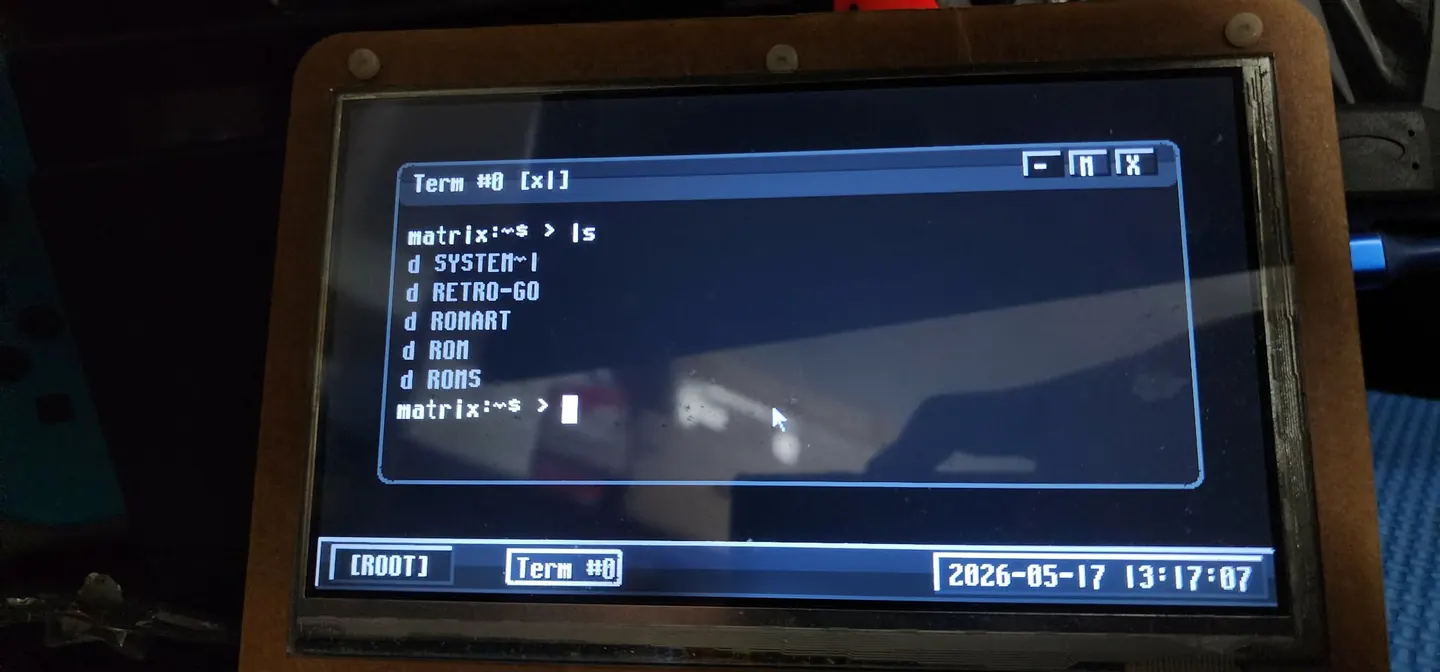

ls /sd
ls

In profile=fpga_minimal, plain ls falls back to the SD card root when the temporary /root RAM disk has not been formatted yet.

The stable Ethernet loader uses:

text
project_2/riscv_ps_ddr_hw_eth_clkdomain_probe_50/riscv_ps_ddr_hw.runs/impl_1/riscv_ps_ddr_wrapper.bit
project_2/riscv_ps_ddr_hw_eth_clkdomain_probe_50/riscv_ps_ddr_hw.srcs/sources_1/bd/riscv_ps_ddr/ip/riscv_ps_ddr_processing_system7_0_0/ps7_init.tcl

Those Vivado build outputs are not tracked in git. Rebuild them locally or copy them from a known-good local backup before running the stable loader.

Notes

  • Do not commit vibeos/.build, os.bin, bitstreams, DCPs, or Vivado run directories.

  • Licensing is centralized in LICENSE and THIRD_PARTY_LICENSES.md. Original VibeOS FPGA code is released under The Unlicense; vendored third-party code keeps its own license. The imported VibeOS source repository is https://github.com/x213212/vibeos.git.

  • The detailed recovery and debug notes live in project_2/STABLE_UI_ETH_MINIMAL_SOP.md.

  • Current FPGA minimal input/network handling is mostly cooperative polling. The PL IRQ probe work starts in project_2/read_pl_irq_probe.tcl and the fake PLIC/IRQ RTL path in project_2/pl_mmio_jtag_console.v.
