網頁

---

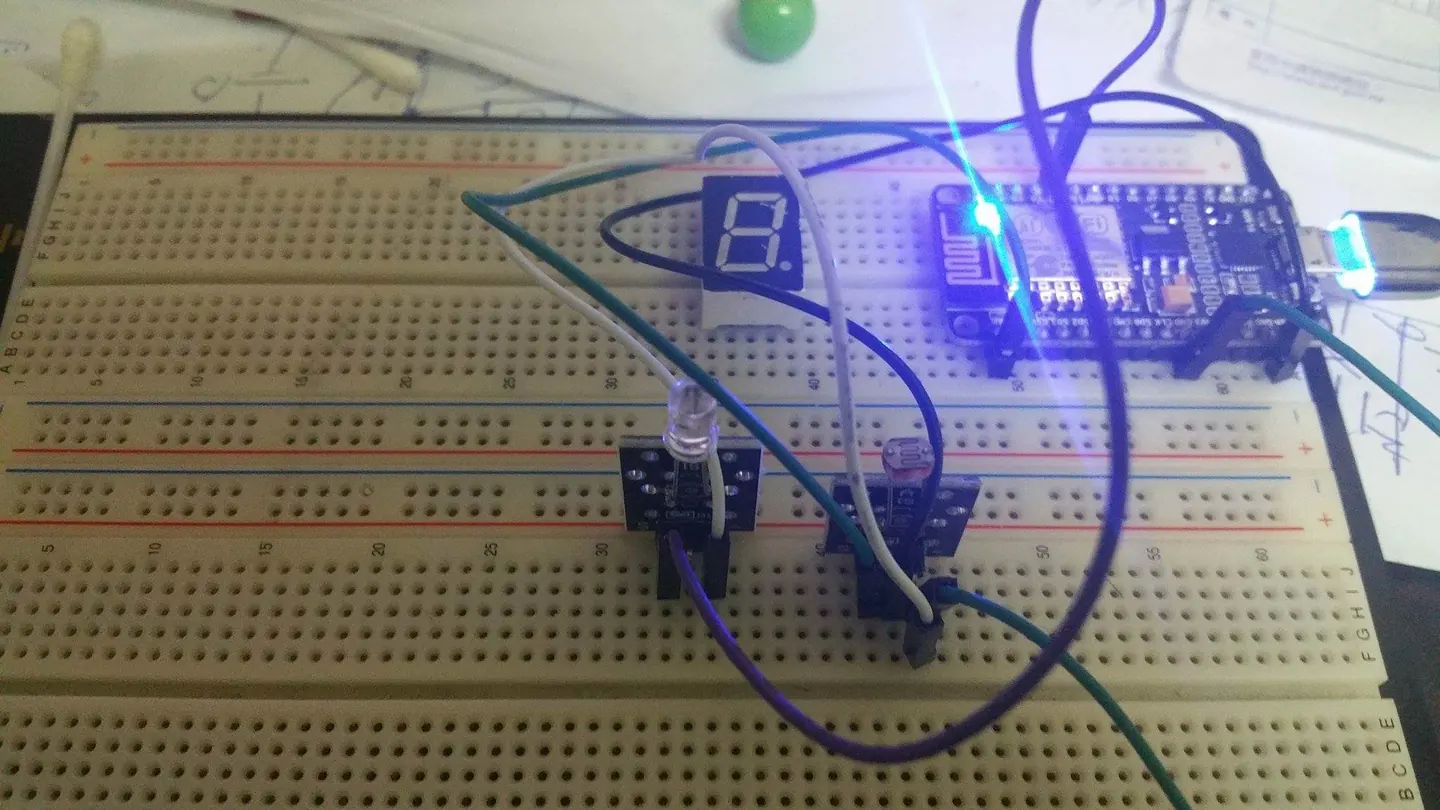

電路圖

---

程式碼

---

lua
#include <ESP8266WebServer.h>
int sensorPin = 2;
int value = 0;
const char* ssid = "AP";
const char* password = "123456789";
WiFiServer server(80);
void setup() {
  Serial.begin(115200);
  // prepare GPIO2
     pinMode(0, INPUT);
     pinMode(2, OUTPUT);
      digitalWrite(2, 0);
        // Connect to WiFi network
  Serial.println();
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Start the server
  server.begin();
  Serial.println("Server started");

  // Print the IP address
  Serial.println(WiFi.localIP());
}


void loop() {
  // Check if a client has connected
  WiFiClient client = server.available();
  if (!client) {
    return;
  }

  // Wait until the client sends some data
  Serial.println("new client");
  while(!client.available()){
    delay(1);
  }

  // Read the first line of the request
  String req = client.readStringUntil('\r');
  Serial.println(req);
  client.flush();


  // Match the request
  int val;
  if (req.indexOf("/LED=ON") != -1)
    val = 1;
  else if (req.indexOf("/LED=OFF") != -1)
    val = 0;
   else if (req.indexOf("/LED=check") != -1)
    val = -1;
  else {
    Serial.println("invalid request");
    client.stop();
    return;
  }

  // Set GPIO2 according to the request


  client.flush();

  // Prepare the response

    client.println("<html>");
  client.println("<a href=\"/LED=ON\"\"><button>Turn On </button></a>");
  client.println("<a href=\"/LED=OFF\"\"><button>Turn Off </button></a>");
   client.println("<a href=\"/LED=check\"\"><button>Led Status</button></a><br />");
  client.println("</html>");

  // Send the response to the client

  delay(1);
  Serial.println("Client disonnected");
    String tmp="";
value = analogRead(0);
//Serial.println(value, DEC);
if(val==1 ){
    tmp="Very bright";
  digitalWrite(2, val);
  }
 else if(val==0 ){
    tmp="Very Dark";
  digitalWrite(2, val);
  }
else if (val==-1){
 if(value<204){
  tmp="Very bright";
Serial.println("Very bright");
  digitalWrite(2, 0);
      val = 1;
}
else if (value > 204 && value <=408){
Serial.println("Ordinary bright");
  tmp="Ordinary bright";
  digitalWrite(2, 0);
      val = 1;
}
else if (value > 408 && value <=612){
Serial.println("Medium light");
  tmp="Medium light";
  digitalWrite(2, 0);
      val = 1;
}
else if (value > 612 && value <=816){
Serial.println("Dark");
  tmp="Dark";
  digitalWrite(2, 1);
      val = 0;
}
else if (value > 816 && value <=1020){
Serial.println("Very Dark");
  tmp="Very Dark";
  digitalWrite(2, 1);
      val = 0;
}
}
  String s = "<html>\r\nGPIO is now ";
  s += (val)?"high":"low ";
  s += "  Light Power:"+tmp;
  s += "</html>\n";
    client.print(s);
  // The client will actually be disconnected
  // when the function returns and 'client' object is detroyed
}
