Hi3861 Huawei WiFi Iot SDK

Note (20220706):

  1. Porting from code-1.0.tar.gz in https://repo.huaweicloud.com/harmonyos/os/1.0/code-1.0.tar.gz
  2. You could also find the binary from wifiiot-1.0.tar.gz in https://repo.huaweicloud.com/harmonyos/os/1.0/
  3. This repo has only ported the C source files including header files and excluding pre-built libraries and object files as source.txt
  4. Copy the C related header files by using fast_cp.sh, which can automatic build and copy the missing headers

python build.py wifiiot

code
No option 'riscv32-unknown-elf-gcc_path' in section: 'ndk'
usage:
  python build.py ipcamera_hi3516dv300
  python build.py ipcamera_hi3518ev300
  python build.py wifiiot

positional arguments:
  product               Name of the product

optional arguments:
  -h, --help            show this help message and exit
  -b BUILD_TYPE, --build_type BUILD_TYPE
                        release or debug version.
  -t [TEST [TEST ...]], --test [TEST [TEST ...]]
                        Compile test suit
  -n, --ndk             Compile ndk

Installation Dependencies

code
sudo apt-get install -y ninja-build

build gn

code
git clone https://github.com/timniederhausen/gn.git
cd gn
python build/gen.py # --allow-warning if you want to build with warnings.
ninja -C out

Linker Script

code
vim ./vendor/hisi/hi3861/hi3861/build/build_tmp/scripts/link.lds

Entry point:

riscv32-unknown-elf-readelf -h Hi3861_wifiiot_app.out ELF Header: Magic: 7f 45 4c 46 01 01 01 00 00 00 00 00 00 00 00 00 Class: ELF32 Data: 2's complement, little endian Version: 1 (current) OS/ABI: UNIX - System V ABI Version: 0 Type: EXEC (Executable file) Machine: RISC-V Version: 0x1 Entry point address: 0x40d3c0 Start of program headers: 52 (bytes into file) Start of section headers: 1528420 (bytes into file) Flags: 0x1, RVC, soft-float ABI Size of this header: 52 (bytes) Size of program headers: 32 (bytes) Number of program headers: 11 Size of section headers: 40 (bytes) Number of section headers: 27 Section header string table index: 26

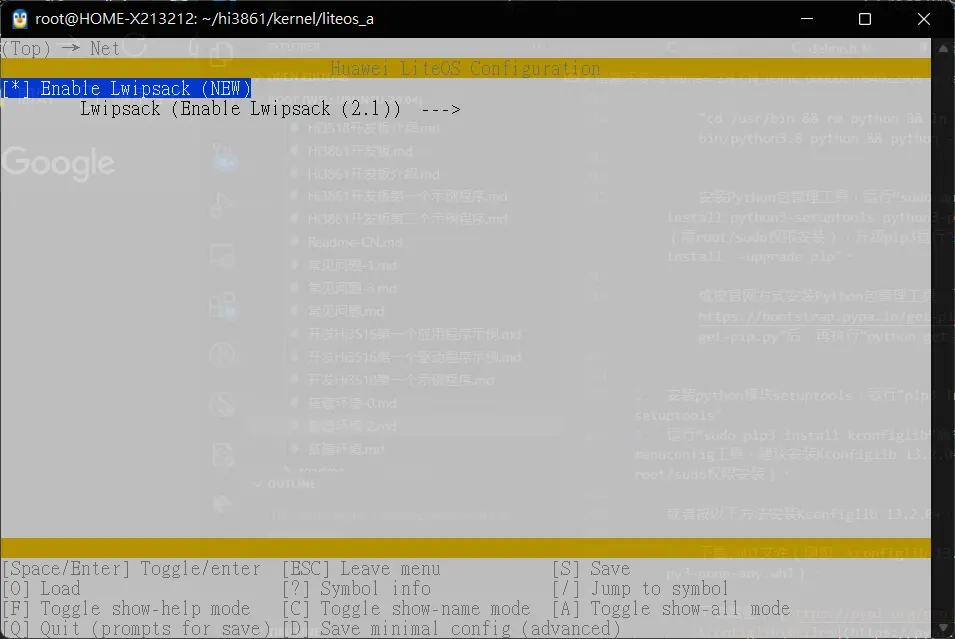

check lwip default on :

./kernel/liteos_a/ image

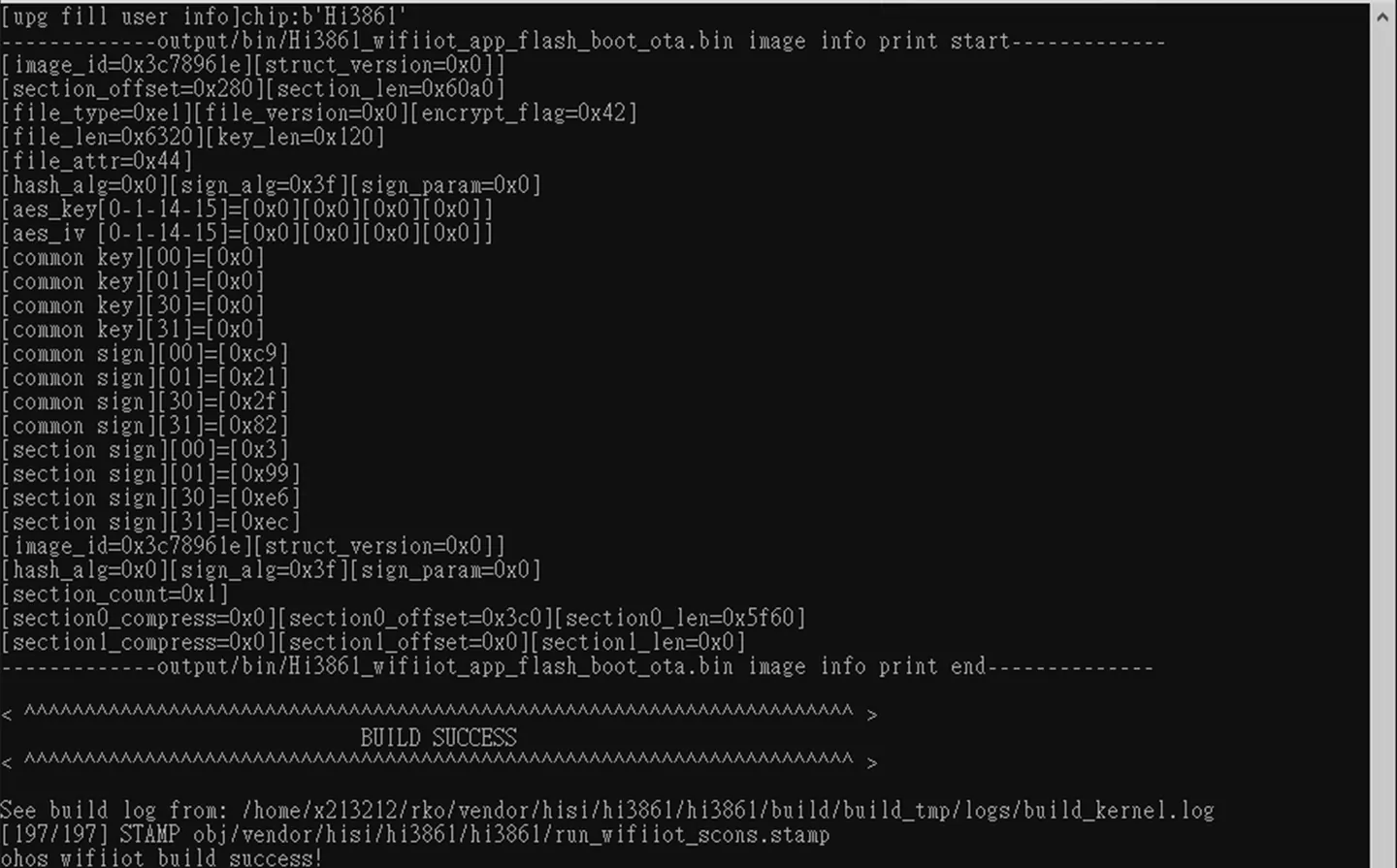

Build : python build.py wifiiot

quick-start : ./docs/quick-start/搭建环境-0.md ./docs/quick-start/搭建环境-2.md ./docs/quick-start/搭建环境.md

To run tests:

./out/wifiiot image

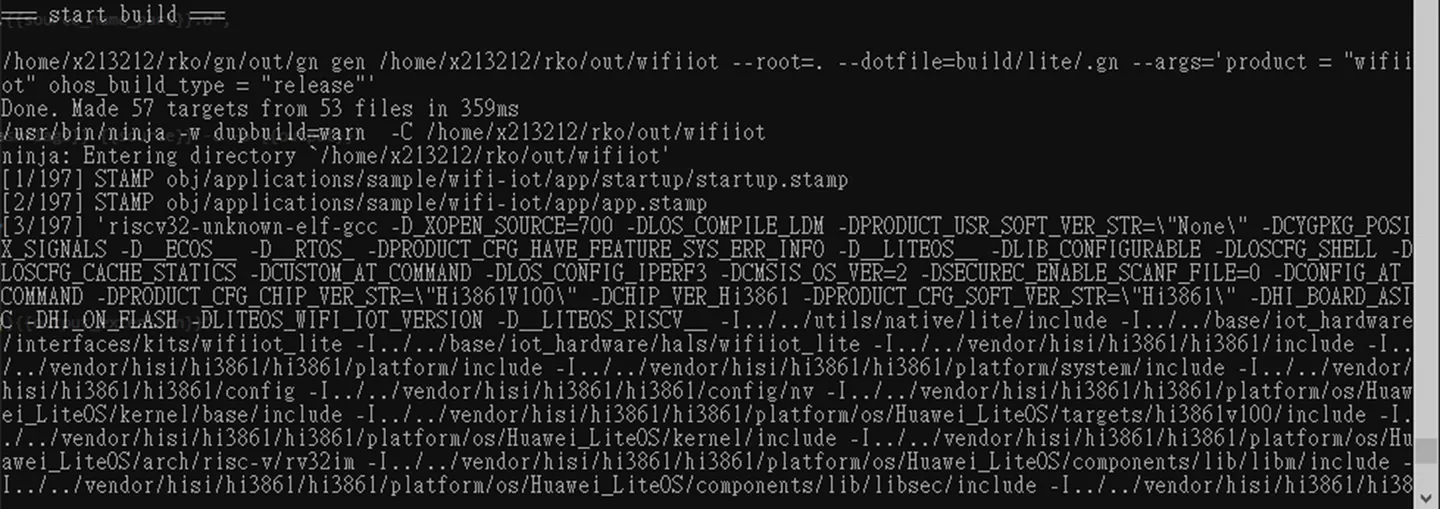

riscv32-unknown-elf-size Hi3861_wifiiot_app.out text data bss dec hex filename 958736 4780 56100 1019616 f8ee0 Hi3861_wifiiot_app.out image ./build/lite/toolchain/gcc.gni Example

Default: tool("cc") { command = "$cc {{defines}} {{include_dirs}} {{cflags}} {{cflags_c}} -c {{source}} -o {{output}}" depsformat = "gcc" description = "cross compiler {{output}}" outputs = [ "{{source_out_dir}}/{{source_name_part}}.o", ] }

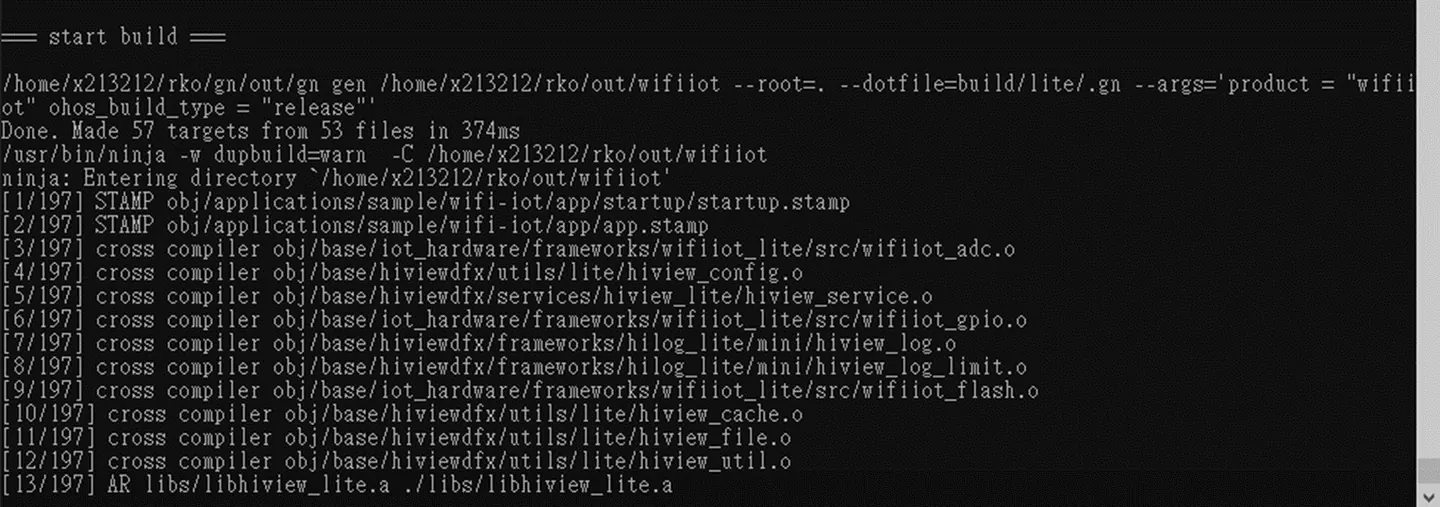

Rewrite: tool("cc") { command = "$cc {{defines}} {{include_dirs}} {{cflags}} {{cflags_c}} -c {{source}} -o {{output}}" depsformat = "gcc" description = "'$command'," outputs = [ "{{source_out_dir}}/{{source_name_part}}.o", ] }

Try using Andes toolchain: image Default: riscv32-unknown-elf-gcc -D_XOPEN_SOURCE=700 -DLOS_COMPILE_LDM -DPRODUCT_USR_SOFT_VER_STR="None" -DCYGPKG_POSIX_SIGNALS -D__ECOS__ -D__RTOS_ -DPRODUCT_CFG_HAVE_FEATURE_SYS_ERR_INFO -D__LITEOS__ -DLIB_CONFIGURABLE -DLOSCFG_SHELL -DLOSCFG_CACHE_STATICS -DCUSTOM_AT_COMMAND -DLOS_CONFIG_IPERF3 -DCMSIS_OS_VER=2 -DSECUREC_ENABLE_SCANF_FILE=0 -DCONFIG_AT_COMMAND -DPRODUCT_CFG_CHIP_VER_STR="Hi3861V100" -DCHIP_VER_Hi3861 -DPRODUCT_CFG_SOFT_VER_STR="Hi3861" -DHI_BOARD_ASIC -DHI_ON_FLASH -DLITEOS_WIFI_IOT_VERSION -D__LITEOS_RISCV__ -I../../utils/native/lite/include -I../../base/iot_hardware/interfaces/kits/wifiiot_lite -I../../base/iot_hardware/hals/wifiiot_lite -I../../vendor/hisi/hi3861/hi3861/include -I../../vendor/hisi/hi3861/hi3861/platform/include -I../../vendor/hisi/hi3861/hi3861/platform/system/include -I../../vendor/hisi/hi3861/hi3861/config -I../../vendor/hisi/hi3861/hi3861/config/nv -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/base/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/arch/risc-v/rv32im -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libm/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libsec/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/wpa_supplicant-2.7/src/common -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/plat/riscv -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/extended/runstop -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/posix/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/linux/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/lwip_sack/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/arch/generic -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/arch/riscv32 -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/hw/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/nuttx/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/config -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/user -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/plat -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/extend/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/arch -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/bionic/libm -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/shell/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/telnet/include -nostdlib -fno-common -fno-builtin -fno-strict-aliasing -fsigned-char -Werror -falign-functions=2 -msave-restore -fno-optimize-strlen -freorder-blocks-algorithm=simple -fno-schedule-insns -fno-inline-small-functions -fno-inline-functions-called-once -mtune=size -mno-small-data-limit=0 -fno-aggressive-loop-optimizations -std=c99 -Wpointer-arith -Wstrict-prototypes -fstack-protector-all -Os -ffunction-sections -fdata-sections -fno-exceptions -fno-short-enums -Wextra -Wall -Wundef -U PRODUCT_CFG_BUILD_TIME -mabi=ilp32 -march=rv32imc -fPIE -std=c99 -c ../../base/iot_hardware/frameworks/wifiiot_lite/src/wifiiot_adc.c -o ./wifiiot_adc.o image

Rewrite: riscv32-unknown-elf-gcc -D_XOPEN_SOURCE=700 -DLOS_COMPILE_LDM -DPRODUCT_USR_SOFT_VER_STR="None" -DCYGPKG_POSIX_SIGNALS -D__ECOS__ -D__RTOS_ -DPRODUCT_CFG_HAVE_FEATURE_SYS_ERR_INFO -D__LITEOS__ -DLIB_CONFIGURABLE -DLOSCFG_SHELL -DLOSCFG_CACHE_STATICS -DCUSTOM_AT_COMMAND -DLOS_CONFIG_IPERF3 -DCMSIS_OS_VER=2 -DSECUREC_ENABLE_SCANF_FILE=0 -DCONFIG_AT_COMMAND -DPRODUCT_CFG_CHIP_VER_STR="Hi3861V100" -DCHIP_VER_Hi3861 -DPRODUCT_CFG_SOFT_VER_STR="Hi3861" -DHI_BOARD_ASIC -DHI_ON_FLASH -DLITEOS_WIFI_IOT_VERSION -D__LITEOS_RISCV__ -I../../utils/native/lite/include -I../../base/iot_hardware/interfaces/kits/wifiiot_lite -I../../base/iot_hardware/hals/wifiiot_lite -I../../vendor/hisi/hi3861/hi3861/include -I../../vendor/hisi/hi3861/hi3861/platform/include -I../../vendor/hisi/hi3861/hi3861/platform/system/include -I../../vendor/hisi/hi3861/hi3861/config -I../../vendor/hisi/hi3861/hi3861/config/nv -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/base/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/arch/risc-v/rv32im -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libm/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libsec/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/wpa_supplicant-2.7/src/common -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/plat/riscv -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/kernel/extended/runstop -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/posix/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/linux/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/lwip_sack/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/arch/generic -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/musl/arch/riscv32 -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/hw/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/nuttx/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/config -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/user -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/plat -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/targets/hi3861v100/extend/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/arch -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/components/lib/libc/bionic/libm -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/shell/include -I../../vendor/hisi/hi3861/hi3861/platform/os/Huawei_LiteOS/net/telnet/include -nostdlib -fno-common -fno-builtin -fno-strict-aliasing -fsigned-char -Werror -falign-functions=2 -msave-restore -fno-optimize-strlen -freorder-blocks-algorithm=simple -fno-schedule-insns -fno-inline-small-functions -fno-inline-functions-called-once -mtune=size -mno-small-data-limit=0 -fno-aggressive-loop-optimizations -std=c99 -Wpointer-arith -Wstrict-prototypes -fstack-protector-all -Os -ffunction-sections -fdata-sections -fno-exceptions -fno-short-enums -Wextra -Wall -Wundef -U PRODUCT_CFG_BUILD_TIME -mabi=ilp32 -march=rv32imc -fPIE -std=c99 -c ../../base/iot_hardware/frameworks/wifiiot_lite/src/wifiiot_adc.c -o ./wifiiot_adc.o
