Nuitka 替換shardlib 路徑
看了幾篇文章只有找到這個 https://www.fournoas.com/posts/nuitka-inject-custom-c-code-at-compile-time/ 像這篇文章有透過暫停的方式去介入 nuitka 編譯過程，但是這方法是改不動我們要做的事情，不過也大概知道 nuitka 的過程是什麼 然後嘗試用ld preload方式去替換shardlib ,但發現在編譯完的binary 的 shardlib 引用太少了，大部分還是透過 dlopen 去載入 shardlib，那麼在實際要變成一個產品的話又有需要要嘗試改動 nuitka 載入 dynamic shared library 的路徑怎麼辦呢，來研究一下 先假設你要編譯的source code為
source code
test.py
import matplotlib
import mymodule
myclass = mymodule.MyClass1()
mymodule.function2()
import math
print(math.nan == math.nan)
print(float('nan') == float('nan'))
print(math.isnan(math.nan))
print(math.isnan(float('nan')))
nuitka command
nuitka --standalone --onefile --show-memory --show-progress --static-libpython=yes --nofollow-imports --output-dir=out --mingw64 ./test.py
nuitka編譯後目錄下會產生out/test.build , out/test.dist 可以發現 out/test.dist 透過ldd 裡面跟編譯後的目錄下那麼多.so 對應不起來
ldd testcase
linux-vdso.so.1 (0x00007ffdf4de7000)
libdl.so.2 => /lib/x86_64-linux-gnu/libdl.so.2 (0x00007fbf6c226000)
libm.so.6 => /lib/x86_64-linux-gnu/libm.so.6 (0x00007fbf6c0d7000)
libpthread.so.0 => /lib/x86_64-linux-gnu/libpthread.so.0 (0x00007fbf6c0b4000)
libutil.so.1 => /lib/x86_64-linux-gnu/libutil.so.1 (0x00007fbf6c0af000)
librt.so.1 => /lib/x86_64-linux-gnu/librt.so.1 (0x00007fbf6c0a5000)
libc.so.6 => /lib/x86_64-linux-gnu/libc.so.6 (0x00007fbf6beb3000)
/lib64/ld-linux-x86-64.so.2 (0x00007fbf6c23f000)
那大概可以得知就是他們載入 shard lib 是透過動態載入 dlopen 這邊先處理編譯時期的shardlib 那麼已經知道都是會有一個起始點 scons 去編譯，找到了Backend.scons
/usr/local/lib/python3.9/site-packages/nuitka/build/Backend.scons
# Set load libpython from binary directory default
if env.gcc_mode and not isMacOS() and not os.name == "nt" and not module_mode:
if env.standalone_mode:
rpath = "$$ORIGIN"
else:
rpath = python_lib_path
local_lib_path = os.path.join(os.getcwd(), 'lib')
print(local_lib_path)
env.Append(LINKFLAGS=["-Wl,-R,'%s'" % rpath, "-Wl,-L'%s'" % local_lib_path])
# The rpath is no longer used unless we do this on modern Linux. The
# option name is not very revealing, but basically without this, the
# rpath in the binary will be ignored by the loader.
if "linux" in sys.platform:
env.Append(LINKFLAGS=["-Wl,--disable-new-dtags","-Wl,-R,'%s'" % rpath, "-Wl,-L'%s'" % local_lib_path])
這邊僅限於一些需要編譯時期已經加入的shard lib， 然後解決完編譯時期的shard lib 在找看看從動態的呼叫 dlopen 載入 shard lib 的程式碼在哪。 那麼去到source code grep -r "dlopen" /usr/local/lib/python3.9/site-packages/nuitka
搜尋看看
[root@328103204ad4 out]# grep -r "dlopen" /usr/local/lib/python3.9/site-packages/nuitka
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: // spell-checker: ignore getdlopenflags,dlopenflags
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: static PyObject *dlopenflags_object = NULL;
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: if (dlopenflags_object == NULL) {
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: dlopenflags_object = CALL_FUNCTION_NO_ARGS(tstate, Nuitka_SysGetObject("getdlopenflags"));
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: int dlopenflags = PyInt_AsLong(dlopenflags_object);
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: PySys_WriteStderr("import %s # dlopen(\"%s\", %x);\n", full_name, filename, dlopenflags);
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: void *handle = dlopen(filename, dlopenflags);
/usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c: error = "unknown dlopen() error";
vim /usr/local/lib/python3.9/site-packages/nuitka/build/static_src/MetaPathBasedLoader.c
定位到這邊可以看到說，估計也是透過 void *handle = dlopen(filename, dlopenflags); 載入 .so 那麼就往上追
// This code would work for all versions, we are avoiding access to interpreter
// structure internals of 3.8 or higher.
// spell-checker: ignore getdlopenflags,dlopenflags
static PyObject *dlopenflags_object = NULL;
if (dlopenflags_object == NULL) {
dlopenflags_object = CALL_FUNCTION_NO_ARGS(tstate, Nuitka_SysGetObject("getdlopenflags"));
}
int dlopenflags = PyInt_AsLong(dlopenflags_object);
if (isVerbose()) {
PySys_WriteStderr("import %s # dlopen(\"%s\", %x);\n", full_name, filename, dlopenflags);
}
void *handle = dlopen(filename, dlopenflags);
往上追後 callIntoExtensionModule 這支function 是負責載入單一shardlib 的c function
#ifdef _WIN32
static PyObject *callIntoExtensionModule(PyThreadState *tstate, char const *full_name, const wchar_t *filename) {
#else
static PyObject *callIntoExtensionModule(PyThreadState *tstate, char const *full_name, const char *filename) {
#endif
透過一陣printf 大法 找到 filename 為我們要載入的lib 位置
// Pointers to bytecode data.
static char **_bytecode_data = NULL;
static PyObject *loadModule(PyThreadState *tstate, PyObject *module, PyObject *module_name,
struct Nuitka_MetaPathBasedLoaderEntry const *entry) {
#ifdef _NUITKA_STANDALONE
if ((entry->flags & NUITKA_EXTENSION_MODULE_FLAG) != 0) {
// Append the the entry name from full path module name with dots,
// and translate these into directory separators.
#ifdef _WIN32
wchar_t filename[MAXPATHLEN + 1] = {0};
appendWStringSafeW(filename, getBinaryDirectoryWideChars(true), sizeof(filename) / sizeof(wchar_t));
appendCharSafeW(filename, SEP, sizeof(filename) / sizeof(wchar_t));
appendModuleNameAsPathW(filename, entry->name, sizeof(filename) / sizeof(wchar_t));
appendStringSafeW(filename, ".pyd", sizeof(filename) / sizeof(wchar_t));
#else
char filename[MAXPATHLEN + 1] = {0};
appendStringSafe(filename, getBinaryDirectoryHostEncoded(true), sizeof(filename));
appendCharSafe(filename, SEP, sizeof(filename));
appendModuleNameAsPath(filename, entry->name, sizeof(filename));
appendStringSafe(filename, ".so", sizeof(filename));
printf("%s",filename);
#endif
// Set "__spec__" and "__file__", some modules expect it early.
setModuleFileValue(tstate, module, filename);
#if PYTHON_VERSION >= 0x350
PyObject *spec_value =
createModuleSpec(tstate, module_name, LOOKUP_ATTRIBUTE(tstate, module, const_str_plain___file__), false);
SET_ATTRIBUTE(tstate, module, const_str_plain___spec__, spec_value);
#endif
callIntoExtensionModule(tstate, entry->name, filename);
} else
#endif
if ((entry->flags & NUITKA_BYTECODE_FLAG) != 0) {
// TODO: Do node use marshal, but our own stuff, once we
// can do code objects too.
PyCodeObject *code_object =
(PyCodeObject *)PyMarshal_ReadObjectFromString(_bytecode_data[entry->bytecode_index], entry->bytecode_size);
// TODO: Probably a bit harsh reaction.
if (unlikely(code_object == NULL)) {
PyErr_Print();
abort();
}
return loadModuleFromCodeObject(module, code_object, entry->name, (entry->flags & NUITKA_PACKAGE_FLAG) != 0);
} else {
assert((entry->flags & NUITKA_EXTENSION_MODULE_FLAG) == 0);
assert(entry->python_initfunc);
{
NUITKA_MAY_BE_UNUSED bool res = Nuitka_SetModule(module_name, module);
assert(res != false);
}
// Run the compiled module code, we get the module returned.
#if PYTHON_VERSION < 0x300
NUITKA_MAY_BE_UNUSED
#endif
PyObject *result = entry->python_initfunc(tstate, module, entry);
CHECK_OBJECT_X(result);
#if PYTHON_VERSION >= 0x300
if (likely(result != NULL)) {
_fixupSpecAttribute(tstate, result);
}
#endif
}
if (unlikely(HAS_ERROR_OCCURRED(tstate))) {
return NULL;
}
if (isVerbose()) {
PySys_WriteStderr("Loaded %s\n", entry->name);
}
return Nuitka_GetModule(tstate, module_name);
}
所以我們是在這邊組合 .so 的路徑
#else
char filename[MAXPATHLEN + 1] = {0};
appendStringSafe(filename, getBinaryDirectoryHostEncoded(true), sizeof(filename));
appendCharSafe(filename, SEP, sizeof(filename));
appendModuleNameAsPath(filename, entry->name, sizeof(filename));
appendStringSafe(filename, ".so", sizeof(filename));
printf("%s",filename);
#endif
來加料一下
#ifdef _WIN32
wchar_t filename[MAXPATHLEN + 1] = {0};
appendWStringSafeW(filename, getBinaryDirectoryWideChars(true), sizeof(filename) / sizeof(wchar_t));
appendCharSafeW(filename, SEP, sizeof(filename) / sizeof(wchar_t));
appendModuleNameAsPathW(filename, entry->name, sizeof(filename) / sizeof(wchar_t));
appendStringSafeW(filename, ".pyd", sizeof(filename) / sizeof(wchar_t));
#else
char filename[MAXPATHLEN + 1] = {0};
appendStringSafe(filename, getBinaryDirectoryHostEncoded(true), sizeof(filename));
if (strlen(filename) + strlen("lib") < sizeof(filename)) {
strcat( filename, "/lib");
} else {
printf("Not enough space in 'filename' to append 'lib'\n");
}
appendCharSafe(filename, SEP, sizeof(filename));
appendModuleNameAsPath(filename, entry->name, sizeof(filename));
appendStringSafe(filename, ".so", sizeof(filename));
#endif
printf("%s\n",filename);
那麼預設 我們編譯出來的test.bin Nuitka build command
nuitka --standalone --onefile --show-memory --show-progress --static-libpython=yes --nofollow-imports --output-dir=out --mingw64 ./test.py
我們查看out 目錄下的 test.dist 裡面應該有一個test.bin
test.dist
先看一下目錄結構
out/test.dist/
_codecs_cn.so _codecs_iso2022.so _codecs_kr.so _datetime.so _pickle.so _sha512.so binascii.so test.bin zlib.so
_codecs_hk.so _codecs_jp.so _codecs_tw.so _multibytecodec.so _random.so _struct.so math.so unicodedata.so
直接執行
out/test.dist/test.bin
qweeeeeeeeeeeeeeeeeeeee/shared_data/out/test.dist/test.bin
qweeeeeeeeeeeeeeeeeeeee/shared_data/out/test.dist/test.bin
inspect
ast
contextlib
_collections_abc
collections
heapq
keyword
operator
reprlib
functools
enum
dis
opcode
collections.abc
importlib.machinery
linecache
os
stat
posixpath
genericpath
tokenize
re
sre_compile
sre_parse
sre_constants
copyreg
token
__main__
math
/shared_data/Tuning_automation/out/test.dist/lib/math.so
/shared_data/Tuning_automation/out/test.dist/lib/math.so
Traceback (most recent call last):
File "/shared_data/Tuning_automation/out/test.dist/test.py", line 1, in <module>
ImportError: /shared_data/Tuning_automation/out/test.dist/lib/math.so: cannot open shared object file: No such file or directory
/shared_data/Tuning_automation/out/test.dist/lib/math.so: cannot open shared object file: No such file or directory

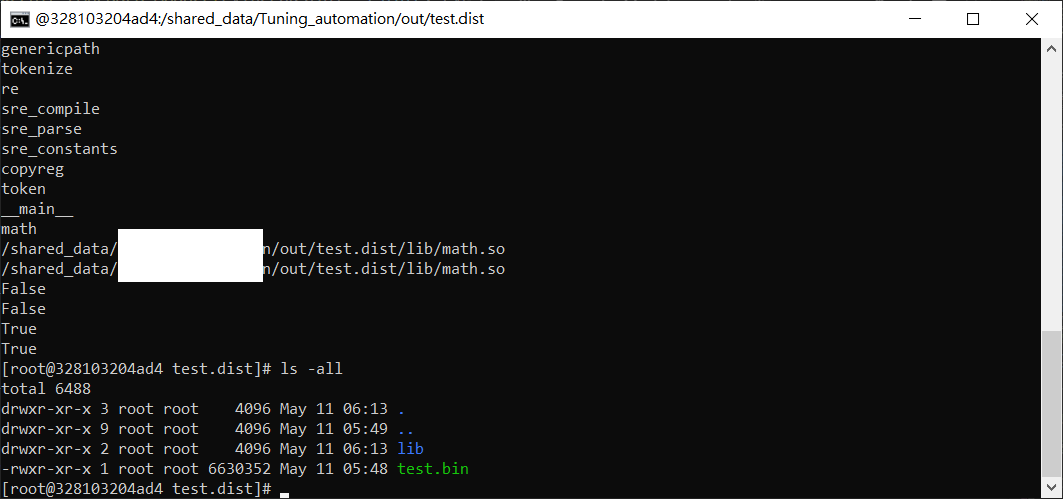

這邊可以發現路徑已經多一層lib 也算替換成功 那麼接下來就是 將dist 裡面的.so 往裡面移動一層到lib
[root@328103204ad4 test.dist]# ls -all
total 6488
drwxr-xr-x 3 root root 4096 May 11 06:13 .
drwxr-xr-x 9 root root 4096 May 11 05:49 ..
drwxr-xr-x 2 root root 4096 May 11 06:13 lib
-rwxr-xr-x 1 root root 6630352 May 11 05:48 test.bin
到這邊就算改完了，目錄下就蠻乾淨的
額外加碼，假設在 python 需要載入 package 的 module 的話你的目錄結構會變這樣
PIL test.bin contourpy kiwisolver lib markupsafe matplotlib numpy pandas pytz
source code
test.py
import sys
import pytz
from datetime import datetime
# Create a time zone-aware datetime object in UTC
utc_now = datetime.utcnow().replace(tzinfo=pytz.utc)
# Convert to a specific time zone (e.g., New York)
local_timezone = pytz.timezone('America/New_York')
local_time = utc_now.astimezone(local_timezone)
print(f'UTC Time: {utc_now}')
print(f'Local Time (New York): {local_time}')
nuitka command
nuitka --standalone --onefile --show-memory --show-progress --static-libpython=yes --nofollow-imports --output-dir=out --mingw64 ./test.py
以我們的情況來說，剛剛我們動的是最後 link time 和 c code，所以只有動到 動態和靜態的 shardlib 的路徑，所以，一些有關於 nuitka 架構，比如說 python 轉成 c++後，他是怎麼 import 對應到 c++ dlopen載入 lib 這情況我不清楚，這會導致架構上的東西是沒辦法動的，也就是載入so 確實都移動到 lib裡面了，但是最外層還是要保留一些package的folder 目錄結構，裡面是 nuitka 原本的架構設計，所以可能要維持他 python package 的目錄結構，但是裡面的.so都可以刪除. 所以lib 裡面 和 根目錄都有 python package name的資料夾，差別在 ./lib 裡面的是有 .so 的
root list
ex.matplotlib裡面只有一些package預設的module 設定檔案
PIL test.bin contourpy kiwisolver lib markupsafe matplotlib numpy pandas pytz
lib list
ex.matplotlib裡面有 .so
PIL contourpy kiwisolver markupsafe matplotlib numpy pandas pytz
total list
實際開發環境的 tree ,可以看到 matplotlib目錄下的差別
tree -L 3
.
├── PIL
├── test.bin
├── contourpy
├── kiwisolver
├── lib
│ ├── PIL
│ │ ├── _imaging.so
│ │ ├── _imagingcms.so
│ │ ├── _imagingmath.so
│ │ └── _webp.so
│ ├── _asyncio.so
│ ├── _blake2.so
│ ├── _bz2.so
│ ├── _codecs_cn.so
│ ├── _codecs_hk.so
│ ├── _codecs_iso2022.so
│ ├── _codecs_jp.so
│ ├── _codecs_kr.so
│ ├── _codecs_tw.so
│ ├── _contextvars.so
│ ├── _csv.so
│ ├── _ctypes.so
│ ├── _datetime.so
│ ├── _decimal.so
│ ├── _elementtree.so
│ ├── _hashlib.so
│ ├── _heapq.so
│ ├── _md5.so
│ ├── _multibytecodec.so
│ ├── _multiprocessing.so
│ ├── _opcode.so
│ ├── _pickle.so
│ ├── _posixshmem.so
│ ├── _posixsubprocess.so
│ ├── _queue.so
│ ├── _random.so
│ ├── _sha1.so
│ ├── _sha256.so
│ ├── _sha3.so
│ ├── _sha512.so
│ ├── _socket.so
│ ├── _ssl.so
│ ├── _statistics.so
│ ├── _struct.so
│ ├── array.so
│ ├── binascii.so
│ ├── contourpy
│ │ └── _contourpy.so
│ ├── grp.so
│ ├── kiwisolver
│ │ ├── _cext.cpython-39-x86_64-linux-gnu.so
│ │ └── _cext.so
│ ├── libXau-00ec42fe.so.6.0.0
│ ├── libbz2.so.1
│ ├── libcrypto.so.1.1
│ ├── libffi.so.6
│ ├── libgfortran-040039e1.so.5.0.0
│ ├── libjpeg-cec335f2.so.62.4.0
│ ├── liblcms2-8d000061.so.2.0.16
│ ├── liblzma-d1e41b3a.so.5.4.5
│ ├── libopenblas64_p-r0-0cf96a72.3.23.dev.so
│ ├── libopenjp2-98a646ca.so.2.5.0
│ ├── libquadmath-96973f99.so.0.0.0
│ ├── libsharpyuv-652b6057.so.0.0.1
│ ├── libssl.so.1.1
│ ├── libtiff-f683b479.so.6.0.2
│ ├── libwebp-8a0843dd.so.7.1.8
│ ├── libwebpdemux-f9b98349.so.2.0.14
│ ├── libwebpmux-b067bc14.so.3.0.13
│ ├── libxcb-ac5351d8.so.1.1.0
│ ├── markupsafe
│ │ └── _speedups.so
│ ├── math.so
│ ├── matplotlib
│ │ ├── _c_internal_utils.so
│ │ ├── _image.so
│ │ ├── _path.so
│ │ ├── _qhull.so
│ │ ├── _tri.so
│ │ ├── backends
│ │ ├── ft2font.so
│ │ └── mpl-data
│ ├── mmap.so
│ ├── numpy
│ │ ├── core
│ │ ├── fft
│ │ ├── linalg
│ │ └── random
│ ├── pandas
│ │ ├── _libs
│ │ └── io
│ ├── pyexpat.so
│ ├── pytz
│ │ └── zoneinfo
│ ├── select.so
│ ├── termios.so
│ ├── unicodedata.so
│ └── zlib.so
├── markupsafe
├── matplotlib
│ ├── backends
│ └── mpl-data
│ ├── fonts
│ ├── images
│ ├── kpsewhich.lua
│ ├── matplotlibrc
│ ├── plot_directive
│ └── stylelib
├── numpy
│ ├── core
│ ├── fft
│ ├── linalg
│ └── random
├── pandas
│ ├── _libs
│ │ ├── tslibs
│ │ └── window
│ └── io
│ └── formats
└── pytz
└── zoneinfo
├── Africa
├── America
├── Antarctica
├── Arctic
├── Asia
├── Atlantic
├── Australia
├── Brazil
├── CET
├── CST6CDT
├── Canada
├── Chile
├── Cuba
├── EET
├── EST
├── EST5EDT
├── Egypt
├── Eire
├── Etc
├── Europe
├── Factory
├── GB
├── GB-Eire
├── GMT
├── GMT+0
├── GMT-0
├── GMT0
├── Greenwich
├── HST
├── Hongkong
├── Iceland
├── Indian
├── Iran
├── Israel
├── Jamaica
├── Japan
├── Kwajalein
├── Libya
├── MET
├── MST
├── MST7MDT
├── Mexico
├── NZ
├── NZ-CHAT
├── Navajo
├── PRC
├── PST8PDT
├── Pacific
├── Poland
├── Portugal
├── ROC
├── ROK
├── Singapore
├── Turkey
├── UCT
├── US
├── UTC
├── Universal
├── W-SU
├── WET
├── Zulu
├── iso3166.tab
├── leapseconds
├── tzdata.zi
├── zone.tab
├── zone1970.tab
└── zonenow.tab
最外層目錄最終就變成比較不會那麼亂了
tree -L 1
.
├── PIL
├── pytz
├── contourpy
├── kiwisolver
├── lib
├── markupsafe
├── matplotlib
├── numpy
├── pandas
└── test.bin
nuitka add option "--onefile"
這邊有找到官方的option result=subprocess.run([f"{args.pp}", "-m", "nuitka", "--standalone","--onefile", "--show-memory","--show-progress","--static-libpython=yes", "--nofollow-imports", "--output-dir=out","--mingw64","./custom.py"]) 假設加上 onfile的情況下，nuitka可以先將依些shard lib 打包到成一個binary runtime 在解壓縮 temp資料夾 Example python code
import sys
import os
current_directory = os.path.dirname(os.path.abspath(__file__))
lib_directory = os.path.join(current_directory, 'lib')
sys.path = [lib_directory]
print("sys.path:", sys.path)
try:
import pytz
print("Custom pytz module loaded from:", pytz.__file__)
except ImportError as e:
print("Failed to import pytz:", e)
from datetime import datetime
# Create a time zone-aware datetime object in UTC
utc_now = datetime.utcnow().replace(tzinfo=pytz.utc)
# Convert to a specific time zone (e.g., New York)
local_timezone = pytz.timezone('America/New_York')
local_time = utc_now.astimezone(local_timezone)
print(f'UTC Time: {utc_now}')
print(f'Local Time (New York): {local_time}')
在linux
sys.path: ['/tmp/onefile_61131_1715670463_304893']
Custom pytz module loaded from: /tmp/onefile_61131_1715670463_304893/pytz/__init__.py
UTC Time: 2024-05-14 07:07:43.516114+00:00
Local Time (New York): 2024-05-14 03:07:43.516114-04:00
和
sys.path: ['C:\\Users\\rex603\\AppData\\Local\\Temp\\ONEFIL~1']
Custom pytz module loaded from: C:\Users\rex603\AppData\Local\Temp\ONEFIL~1\lib\pytz\__init__.py
UTC Time: 2024-05-14 06:29:22.284119+00:00
Local Time (New York): 2024-05-14 02:29:22.284119-04:00
這跟根據ONEFIL 去搜一下source code 這樣可以看到 /usr/local/lib/python3.9/site-packages/nuitka/Options.py C:\Users\rex603\AppData\Local\Programs\Python\Python39\Lib\site-packages\nuitka\Options.py 可以改動他解壓縮的路徑
def getOnefileTempDirSpec():
"""*str* = ``--onefile-tempdir-spec``"""
result = (
options.onefile_tempdir_spec or "{TEMP}" + os.path.sep + "onefile_{PID}_{TIME}"
)
result = "./lib"
# This changes the '/' to '\' on Windows at least.
return os.path.normpath(result)
[root@5a1c68e4daa2 lib]# ls
_blake2.so _codecs_jp.so _ctypes.so _md5.so _random.so _socket.so custom_genetic_algorithm.bin libssl.so.1.1 zlib.so
_bz2.so _codecs_kr.so _datetime.so _multibytecodec.so _sha1.so _statistics.so grp.so math.so
_codecs_cn.so _codecs_tw.so _decimal.so _opcode.so _sha256.so _struct.so libbz2.so.1 pytz
_codecs_hk.so _contextvars.so _hashlib.so _pickle.so _sha3.so array.so libcrypto.so.1.1 select.so
_codecs_iso2022.so _csv.so _heapq.so _posixsubprocess.so _sha512.so binascii.so libffi.so.6 unicodedata.so
[root@5a1c68e4daa2 dist]# ls
test lib
這樣打包後的binaty 就可以解壓縮到使用者根目錄lib這樣，要指定其他目錄也可以。
Comments
