Pygame_openGL(第一人稱視角)
---

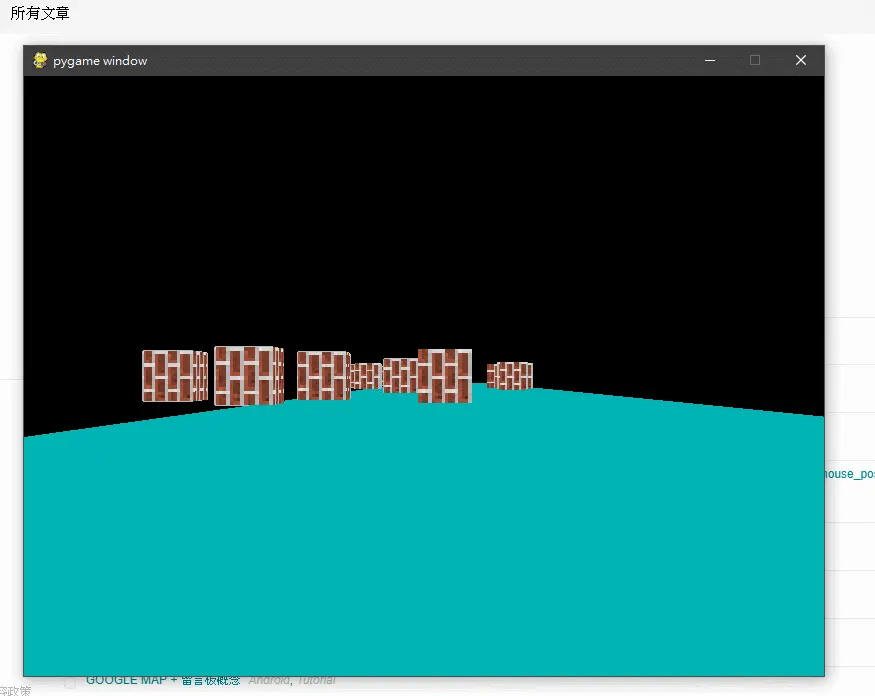

修正後順便來鋪個地板，在移動方面可能還需要再更動
目前只有擺頭而已，移動的話可能還需要再研究， 找第一人稱視角真久，原理竟然是到線性代數最後幾章 opengl-tutorial參考公式 我們先來上扣以後再來理解原理 會覺得閃爍是版本問題沒有雙衝緩衝，pyopengl第一人稱資源少的可憐，恐怖fps?! 還是我沒找到?
if( buff==False):
buff= True
mypos_buff=direction
這邊我以為我腦袋有問題，看能不能避開閃爍，結果還是不行，y軸上下會增加卡頓，
import pygame
from pygame.locals import *
import math
from OpenGL.GL import *
from OpenGL.GLUT import *
from OpenGL.GLU import *
import numpy as np
import sys
import random
tmp=0.5
vertices = (
(1, -1, -1),
(1, 1, -1),
(-1, 1, -1),
(-1, -1, -1),
(1, -1, 1),
(1, 1, 1),
(-1, -1, 1),
(-1, 1, 1)
)
vertices2 = (
(-1.0,-1.0,1.0),
(1.0,-1.0,1.0),
(1.0,1.0,1.0),
(-1.0,1.0,1.0),
(-1.0,-1.0,-1.0),
(-1.0,1.0,-1.0),
(1.0,1.0,-1.0),
(1.0,-1.0,-1.0),
(-1.0,1.0,-1.0),
(-1.0,1.0,1.0),
(1.0,1.0,1.0),
(1.0,1.0,-1.0),
(-1.0,-1.0,-1.0),
(1.0,-1.0,-1.0),
(1.0,-1.0,1.0),
(-1.0,-1.0,1.0),
(1.0,-1.0,-1.0),
(1.0,1.0,-1.0),
(1.0,1.0,1.0),
(1.0,-1.0,1.0),
(-1.0,-1.0,-1.0),
(-1.0,-1.0,1.0),
(-1.0,1.0,1.0),
(-1.0,1.0,-1.0),
)
edges = (
(0,1),
(0,3),
(0,4),
(2,1),
(2,3),
(2,7),
(6,3),
(6,4),
(6,7),
(5,1),
(5,4),
(5,7)
)
surfaces = (
(0,1,2,3),
(3,2,7,6),
(6,7,5,4),
(4,5,1,0),
(1,5,7,2),
(4,0,3,6)
)
colors = (
(1,0,0),
(0,1,0),
(0,0,1),
(0,1,0),
(1,1,1),
(0,1,1),
(1,0,0),
(0,1,0),
(0,0,1),
(1,0,0),
(1,1,1),
(0,1,1),
)
txcolors = (
(1.0,0.0),
(0.0,1.0),
(1.0,1.0),
(1.0,0.0),
(0.0,0.0),
)
ground_surfaces = (0,1,2,3)
ground_vertices = (
(-10,-1,50),
(10,-1,50),
(-10,-1,-300),
(10,-1,-300),
)
def set_vertices(max_distance, min_distance = -20):
# x_value_change = random.randrange(-10,10)
# y_value_change = random.randrange(-10,10)
# z_value_change = random.randrange(-1*max_distance,min_distance)
x_value_change =random.randrange(-10,10)
y_value_change = 0
z_value_change =random.randrange(-1*max_distance,min_distance)
new_vertices = []
for vert in vertices:
new_vert = []
new_x = vert[0] + x_value_change
new_y = vert[1] + y_value_change
new_z = vert[2] + z_value_change
new_vert.append(new_x)
new_vert.append(new_y)
new_vert.append(new_z)
new_vertices.append(new_vert)
return new_vertices
def loadTexture():
textureSurface = pygame.image.load('brick.png')
textureData = pygame.image.tostring(textureSurface, "RGBA", 1)
width = textureSurface.get_width()
height = textureSurface.get_height()
glEnable(GL_DEPTH_TEST);
#glEnable(GL_CULL_FACE);
glEnable(GL_TEXTURE_2D)
texid = glGenTextures(1)
glBindTexture(GL_TEXTURE_2D, texid)
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, width, height,
0, GL_RGBA, GL_UNSIGNED_BYTE, textureData)
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT)
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT)
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST)
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST)
return texid
def DrawText( string):
# 循环处理字符串
for c in string:
# 输出文字
glutBitmapCharacter(GLUT_BITMAP_8_BY_13, ord(c))
def Ground():
glBegin(GL_QUADS)
x = 0
for vertex in ground_vertices:
x+=1
glColor3fv((0,1,1))
glVertex3fv(vertex)
glEnd()
def Cube(vertices):
# glBegin(GL_QUADS)
# for surface in surfaces:
# x = 0
# for vertex in surface:
# x+=1
# glColor3fv(colors[x])
# glVertex3fv(vertices[vertex])
# glEnd()
glBegin(GL_QUADS)
for surface in surfaces:
x = 0
for vertex in surface:
x+=1
# glTexCoord2fv(0.0,0.0)
# glVertex3fv(-1.0,-1.0,1.0)
glTexCoord2fv(txcolors[x])
#glColor3fv(colors[x])
glVertex3fv(vertices[vertex])
glEnd()
glBegin(GL_LINES)
for edge in edges:
glColor3fv((1, 1, 1))
for vertex in edge:
glVertex3fv(vertices[vertex])
glEnd()
pygame.init()
glutInit(sys.argv)
glutInit(sys.argv)
display = (800, 600)
screen = pygame.display.set_mode(
display, pygame.DOUBLEBUF | pygame.OPENGL | pygame.OPENGLBLIT)
loadTexture()
max_distance = 100
gluPerspective(45, display[0] / display[1],0.1,max_distance)
#glTranslatef(0.0, 0.0, -20)
#glClearColor(0.0, 0.0, 0.0, 0.0);
horizontalAngle = 3.14
verticalAngle = 0.0
initialFoV = 45.0
speed = 3.0
mouseSpeed = 0.000001
clock = pygame.time.Clock()
myposition=(0,0,0)
cube_dict = {}
#幾個方塊
for x in range(20):
cube_dict[x] =set_vertices(max_distance)
test=0
mypos=np.zeros((3,), dtype=float)
mypos_buff=np.zeros((3,), dtype=float)
up=(0,0,0)
right=(0,0,0)
direction=(0,0,0)
#glutInitDisplayMode (GLUT_DOUBLE | GLUT_RGB);
#glutInitDisplayMode(GLUT_RGBA | GLUT_DOUBLE | GLUT_DEPTH)
buff=False
pygame.mouse.set_visible(False)
x_move = 0
y_move = 0
z_move = 0
glScalef(1.0,1.0,1.0)
while True:
dt = clock.tick(60)
x = glGetDoublev(GL_MODELVIEW_MATRIX)
#glMatrixMode(GL_MODELVIEW);
camera_x = x[3][0]
camera_y = x[3][1]
camera_z = x[3][2]
mypos_ex=(x[2])
#print ( camera_x)
for event in pygame.event.get():
if event.type == pygame.QUIT:
pygame.quit()
sys.exit()
if event.type == pygame.KEYDOWN:
if event.key == pygame.K_LEFT:
# glTranslatef(-0.5,0,0)
#gluPerspective(0, display[0] / display[1],view,0)
# for x in range (1,500,1):
# print (x)
# pygame.time.wait(10)
# gluLoo
# kAt (0,1,0,0,0,-20, 0, 1.0,0);
x_move =0.5
#glTranslatef(-0.5, 0,0)
glTranslatef(x_move,0,z_move)
if event.key == pygame.K_RIGHT:
#glTranslatef(0.5,0,0)
x_move =-0.5
glTranslatef(x_move,0,z_move)
#gluPerspective(0, display[0] / display[1], view, 0)
if event.key == pygame.K_UP:
#glTranslatef(0,0.5,0)
#glTranslatef(0,0,0.5)
z_move=0.5
glTranslatef(x_move,0,z_move)
if event.key == pygame.K_DOWN:
#glTranslatef(0,0,0)
z_move=-0.5
#glTranslatef(0,-0.5,0)
#glTranslatef(0,0,-0.5)
glTranslatef(x_move,0,z_move)
if event.type == pygame.MOUSEBUTTONDOWN:
if event.button == 4:
tmp=tmp+0.5
glTranslatef(0,0,0.5)
if event.button == 5:
tmp=tmp-0.5
glTranslatef(0,0,-0.5)
if event.type == pygame.MOUSEMOTION:
# glfwSetMousePos(1024/2, 768/2);
mouse_position = pygame.mouse.get_pos()
pygame.mouse.set_pos(800/2,600/2)
horizontalAngle += mouseSpeed * dt * float((800/2) -mouse_position[0])
verticalAngle += mouseSpeed * dt * float( (600/2) -mouse_position[1] )
# print (math.sin(horizontalAngle - 3.14/2.0))
direction=(math.cos(verticalAngle) * math.sin(horizontalAngle),math.sin(verticalAngle),math.cos(verticalAngle) * math.cos(horizontalAngle))
right=( math.sin(horizontalAngle - 3.14/4.0),0, math.cos(horizontalAngle - 3.14/4.0))
#print (math.sin(horizontalAngle - 3.14/4.0))
up=np.cross(right, direction)
#tmp=np.matrix(mypos,direction)
pd= np.array(mypos)+np.array(direction)
#print (tmp)
#print (mypos*direction*dt*0.5 )
# glRotate(0,1,0,0)
# glRotate(pd[0] * dt*10,0,1,0)
# glRotate(0,0,0,1)
# print (pd[0])
print (mypos)
gluLookAt (mypos[0],mypos[1],mypos[2], pd[0],pd[1],pd[2],up[0] , up[1],up[2]);
#glTranslatef(mypos[0],mypos[1],mypos[2])
glClear(GL_COLOR_BUFFER_BIT|GL_COLOR_BUFFER_BIT)
#horizontalAngle=0
#verticalAngle =0
if event.type == pygame.KEYUP:
if event.key == pygame.K_LEFT or event.key == pygame.K_RIGHT:
mypos[0]+=x_move*-1
x_move = 0
if event.key == pygame.K_UP or event.key == pygame.K_DOWN:
mypos[2]+= z_move*-1
z_move = 0
print (mypos)
print (z_move)
print (x_move)
# print ( mypos)
# print (mypos_ex)
# print (direction)
# print (direction[0]*dt*x_move)
# print (x[2])
# print ('sssssssssssssssssssssssss')
# x=np.array(mypos_ex)
# y=np.array(direction)
# print (x+y)
#pygame.time.wait(60)
# glRotate(0,1,0,0)
# glRotate(1,0,1,0)
# glRotate(0,0,0,1)
# glTranslatef(x_move,0,z_move)
#print (camera_x)
#mypos[0]+=x_move*dt* 0.000001
#print (x_move*dt)
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT)
for each_cube in cube_dict:
Cube(cube_dict[each_cube])
Ground()
pygame.display.flip()
緩衝區問題?
---
glutSwapBuffers() 其實這一行就可以解決了，我比較衰挑到3.6版，none沒有這個函式?
移動問題
